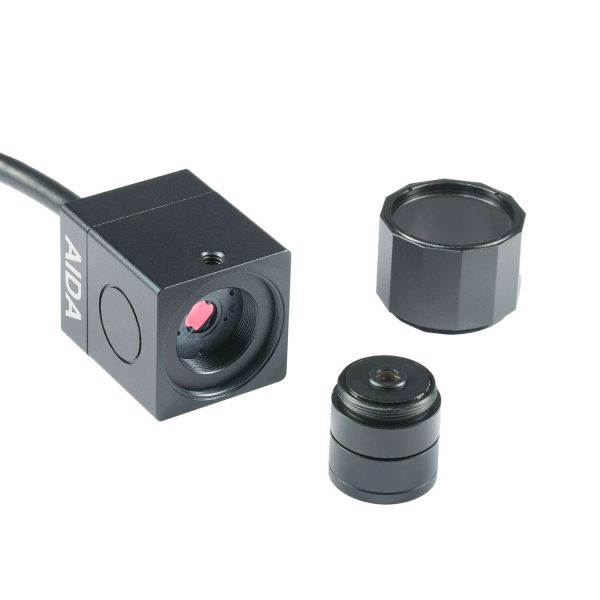

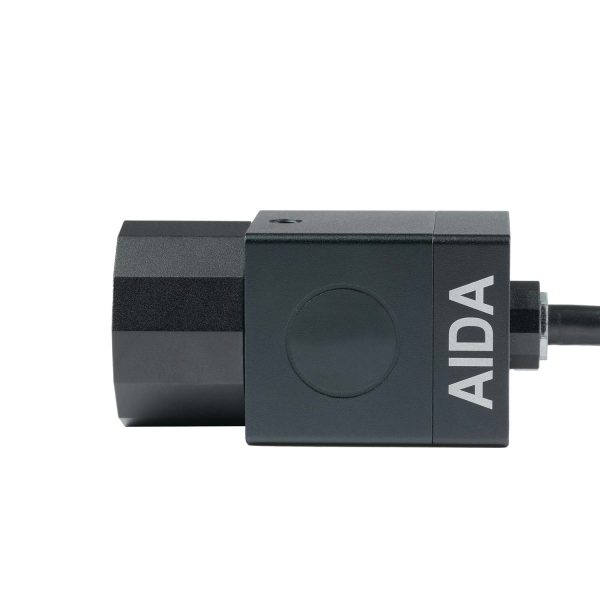

The AIDA Imaging HD-100A-IP67 Weatherproof HDMI Camera is an ultracompact POV camera ideal for outdoor locations and challenging environments where dust, dirt and moisture are present. It’s the ultimate outdoor event camera, whether you’re producing sports, concerts, or even industrial video applications.
Key Features
- IP67 dust-proof and water-proof rated
- Up to Full HD Resolution Video at 60 fps
- C/CS Mount with 4mm Lens Included
- Auto Iris Lens Connector
- HDMI Output
- RS-485 Input via Included Breakout Cable
- Wide Dynamic Range
- Digital Image Stabilization
- 2D/3D Image Noise Reduction
- 2 x 1/4″-20 Threaded Mounting Holes
Specifications
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | H x V: 1920 x 1080 |
| Pixel Size | 2.75 µm (H) x 2.75 µm (V) |
| Resolution | 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Color Space | 4:2:2 (YCbCr) 10-Bit |
| Min Illumination | Day: 0.2 Lux Night: 0.1 Lux Slow Shutter: 0.005 Lux |
| Audio Bit Rate | 16/24/32-Bit |
| Connections | Video Output: 1 x HDMI 1.3a Type A I/O: 1 x 4-Pin (OSD and RS-485) 12V DC Input Audio Input: 1 x 3.5mm TRS (Mic & Line via Breakout Cable) |
| Lens | Lens Mount: C/CS Included: 4mm lens |
| Mount Type | 2 x 1/4″-20 Threaded Hole |
| Power | 6 W at 12 VDC (9 to 15 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 1.53 x 1.53 x 1.99″ / 3.9 x 3.9 x 5.05 cm |
| Weight | 0.39 lbs / 180 g (Camera and Lens) |
