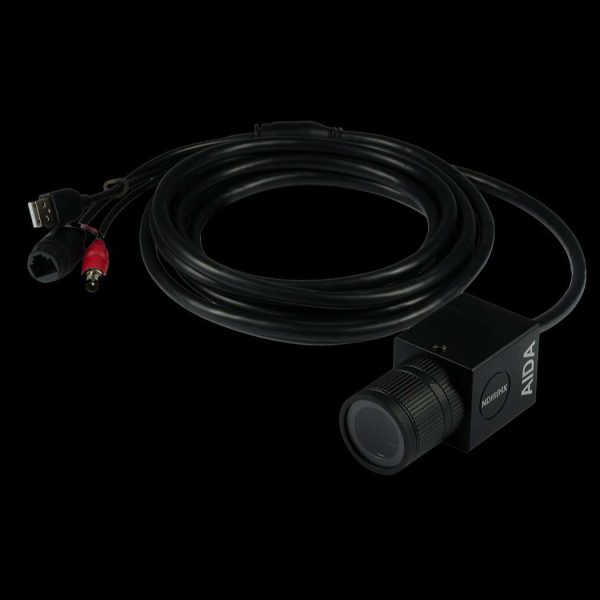

The HD-NDI-VF Varifocal Full HD NDI|HX / IP Streaming Weatherproof POV Camera from AIDA Imaging brings IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. Like the HD-NDI-IP67, the HD-NDI-VF model offers dust and moisture resistance, making it well suited ofr outdoor environments. It outputs variable frame rate IP streaming via RTSP/RTMP and/or NDI|HX with up to 1080p60 resolution. The included varifocal lens offers an FOV range from 90 to 25 degrees.
A 10′ long cable carries both RTSP/RTMP streaming and NDI|HX over a single Ethernet cable, and it supports the VISCA-over-IP control protocol. The camera can be powered using the included power adapter or by using the included PoE dongle on a PoE-supported network with the dongle. It features a C/CS lens mount and comes with a 4mm HD lens pre-installed. NDI|HX is a bidirectional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.
Key Features
- Varifocal zoom lens included
- Compact miniature camera for POV streaming applications in broadcast, education, medical, live production, sports, and other fields
- Weatherproof IP54 rating allows for extra protection against environmental elements
- 3M / 10-foot cable places power, data, and control connections far away from the camera
- Full HD 1/3″ progressive scan CMOS sensor capable of 1080p60 NDI|HX video
- Accessible web UI to stream directly to social media platforms and control image parameters over IP
- Versatile design with top and bottom tripod mounts for unique shot creation
- Suited for outdoor shots and any new or existing NDI|HX setup
- C/CS lens mount
- VISCA-over-IP control support
Specifications
Video
- Image Sensor: 1/3” Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution/Framerate: 1080 60p/59.94/50p/30p/29.97p/25p/24p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p
- Output: IP (NDI|HX/SRT/RTMP/RTSP)
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 – 11,000 K)
Lens
- Lens: C/CS Mount
Standard
- IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
Physical
- Camera Control Protocol: VISCA Over IP
- Operation Temp: 32°F – 104°F
- Cable length: 3 meters / 10 feet
- Dimensions: 73mm x 41mm x 41mm / 2.86” x 1.61” x 1.61” (with default WP cap)
- Weight: 454g / 1 lb (with default WP cap)
- Power: 12VDC (+9 – +15VDC) (PoE Adapter Included)
