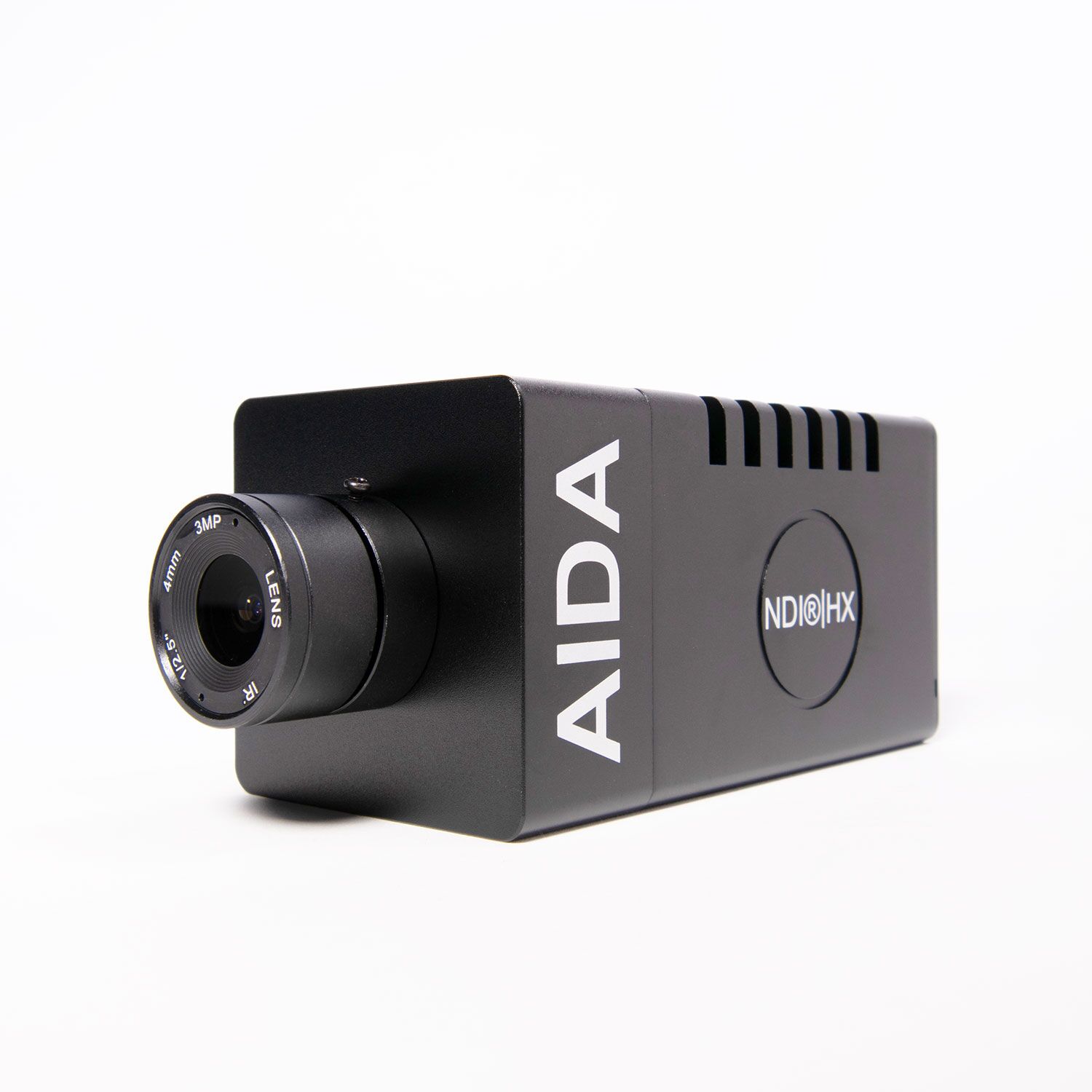

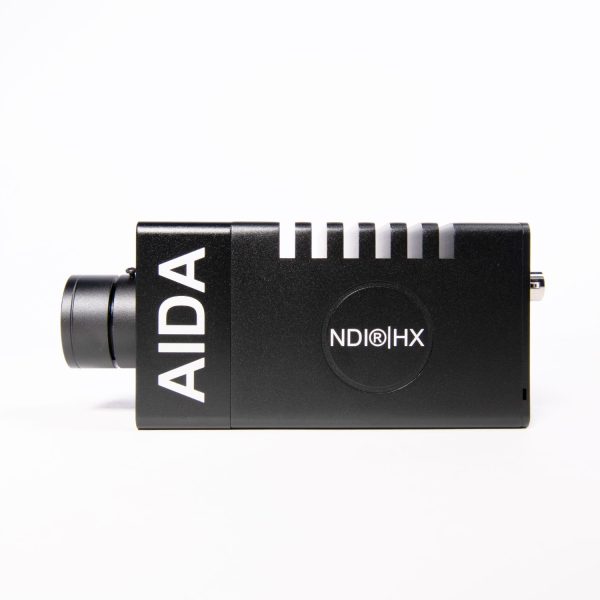

The AIDA HD-NDI-200 brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields.
The miniature camera outputs variable-frame rate IP (RTSP/RTMP) and/or NDI in up to 1080p60 as well as up to a 1080p60 local video preview over HDMI. All three signals can be output at the same time. An RJ45 port carries both IP and NDI over a single Ethernet cable to an Ethernet switch. The default setting is to carry IP only, but NDI can also be switched on in a Web GUI, where all other settings, including the variable frame rates, are assignable. An NDI signal is extracted from the IP signal, and the camera will then be discoverable on your NDI network.
Key Features
- Ultra-compact miniature form for POV streaming applications in broadcast, education, medical, live production, and other fields
- Simultaneous IP (RTSP/RTMP), NDI, and HDMI preview output in up to 1080p60 on all three
- IP and NDI over a single RJ45 output
- 3.5mm audio port for embedding audio into the IP/NDI signals
- Includes a breakout cable with power and RS-485 serial control ports
- C/CS lens mount
- 4mm HD lens
- 4-pin IRIS control port for compatible lenses
- Top and bottom 1/4″-20 mounting threads
Specifications
| Image Sensor | 1/2.8″ Progressive CMOS |
| Effective Pixels | 1920 x 1080 |
| Pixel Size | 2.9 x 2.9 μm (V) |
| Output Resolution | HDMI: 1080p60/59.94/50/30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50/30/29.97/25IP/NDI: 1920 x 1080 at 1 to 60 fps 1280 x 720 at 1 to 60 fps 1024 x 576 at 1 to 60 fps 620 x 360 at 1 to 6 fps |
| Bitrate Control | Variable, Constant |
| Video Bitrate | 1024 to 20,480 kb/s |
| Color Space | 4:2:2 (YCbCr) 10-Bit |
| Lens Mount | C/CS Mount |
| Lens Included | 4mm |

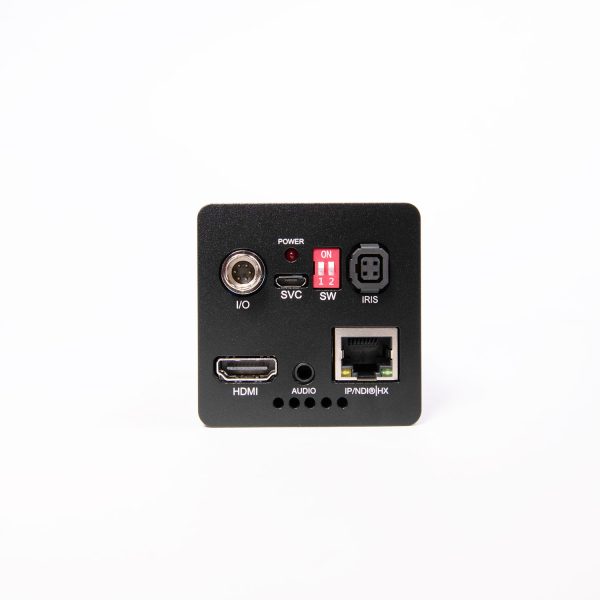

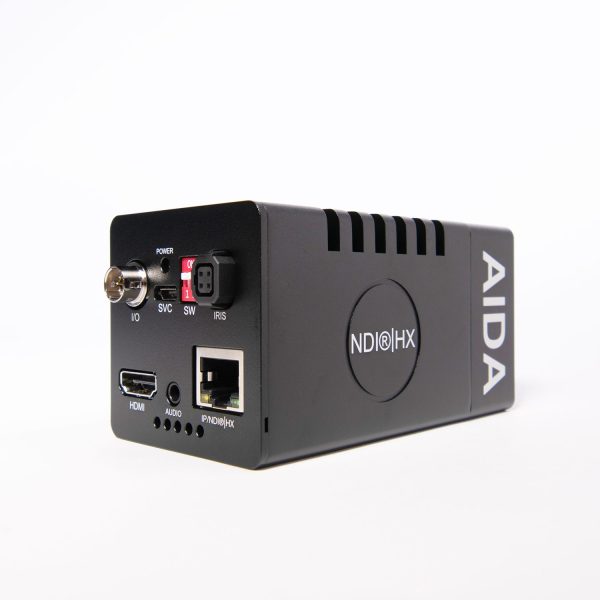

| Output | 1 x HDMI (Preview) 1 x RJ45 (IP/NDI) |
| Audio | 1 x 3.5 mm Input (for IP/NDI) |
| Audio Sample Rate | 16/24/32 Bits |
| Other Ports | Micro-USB (Firmware) 4-Pin IRIS Port |
| Built-In Microphone | No |
| Built-In Speaker | No |
| Breakout Cable Connector | Hirose |
| Breakout Cable | 1 x RS-485 1 x Power |
| Video Encoding | H.264/H.265 |
| Minimum Lux | 0.01 Lux |
| Camera Control | Protocol: IP, RTSP, RTMP, VISCA over IP, NDI|HX2Control: Web UI or OSD Button on Breakout Cable |
| SMPTE Standards | 292M, SMPTE 424M |
| Mount Type | Top: 1/4″-20 Female Bottom: 1/4″-20 Female |
| Power | 12 VDC (9 to 15 V) / POE+ (IEEE802.3at) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 2.1 x 5 x 2.1″ / 5.4 x 12.7 x 5.4 cm |
