Making NDI|HX even smaller…

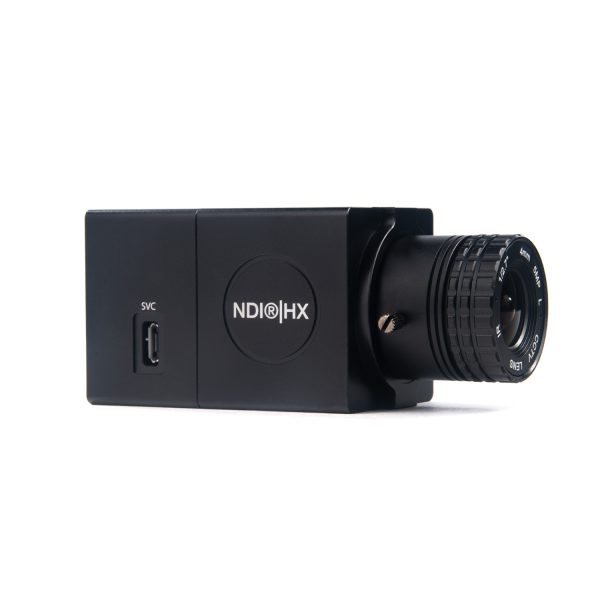

Don’t let the HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our world renowned POV line-up. The Cube boasts a Sony Progressive CMOS sensor, which captures crispy 1080 60p video with ease over SRT, RTSP, RTMP, and of course – NDI|HX. Its interchangeable CS-mount design allows for the flexibility of CS/C mount lenses to capture that exact viewing angle you need. With the affordable price point, its no wonder the HD-NDI-CUBE is a production game-changer.

The camera may look rectangular, but we can assure you it will square up to the competition.

Compare
Add to wishlist
SKU: HD-NDI-CUBE Categories: , , ,
Description

The Compact Full HD NDI|HX/IP Streaming POV Camera from AIDA brings simultaneous IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The compact camera outputs variable-frame rate IP streaming via RTSP/RTMP and/or NDI|HX with up to 1080p60 resolution.

An RJ45 port carries both RTSP/RTMP streaming and NDI|HX over a single Ethernet cable, and it supports the VISCA-over-IP control protocol. The camera can be powered using the included power adapter or by using the included PoE dongle on a PoE-supported network. It features a C/CS lens mount and comes with a 4mm HD lens pre-installed. NDI|HX is a bidirectional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.

Key Features

  • Compact miniature camera for POV streaming applications in broadcast, education, medical, live production, and other fields
  • Full HD 1/3″ progressive scan CMOS sensor capable of 1080p60 NDI|HX video
  • Accessible Web UI to stream directly to social media platforms and control image parameters over IP
  • Versatile design with top and bottom tripod mounts for unique shot creation
  • USB service port for easy network setting adjustments and updates
  • C/CS lens mount
  • 4mm HD lens pre-installed
  • VISCA-over-IP control support

Specifications

VIDEO

  • Image Sensor 1/3” Progressive CMOS
  • Sensor Size 5.346mm x 3.003mm (16.9)
  • Effective Pixels Horizontal: 1920, Vertical: 1080
  • Pixel Size 2.75 μm (H) x 2.75 μm (V)
  • Resolution 1080p, 1080i, 720p
  • Resolution Rate 1080 60p/59.94/50p/30p/29.97p/25p/24p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p
  • Output: IP (NDI|HX/SRT/RTMP/RTSP)
  • Color Space: 4:2:2 (YCbCr) 10bit
  • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
  • White Balance: Auto & Manual (9000 – 11,000 K)

LENS

  • Lens: C/CS Mount (Default 4mm HD Lens)

STANDARD

  • IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

PHYSICAL

  • Camera Control Protocol: VISCA Over IP
  • Operation: Temp 32°F – 104°F
  • Dimension: 86mm x 40mm x 40mm / 3.38” x 1.57” x 1.57” (with default 4mm lens)
  • Weight: 180g / 0.39lbs (with default 4mm lens)
  • Power: 12VDC (+9 – +15VDC) (PoE Adapter Included)
Additional information
Weight 1.5 lbs
Dimensions 12 × 6 × 5 in
Manufacturer Part Number HD-NDI-CUBE
