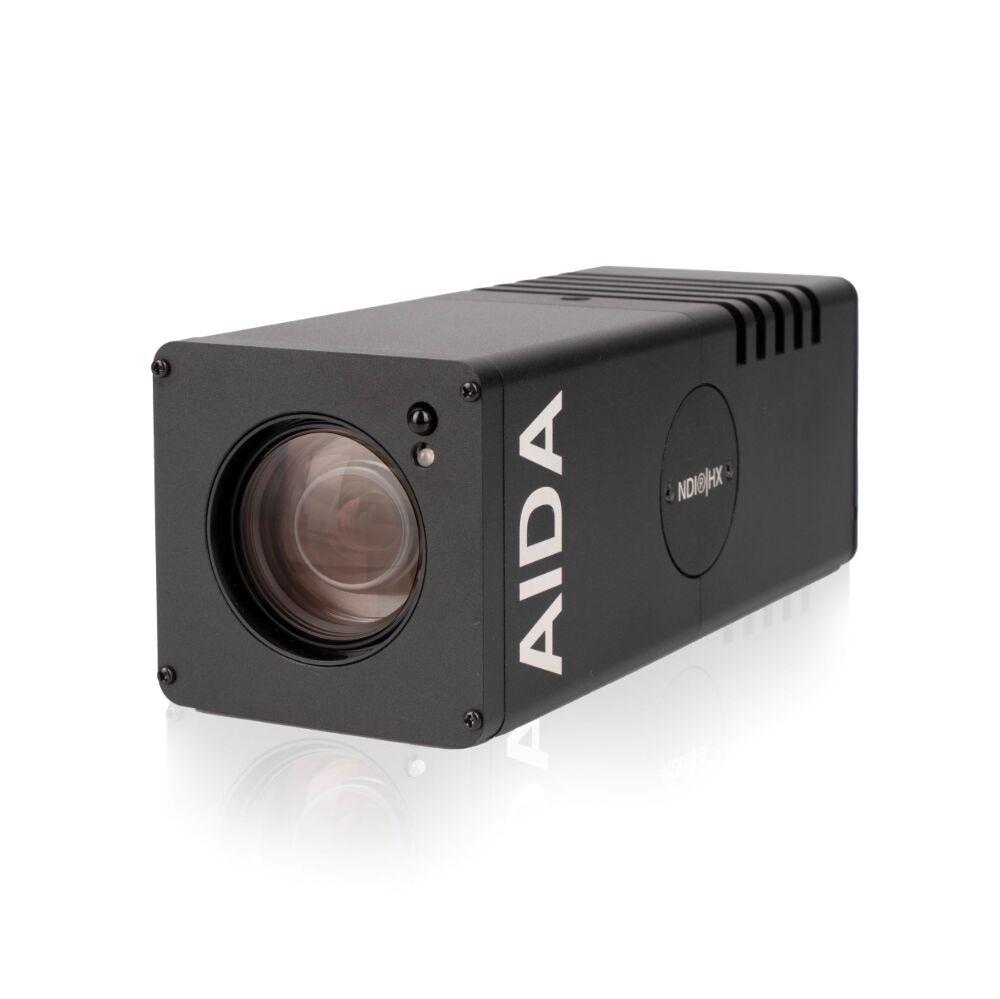

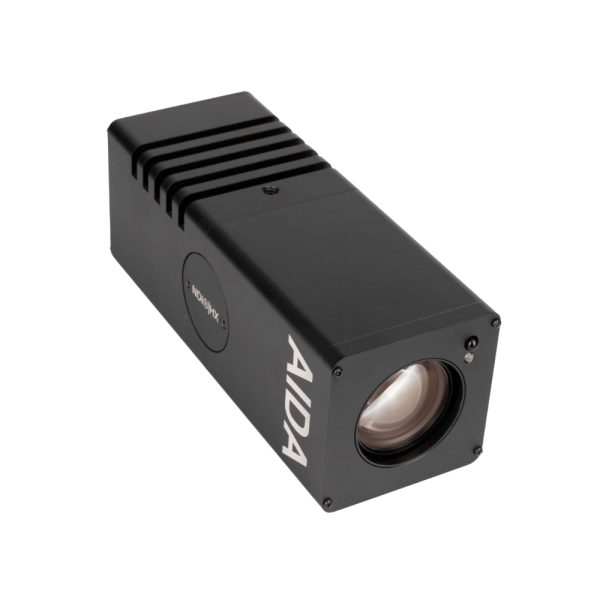

AIDA Imaging FHD NDI®|HX/IP/SRT/HDMI PoE 20X Zoom POV Camera
$695.00
BUY NOWThe ultimate POV NDI®HX one man army
The HD-NDI-X20 gets the best of both worlds in our POV and PTZ world; form-factor, and zoom. The camera boasts a beautiful Full-HD 20x optical zoom module, which outputs crisp 1080 60p video over HDMI, NDI|HX, and IP.
Perfect for integration into your preexisting NDI|HX setup, this Full HD NDI|HX IP POV Camera from AIDA Imaging features an integrated NDI|HX license and full HD HDMI and IP outputs for high-quality footage in broadcast and live event streaming applications. The camera features a 1/2.8″ CMOS image sensor and 20x optical zoom with autofocus to capture clear HD video. A 3.5mm TRS stereo audio input allows you to embed audio into your NDI|HX stream.
Deliver power and RS-485 serial zoom control using the 6-pin I/O port and included breakout cable. Other image parameters are adjustable via WebUI and the included IR Remote. PoE+ support reduces cable runs for power, control, and video over a single cable. Update your camera’s firmware via the micro-USB port. A tally light indicator at the front of the camera lets your talent know when you’re live.
Features at a Glance
- WebUI streams directly to social media platforms, control image parameters via IP
- 20x optical zoom for full HD shots up to 140′
- I/O breakout cable with power and control via serial RS-485
- Relay multi-channel embedded audio via NDI|HX
- PoE+ compatibility reduces cable runs
- Two 1/4″-20 mounting threads
- Integrated front tally light
- Supports UDP|IP, RTSP, RTMP, SRT, VISCA Over IP, and NDI|HX protocols
Specifications
General
| Image Sensor | 1/2.8″ Progressive CMOS |
| Effective Pixels | 1920 x 1080 |
| Pixel Size | 2.9 x 2.9 μm |
| Resolution | 1080p, 1080i, 720p |
| Frame Rates | 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50 |
| Color Space | 4:2:2 YCbCr 10-bit |
| Minimum Illumination | 0.2 lux (Day) 0.1 lux (Night) |
| Zoom | 20x (Optical) |
| Aperture | F1.5 ~ 3.0 |
| Field of View | 61° (Wide) 3.4° (Tele) |
Inputs / Outputs
| USB I/O | 1 x Micro-USB Female Input |
| Video I/O | 1 x HDMI Output 1 x RJ45 Output |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Input |
| Other I/O | 1 x 6-Pin I/O for Breakout Cable (RS-485) |
| Protocols | UDP|IP, RSTP, RTMP, SRT, NDI|HX |
| Audio Sample Rate | 16/24/32-bit |
| Control Protocol | VISCA over IP |
Wireless
| Wi-Fi | Yes |
Power
| Power Source | AC Adapter with Power Brick (Included), PoE |
| DC Input Power | 12 VDC |
| Power Consumption | 24 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
Physical
| Mounting | 2 x 1/4″-20 Thread |
| Color | Black |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 6.7 x 2.5 x 2.5″ / 171 x 64 x 64 mm |
| Weight | 21.2 oz / 600 g |
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 15 × 7 × 7 in |
