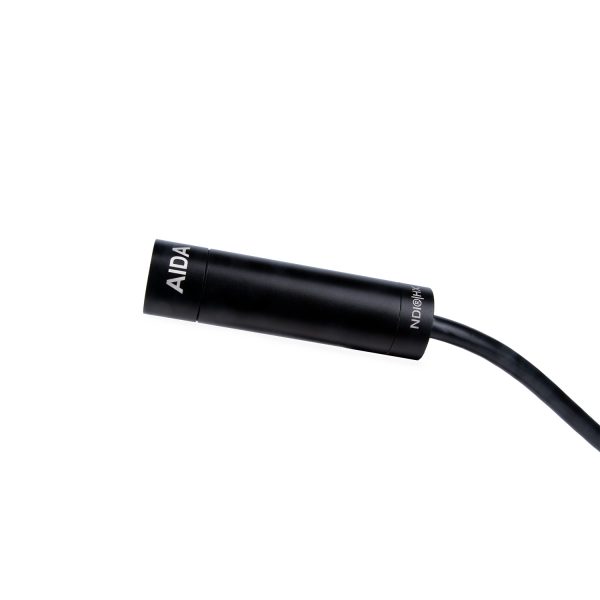

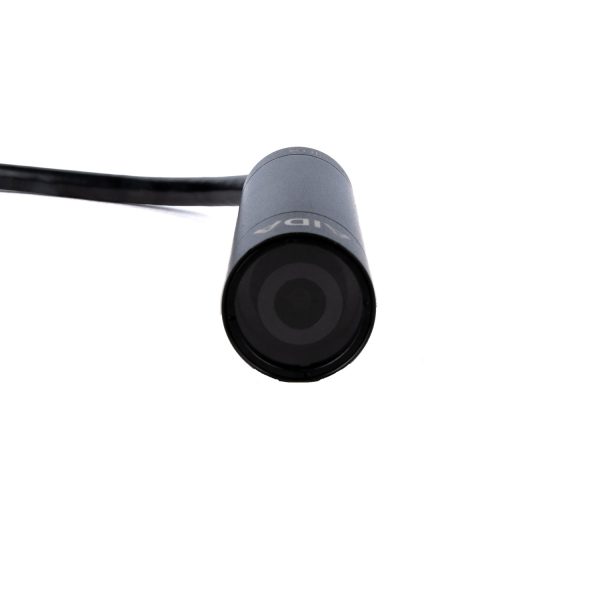

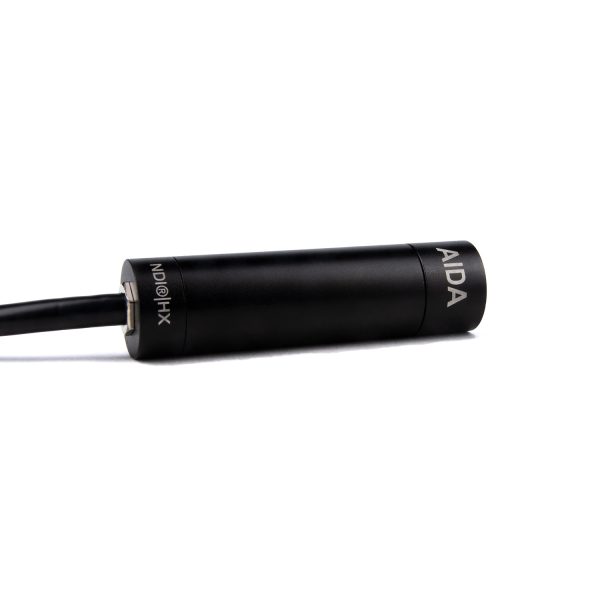

AIDA Imaging FHD NDI®|HX/IP Weatherproof Cylinder POV Camera
$395.00
BUY NOWThe smallest NDI|HX lipstick camera to date!
It really doesn’t get any smaller then this. Introducing the most discreet, NDI|HX camera AIDA has to offer. With its weatherproof barrel design, the HD-NDI-MINI is well protected against dust and moisture. Packed with a progressive CMOS sensor, this little camera can output 1080 60p video through your standard IP protocols, SRT, and most importantly, NDI|HX. With a tripod mount located on the bottom of the camera, there is no place the MINI can’t go.
Pucker up, it’s showtime!
The Full HD NDI|HX IP Weatherproof Cylinder POV Camerafrom AIDA Imaging is a lipstick-style camera that features IP and NDI|HX output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The camera features an M12 lens mount and a wide 4mm M12 lens is included.
The miniature camera outputs variable-frame rate IP (RTSP/RTMP) and/or high-quality, low-latency NDI|HX video up to 1080p60 resolutions. An RJ45 port carries both IP and NDI over a single Ethernet cable to an Ethernet switch. The camera can be remotely controlled via VISCA-over-IP. It is powered using either PoE on a supported network or by using the included dongle and power supply.
Key Features
- Full HD 1/3″ Progressive Scan CMOS sensor capable of 1080p60 NDI|HX video
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP
- Compact design used for discreet, hard-to-reach POV shots unobtainable by larger cameras
- M12 type lens for a small form factor
- Weatherproof rating allows for extra protection against environmental elements
- Barrel design for better weatherproofing and fitment
- Perfectly suited for outdoor shots any new or existing NDI|HX setup
- 4mm HD lens included
- VISCA-over-IP camera control
- Single IP connection with PoE support
- Power supply and dongle included
Specifications
Video
- Image Sensor: 1/3” Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution/Framerate: 1080 60p/59.94/50p/30p/29.97p/25p/24p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p
- Output: IP (NDI|HX/SRT/RTMP/RTSP)
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 – 11,000 K)
Lens
- Lens M12 (Default 4mm HD Lens with WP CAP)
Standard
- IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
Physical
- Camera Control Protocol: VISCA Over IP
- Operation Temp: 32°F – 104°F
- Dimension: 90mm x 24mm 3.5” x 0.94” (with default WP cap)
- Weight: 180g / 0.39lbs (with default WP cap)
- Power: 12VDC (+9 – +15VDC) (PoE Adapter Included)
Weight | 2 lbs |
---|---|
Dimensions | 12 × 6 × 5 in |
Manufacturer Part Number | HD-NDI-MINI |
