The Full HD NDI|HX / IP Streaming Weatherproof POV Camera from AIDA brings IP and NDI output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. This HD-NDI-IP67 model features weatherproofing, so it can be easily integrated into an outdoor environment. It outputs variable frame rate IP streaming via RTSP/RTMP and/or NDI|HX with up to 1080p60 resolution.

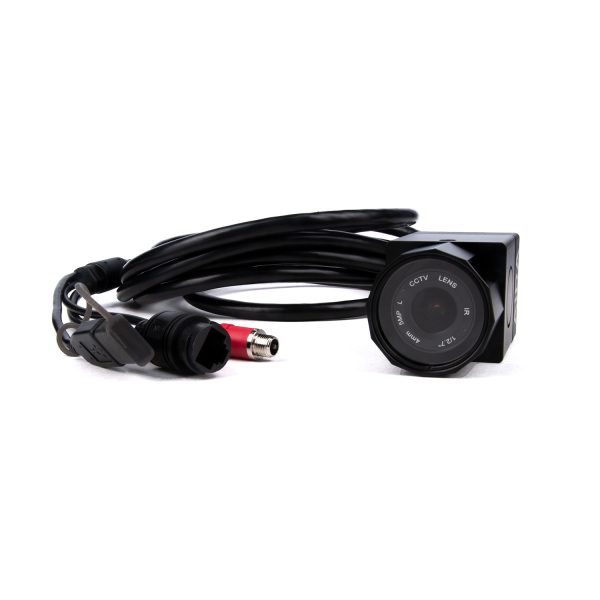

A 10′ long dongle cable carries both RTSP/RTMP streaming and NDI|HX over a single Ethernet cable, and it supports the VISCA-over-IP control protocol. The camera can be powered using the included power adapter or by using the included PoE dongle on a PoE-supported network with the dongle. It features a C/CS lens mount and comes with a 4mm HD lens pre-installed. NDI|HX is a bidirectional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and multichannel audio in real time.
Key Features
- Compact miniature camera for POV streaming applications in broadcast, education, medical, live production, sports, and other fields
- Weatherproof IP67 rating allows for extra protection against environmental elements
- Full HD 1/3″ progressive scan CMOS sensor capable of 1080p60 NDI|HX video
- Accessible web UI to stream directly to social media platforms and control image parameters over IP
- Versatile design with top and bottom tripod mounts for unique shot creation
- Suited for outdoor shots and any new or existing NDI|HX setup
- C/CS lens mount
- 4mm HD lens pre-installed
- VISCA-over-IP control support
Specifications
Video
- Image Sensor: 1/3” Progressive CMOS
- Sensor Size: 5.346mm x 3.003mm (16.9)
- Effective Pixels: Horizontal: 1920, Vertical: 1080
- Pixel Size: 2.75 μm (H) x 2.75 μm (V)
- Resolution: 1080p, 1080i, 720p
- Resolution/Framerate: 1080 60p/59.94/50p/30p/29.97p/25p/24p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p
- Output: IP (NDI|HX/SRT/RTMP/RTSP)
- Color Space: 4:2:2 (YCbCr) 10bit
- Min Illumination: 0.2Lux (day), 0.1Lux (Night)
- White Balance: Auto & Manual (9000 – 11,000 K)
Lens
- Lens: C/CS Mount (Default 4mm HD Lens with CAP)
Standard
- IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX
Physical
- Camera Control Protocol: VISCA Over IP
- Operation Temp: 32°F – 104°F
- Dimensions: 78mm x 41mm x 41mm / 3.07” x 1.61” x 1.61” (with default WP cap)
- Weight: 454g / 1 lb (with default WP cap)
- Power: 12VDC (+9 – +15VDC) (PoE Adapter Included)
