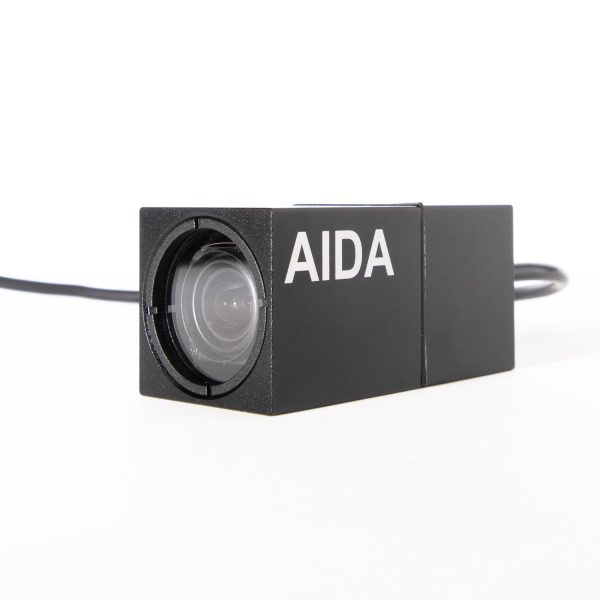

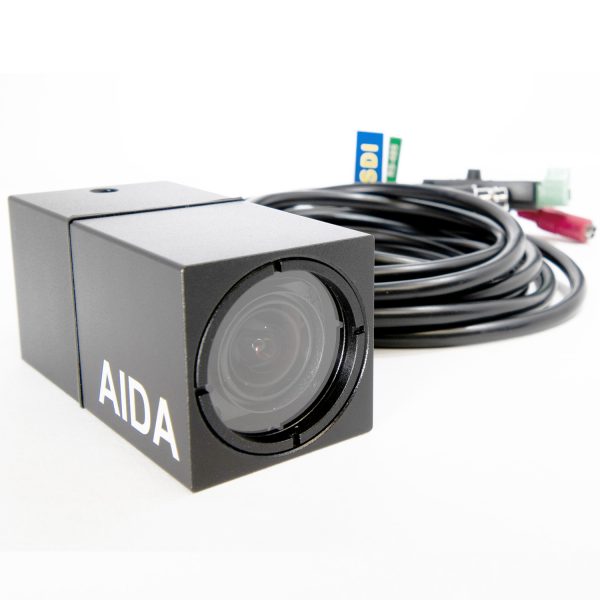

The ultra-compact, weatherproof 3G-SDI 1080p POV Camera with 3.5x Optical Zoom from AIDA Imaging is suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2″ wide by 2″ tall and 3.25″ deep, the camera can fit in a variety of spaces where a small footprint and wide-angle lens are advantageous, such as a dashcam or discretely in the corner of a surgical room. The camera captures up to 1080p60 resolution video, and it features a wide-angle, built-in 3x zoom lens.

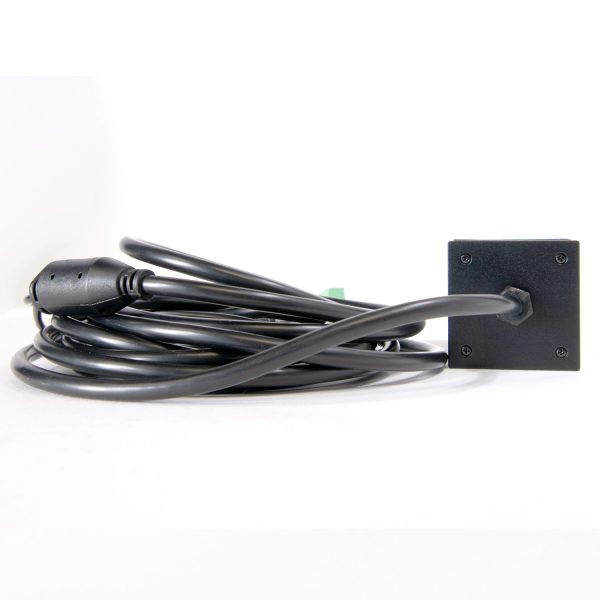

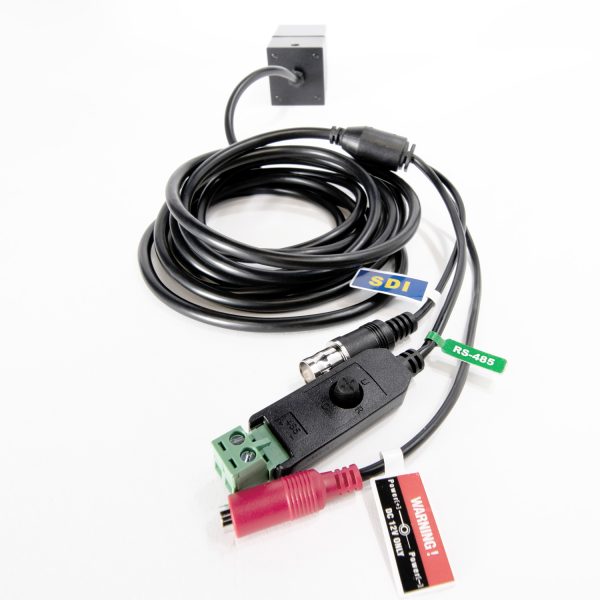

The camera has a 3G-SDI output that allows you to connect it to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An included 10′ long breakout cable provides inputs for power, RS-485, and VISCA serial control. The cable also has an integrated OSD controller on it. This allows you to select and adjust the built-in image tools, such as 2D/3D noise reduction, digital slow shutter, black level compensation, flicker detection as well as selecting the exposure mode. The camera body includes both a power and SDI indicators allowing you to confirm its operation at a glance. Two 1/4″-20 threaded mounting holes, one on the bottom and one on the top, allow you options when mounting the camera.
Key Features
- Capture up to 1080p60 Resolution Video
- IP67 Rated Waterproof for Outdoor Use
- 3.85 to 13.4mm 3x Optical Zoom Lens
- 3G-SDI Output, 78 to 25° Angle of View
- RS-485 Input via 10′ Breakout Cable
- Wide Dynamic Range
- Digital Image Stabilization
- 2D/3D Image Noise Reduction
- 2 x 1/4″-20 Mounting Threads
Specifications
Video
| Image Sensor | 1/3″ Progressive CMOS |
| Sensor Size | Diagonal 7.20mm |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
| Resolution | 1080p / 1080i : 1920 x 1080 720p : 1280 x 720 |
| Resolution | Rate | 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p |
| Output | 3G-SDI |
| Color Space | 4:2:2 (YCbCr) 10bit |
Function
| White Balance | AWB / AE / AF |
| Exposure | Full Auto, Bright, Shutter Priority, Iris Priority, Manual |
| Other | WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection |
Lens
| Lens | 3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele) |
Standard
| SMPTE | SMPTE 292M, SMPTE 424M |
Physical
| Weatherproof Rating | IP67 |
| Camera Control | RS-485 OSD Button |
| Operation Temp | 32°F – 104°F |
| Dimension | 48mm x 48mm x 83.09mm / 1.89″ x 1.89″ x 3.27″ |
| Weight | 140g / 0.30lbs |
| Power | 12 VDC (+9 – +15VDC) |
