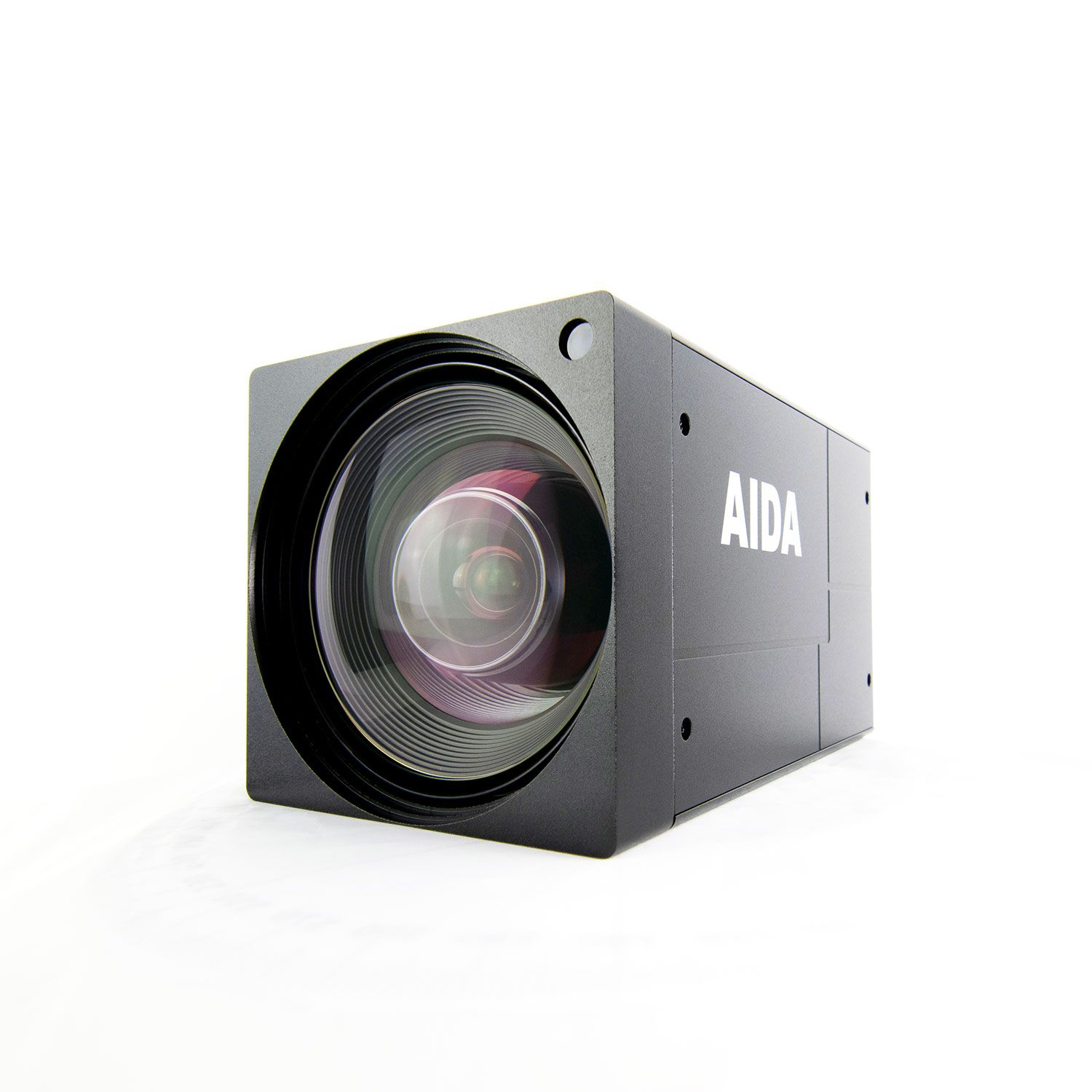

The UHD6G-X12L 4K Professional EFP Camera from AIDA Imaging has a 1/1.7″ progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a 4.2 to 50.04mm zoom lens with an optical zoom of 12x UHD. This camera features sensitivity and low noise under low-light conditions. It is powered by a back-illuminated pixel technology and realizes 4K high-picture quality in the visible light with wide dynamic range.
The UHD6G-X12L is robust in its physical features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI and HDMI 1.4) simultaneous output interfaces. It is designed for versatility, and durability for a smooth integration into any broadcast, professional, or corporate AV environment. This camera includes an OSD control breakout cable and a 12 VDC power supply and socket adapter.
- Wide dynamic range
- Digital image stabilization
- 2D/3D noise reduction
- Digital slow shutter
- Black level
- Compensation
- Flicker detection
- Superb motion-compensated temporal noise-reduction filter for motion video without blurring
- Conforming with SMPTE 292M, 424M, and 2081-10
Video
| Image Sensor | 1/1.7″ progressive CMOS |
| Sensor Size | Diagonal: 9.93 mm (17:9) |
| Effective Pixels | Horizontal: 4096 Vertical: 2160 |
| Pixel Size | Horizontal: 1.85 μm Vertical: 1.85 μm |
| Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Resolution / Frame Rate | 4K (4096 X 2160) at 20/24p 2160p at 30p/29.97p 1080 at 60p/59.94p/50p/30p/29.97p/25p 1080 at 60i/59.94i/50i 720 at 60p/59.94p/50p/30p/25p |

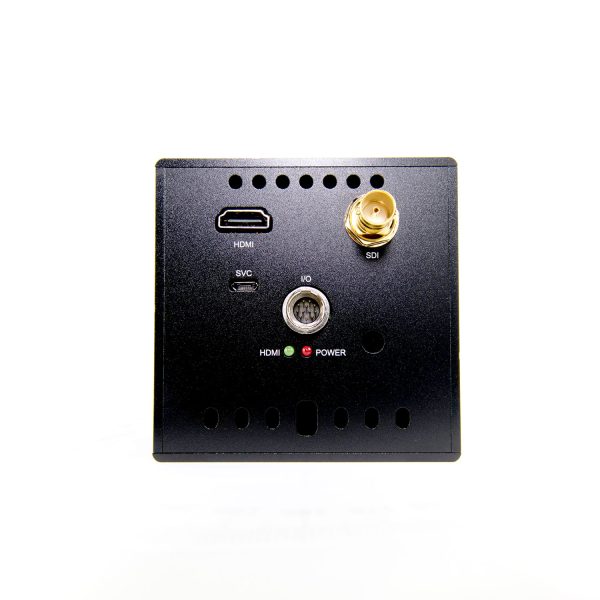

| Output | 1 x HDMI 1.4 port 1 x HD/3G/6G-SDI BNC port |
| Color Space | 4:2:2 (YCbCr) 10-bit |
Function
| White Balance | AWB / AE / AF |
| Exposure | Full auto, bright, shutter priority, iris priority, manual |
Lens
| Lens | 4.2 to 50.04 mm, F1.8 (Wide) – F2.8 (Tele) |
| Optical Zoom | 12x UHD |
| Aperture | f/1.8 (wide) to f/2.8 (tele) |
Audio
| Input | 3.5 mm stereo microphone input Line input over I/O cable |
| Sample Rate | 16/24/32 bits |
Standard
| SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
Physical
| Camera Control | RS-485 OSD Button |
| Power | 12 VDC (9 to 15 VDC) |
| Operation Temperature | 15 to 120°F / -9.4 to 48.9°C |
| Dimensions | 3.55 x 3.55 x 6.17″ / 90.20 x 90.20 x 156.70 mm |
| Weight | 1.3 lb / 600 g |
