The GEN3G-IPC-200 from AIDA Imaging is a 3G-SDI/HDMI Full HD Genlock Camera with 4mm fixed lens. This ultra-compact camera is suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. With the unique Genlock input the GEN3G-IPC-200 can be synchronized with tri-level sync to ensure all cameras are locked to the same time code. With its integrated RJ-45 LAN port, the camera can be controlled remotely using VISCA-over-IP protocol.
Key Features
- Capture up to 1080p60 resolution video

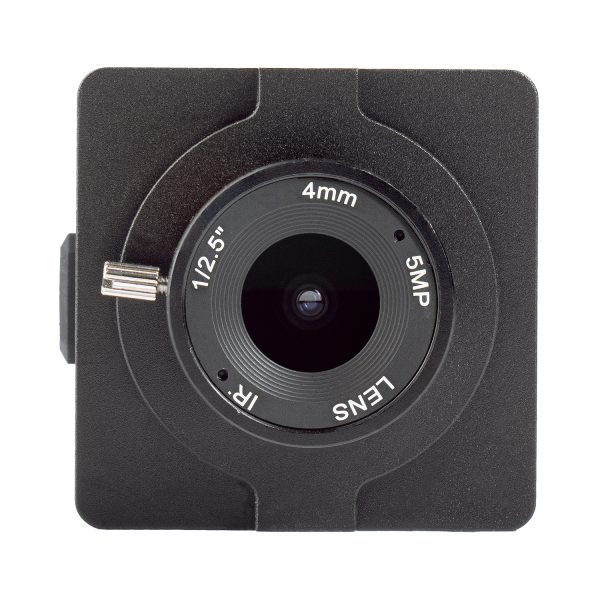

- C/CS mount with 4mm lens included
- 3G-SDI and HDMI Outputs
- Tri-Level Sync Genlock, Noise Reduction
- Wide Dynamic Range, White Balance
- RS-485 Input, Auto-Iris Lens Connector
- Breakout Cable with OSD Controls
- Embedded Audio, 3.5mm Analog Input
- Rugged, Compact Design
Specifications
Video
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Sensor Size | 5.641 x 3.216 mm (16:9) |
| Effective Pixels | 1920 x 1080 |
| Pixel Size | 2.9 x 2.9 µm |
| Video Resolution Supported | 1080p: 60/59.94/50/30/29.97/25/24/23.98 fps 1080i: 60/59.94/50 fps 720p: 60/59.94/50 fps |

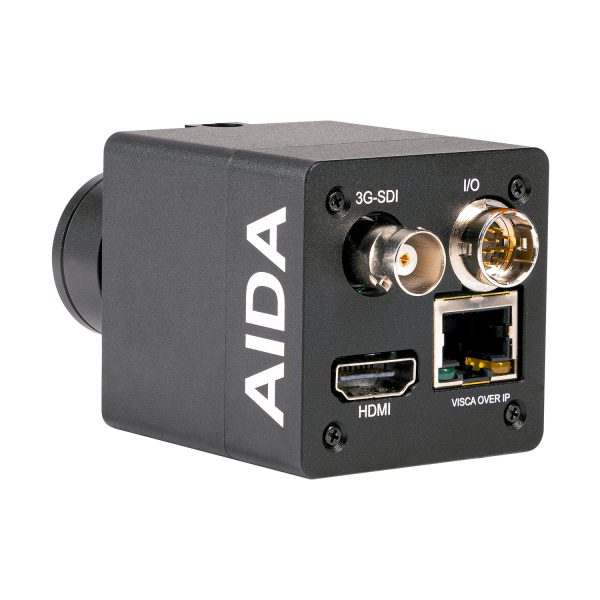

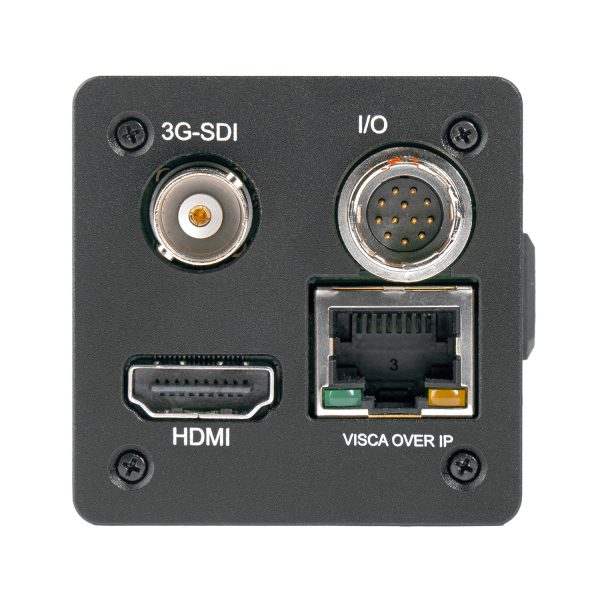

| Video Output Connectors | 1 x BNC, 3G-SDI/HD-SDI 1 x HDMI 1.3a |
| Other I/O | 1 x 4-Pin, Auto-Iris |
| Breakout Cable Connectors | 1 x 3.5 mm, Analog Audio 1 x RS-485, Camera Control 1 x Power |
| Color Space | 4:2:2 YCbCr, 10-Bit |
| Minimum Illumination | 0.2 lux (Day) 0.1 lux (Night) 0.005 lux (Slow Shutter ON) |
| White Balance | 9000K to 11,000K |
| SMPTE | SMPTE 292M, SMPTE 424M |
Lens
| Focal Length | 4mm |
| Lens Mount | C/CS Mount |
Audio
| Sample Rate | 16/24/32-Bit |
General
| Genlock | External Tri-Level Input |
| Controls | RS-485, OSD Button on Breakout Cable |
| Power Source | 12 VDC (9 to 15 VDC), 6 W |
| Operation Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | With Default 4mm Lens: 1.75 x 1.75 x 3.50″ / 44.45 x 44.45 x 89.90 mm |
| Weight | With Default 4mm Lens: 0.37 lbs / 170 g |
