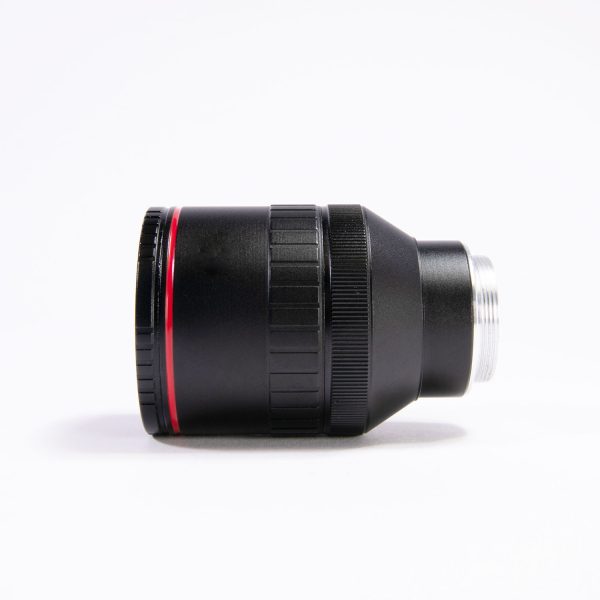

2.8mm-12mm Varifocal Mega-Pixel Lens
The CS-Mount 2.8-12mm Varifocal 3 Megapixel Lens from AIDA Imaging is optimized for use with Full HD AIDA cameras that have 1/3″ CMOS sensors, and is compatible with 3rd-party CS-mount cameras with a 1/2.7″ or 1/3″ sensor. The compact lens features a 2.8 to 12mm focal length with manual focus and offers a 6 to 60° field of view. The iris is also manually adjustable to a maximum aperture of f/1.4.
Specifications:
| Lens Mount | CS |
| Sensor Compatibility | 1/2.7″, 1/3″ CMOS |
| Focal Length | 2.8 to 12mm |
| Angle of View | 1/3″ Sensor Horizontal: 6 to 60° |
| Focus Type | Manual |
| Iris Type | Manual |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions (ø x L) | 1.85 x 2.72″ / 4.7 x 6.9 cm |
| Weight | 0.14 oz / 4 g |
