Sometimes, Micro Imaging requires Macro Solutions!
Compact POV camera with HDMI and 3G-SDI outputs and 10X optical zoom lens
The HD3G-IPC-MX10 from AIDA Imaging is a compact camera that delivers sharp, reliable imaging and offers VISCA over IP for easy remote control across the network. PoE+ is supported via the included adapter cable for simplified power and data management. A 10x optical zoom provides crisp close-ups without sacrificing quality, with uncompressed 1080p60 output available through HDMI and 3G-SDI. A 49mm front thread offers added flexibility for macro lenses or ND filters when closer detail or exposure control is needed.
Key Features
- 1080p 1/2.8” Progressive Scan CMOS sensor capable of capturing up to 60fps over 3G-SDI and HDMI
- Supports VISCA over IP for easy remote camera control across a network.
- Built-in 10x optical zoom delivers detailed close-ups without image loss.
- Compact design with PoE+ support via included adapter cable for simplified power and data setup.

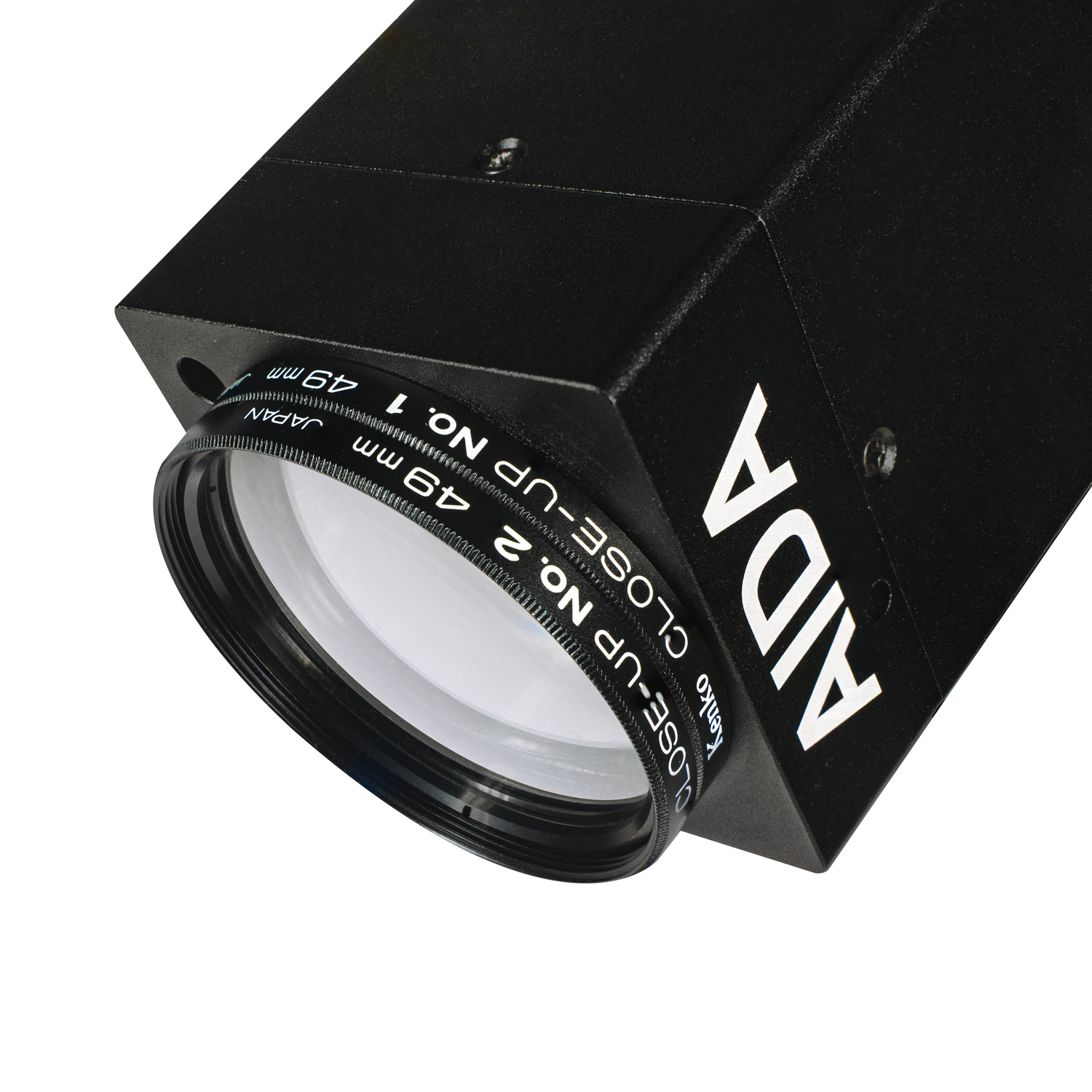

- Front-mounted 49mm filter thread supports optional ND filters and macro lenses for creative flexibility.
- Smooth, low-noise imaging optimized for low-light environments with wide dynamic range.

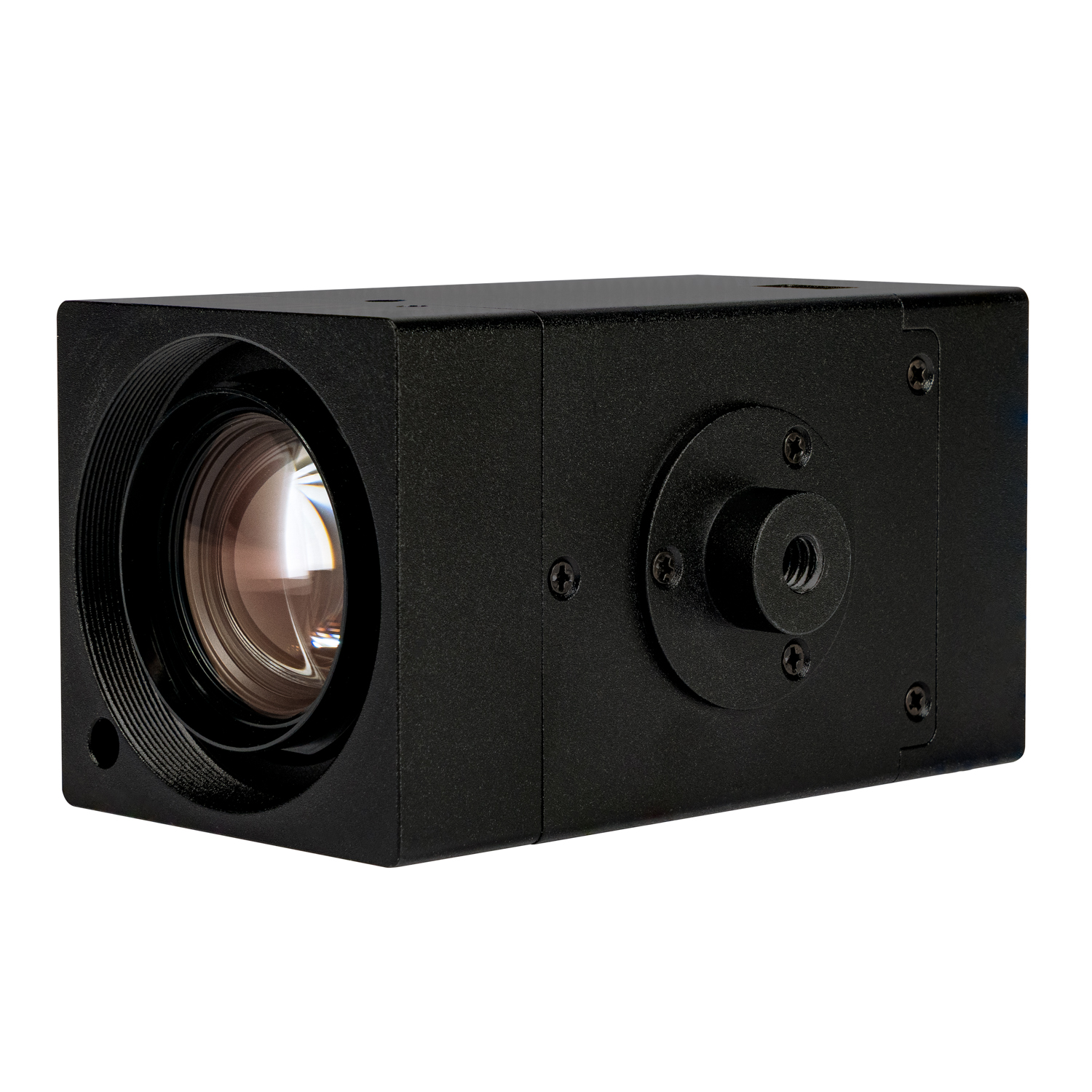

- Rugged and versatile form factor with 1/4”-20 mounting thread for easy integration into any setup.
Specifications
|
Video
|
|
|---|---|
| Image Sensor | 1/2.8” Progressive CMOS |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.9 μm (H) × 2.9 μm (V) |
| Resolution | 1080p, 1080i, 720p |
| Resolution Rate | 1080 60p/59.94/50p/30p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p |

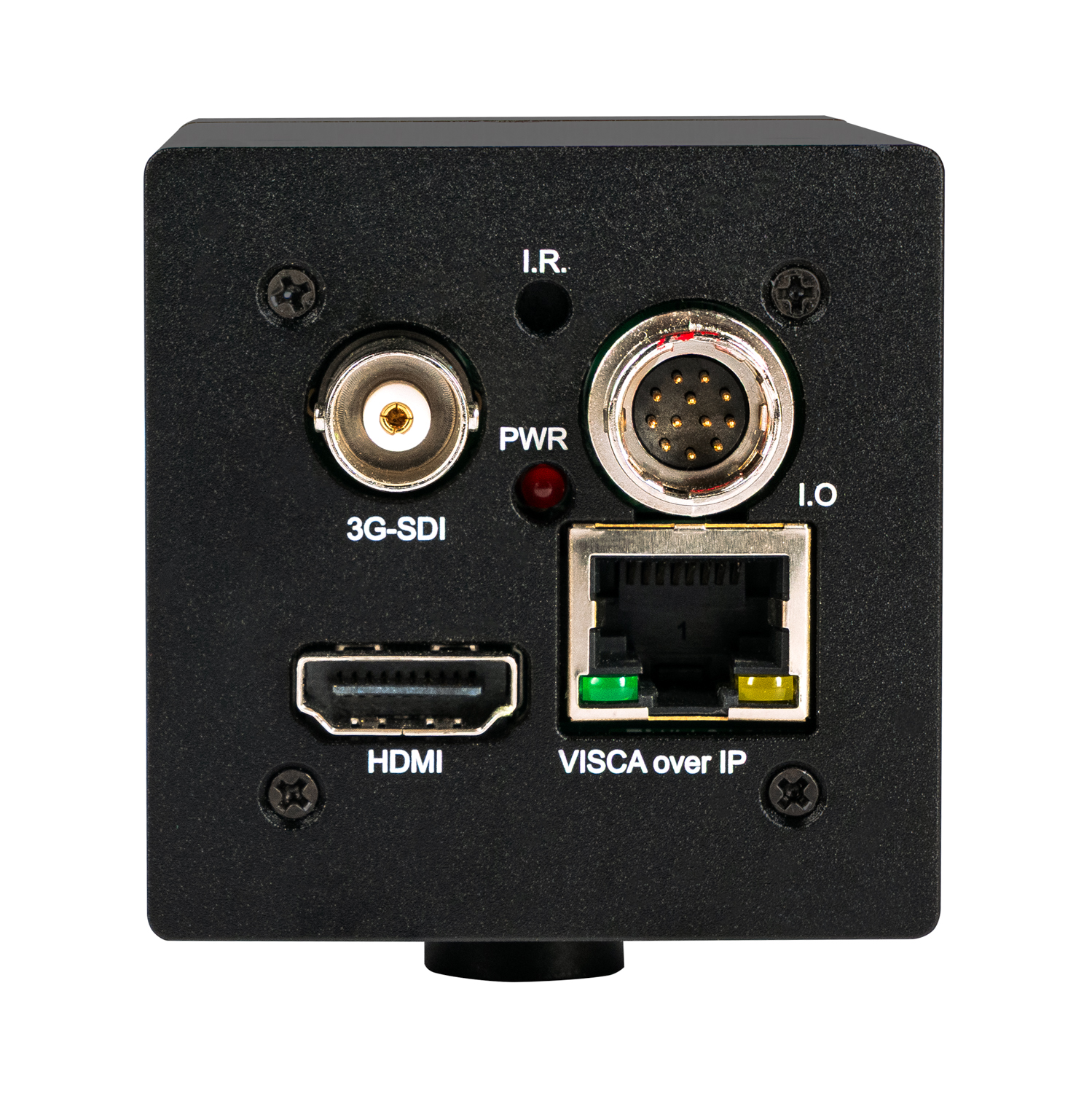

| Output | 3G-SDI / HDMI |
| Color Space | 4:2:2 (YCbCr) 10-bit |
| Min Illumination | 0.2 Lux (Day), 0.1 Lux (Night) |
| White Balance | Auto & Manual (9000–11,000 K) |
|
Lens
|
|
| Module | 10X Optical Zoom Module F1.5~F3.0 |
| Focal Length | 4.5~47mm |
| FOV | 61~6° |
|
Audio
|
|
| Audio Embed | Embed over SDI ONLY |
| Input | 3.5 mm Line Input |
|
Standard
|
|
| Control Protocol | Serial VISCA, VISCA over IP |
|
Physical
|
|
| Camera Control Protocol | RS485, RJ45 |
| Operation Temp | 32°F – 104°F |
| Dimension | 95 mm × 54 mm × 54 mm 3.74” × 2.13” × 2.13” |
| Weight | 453 g / 1 lb |
| Power | 12 VDC (+9 – +15 VDC), PoE+ with Adapter |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 7 × 3 in |
