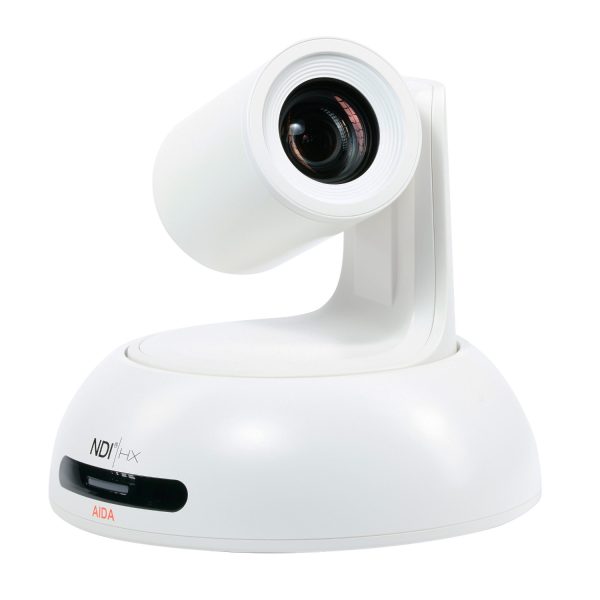

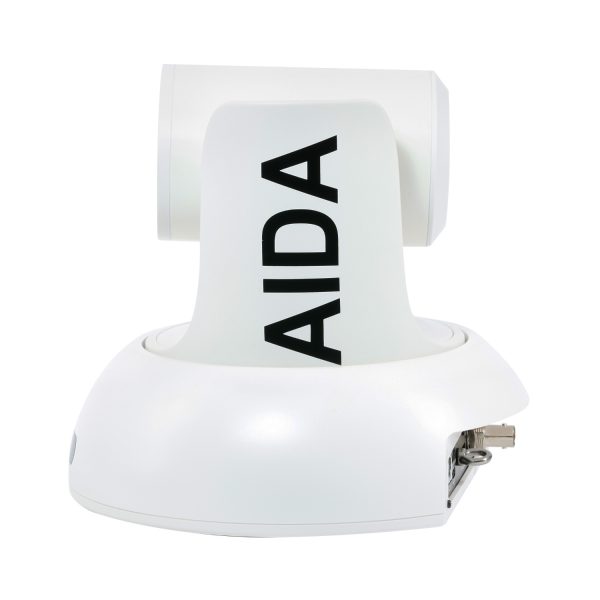

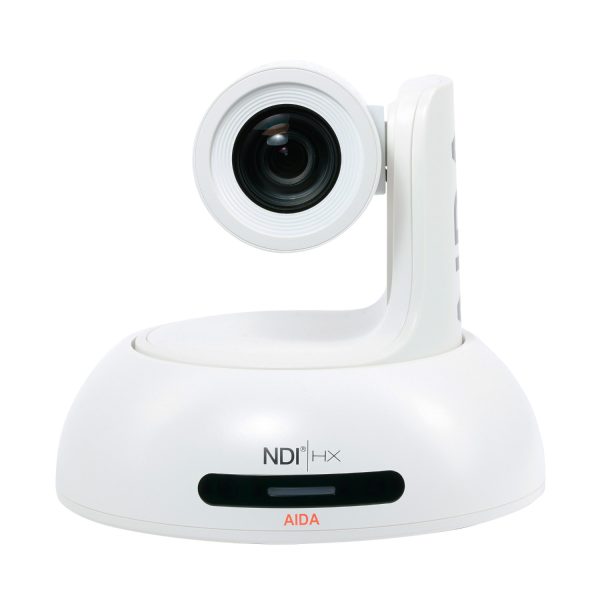

The AIDA Imaging PTZ-NDI3-X20W takes the popular 20X zoom NDI|HX format of AIDA’s previous PTZ cameras, updates the NDI format to the latest NDI|HX3 technology, and adds an industry-first 120fps high-speed frame rate for a truly unique product.
NDI|HX3 builds upon the already ubiquitous NDI|HX formula by increasing the maximum streaming bandwidth to 60 megabits per second (mb/s). This added headroom allows for even greater image quality, in addition to higher frame rates at equal or better fidelity to the previous generation of NDI|HX.
Key Features
- Simultaneous 3G-SDI, HDMI, NDI|HX3 Outputs
- Streaming video output over UDP/IP, RTSP/RTMP, and SRT
- 20x Optical Zoom
- RS-232, VISCA over IP Control
- Up to 128 Presets over Serial Control
- Built-In OSD Controls
- PoE+ or 12V DC powered
Specifications
VIDEO
Image Sensor: 1/3” Progressive CMOS
Effective Pixels: Horizontal: 1920, Vertical: 1080
Pixel Size: 2.13 μm (H) x 2.13 μm (V)
Resolution/Framerate: 1080 120p/ 100p (HDMI, IP, NDI®|HX only), 60p/59.94p/50p/30p/29.97p/25p, 24p/23.98p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p/30p/29.97p/25p
Output: HDMI, 3G-SDI, NDI®|HX3 / RTSP / RTMP / SRT
Color Space: 4:2:2 (YCbCr) 10bit
FUNCTION
White Balance: Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus: Auto, Manual
Shutter Speed: 1 to 1/10,000 Sec.
LENS
Lens: 20X HD Optical Zoom
Focal Length: 4.9~98mm
F-Stop: F1.5 ~ F3.0
Viewing Angle: 60° (wide) ~ 4° (tele)
PTZ
Pan/Tilt Range: Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed: Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Presets: 128 Positions via web, 10 Positions via remote
STANDARD
IP Protocol: UDP/IP, RTSP/RTMP, SRT, NDI®|HX, NDI®HX3
AUDIO
Input: 3.5mm TRS Stereo Audio Port
Sample Rate: 16/24/32 Bits
PHYSICAL
Camera Control Protocol: VISCA, VISCA over IP, NDI

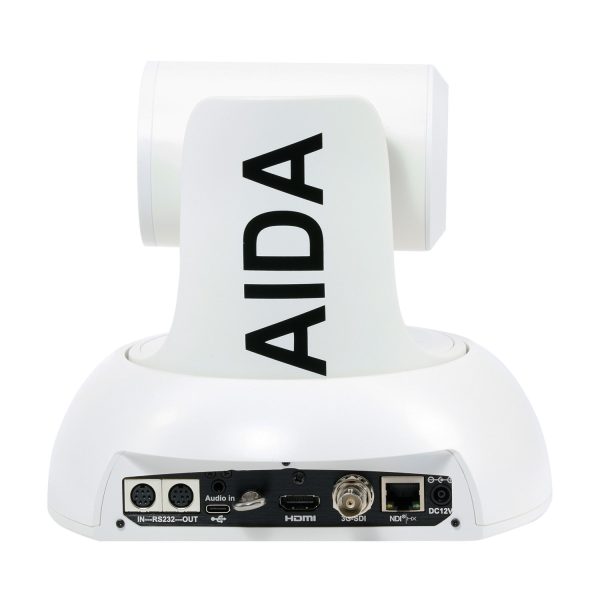

Interface: RS-232C IN & OUT, RJ-45, Remote Controller
Operation Temp: 32°F – 104°F
Dimension: 196.85mm x 190m x 176.5mm / 7.75” x 7.48” x 6.95”
Weight: 1.4kg / 3.1lbs
Power: 12VDC (+9 – +15VDC), PoE+ (IEEE802.3at Standard Required) 24w min
