Home Video Cameras 4K Cameras AIDA Imaging PTZ4K12G-FNDI-X30B – Broadcast/Conference 4K High-Bandwidth NDI® 12G-SDI 30X Zoom PTZ Camera (Black)
AIDA Imaging GEN3G-IPC-200 - FHD Genlock 3G-SDI/HDMI POV Camera with IP Control
AIDA Imaging GEN3G-IPC-200 - FHD Genlock 3G-SDI/HDMI POV Camera with IP Control $795.00
Back to products
AIDA Imaging PTZ4K12G-FNDI-X30W - Broadcast/Conference 4K High-Bandwidth NDI® 12G-SDI 30X Zoom PTZ Camera (White)
AIDA Imaging PTZ4K12G-FNDI-X30W - Broadcast/Conference 4K High-Bandwidth NDI® 12G-SDI 30X Zoom PTZ Camera (White) $3,500.00

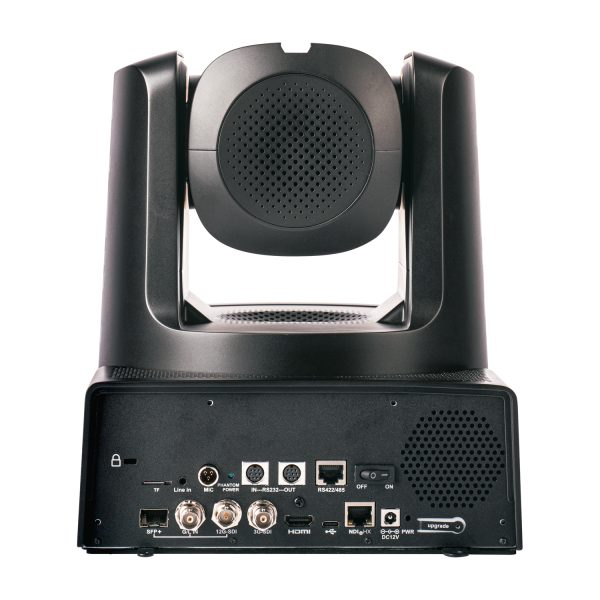

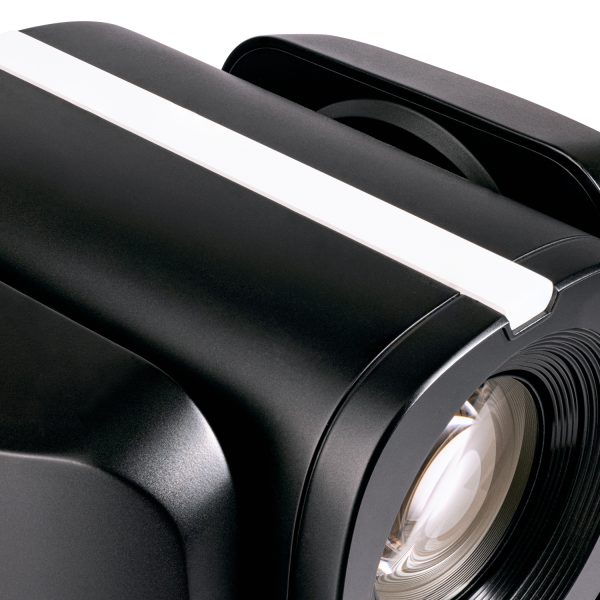

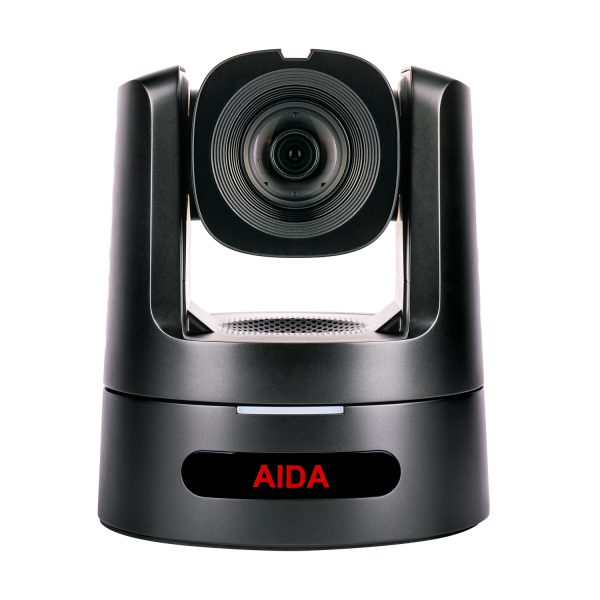

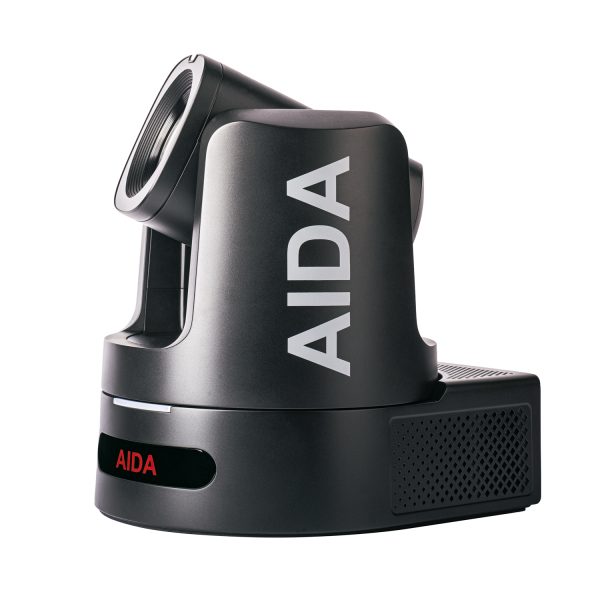

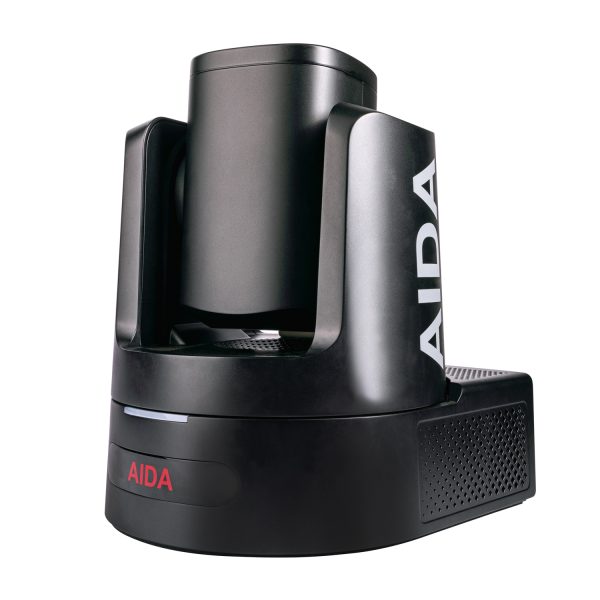

AIDA Imaging PTZ4K12G-FNDI-X30B – Broadcast/Conference 4K High-Bandwidth NDI® 12G-SDI 30X Zoom PTZ Camera (Black)

$3,500.00

BUY NOW
Compare
Add to wishlist
SKU: PTZ4K12G-FNDI-X30B Categories: 4K Cameras, AIDA Imaging, Indoor PTZ Cameras, NDI Cameras, PTZ Cameras, Video Cameras Brand: Switchblade Systems, vMix
Share:
  • Description
  • Additional information
  • Brand
Description

Full Bandwidth NDI®, 12G-SDI & SFP+!

Adding to your arsenal is our newly introduced Full Bandwidth NDI®, 12G-SDI, and SFP+ camera. Getting 4K video with immense quality has never been easier!

Visually Stunning

Built to last, the PTZ4K12G-FNDI-X30’s hardened aluminum build and size are meant to outlast any competition.

Auto-Tracking Enabled!

Seen in our PTZ4K / PTZ-NDI3 cameras, Auto-Tracking feature can be enabled via the web UI!

It’s got Talent!

To further ease production workflows, a giant-colored tally above the lens lets your talent know when it’s time to shine.

Finally, we got ears.

After lots of feedback, we realize line level input wasn’t enough, so feel free to use the new mini XLR input in the back to embed over your favorite way to stream.

Eye like a Hawk.

Near or Far, the 4K 30X optical zoom module will find you wherever you are!

Let your imagination be FreeD!

Let it all out with Intel’s Free Dimensional Protocol, utilizing PTZ coordinates to create an “unreal” level of immersion to 3D and virtual workflows.

Never out of Sync.

Utilize the genlock port on our PTZ to keep all cameras and hardware in sync at all times!

Tell me you got that, right??

Direct SD recording at timed intervals, or on the fly, is the best thing since sliced bread!

Easier to control than a TV remote

With UDP, TCP, ONVIF, PELCO, VISCA, VISCA-over-IP, NDI® and HTTP, getting this camera to do your dirty work is simple and effective!

There’s never just 1…

The PTZ4K12G-FNDI-X30 comes in both Black and White, aesthetically matching that dream workflow you’ve been cooking up.


Specifications

Video

Image Sensor 1/1.8″ Progressive Sony CMOS
Signal-to-Noise Ratio ≥50dB
Resolution 2160p, 1080p, 1080i, 720p
Video Resolution Supported 12G-SDI, SFP+, and HDMI 2.0:

2160p 60/50/30/29.97/25/24/23.98 fps
1080p 60/59.94/50/30/29.97/25/24/23.98 fps
1080i 60/59.94/50 fps
720p 60/59.94/50/30/29.97/25/24 fps

3G-SDI:

1080p 60/50/30/29.97/25/24/23.98 fps
1080i 60/59.94/50 fps
720p 60/59.94/50/30/29.97/25/24 fps

USB Type C:

MJPG 2160p30/1080p60/720p60/360p60
H264/265 2160p30/1080p60/720p60/360p60

Full Bandwidth NDI® / NDI® HX3 / NDI® HX:

2160p 60/50/30/29.97/25 fps
1080p 60/59.94/50/30/29.97/25 fps
720p 60/59.94/50/30/29.97/25 fps
Substream (locked): 640x360P 30fps~15fps

Video Outputs 12G-SDI, 3G-SDI, HDMI, USB, SFP+ slot,
RJ45 (NDI®, IP, SRT)
Minimum Illumination 0.5Lux (50 IRE Max AGC,1/30, F1.8)
White Balance Auto/Manual/AT/Push/Indoor/Outdoor/Color Temp
Recording TF card slot
Genlock Tri-level sync
VR/AR Tracking Intel FreeD tracking data transmission over IP

PTZ

Pan Rotation Angle -170° ~+ 170°
Tilt Rotation Angle -90° ~+ 90°
Pan Rotation Speed 0.1° ~+ 80°
Tilt Rotation Angle 0.1° ~+ 60°

Audio

Line-in 3.5mm stereo analog audio input
Microphone Input -90° ~+ 90°

Optics

Zoom 30X UHD Optical Zoom
Lens f=6.91mm ~ 214.64mm
F-Stop F1.35 ~ F4.6
H-FOV 60°(wide) ~ 2° (tele)
Minimum Focus Distance 5 feet (tele/wide)

Streaming

Protocols UDP/TCP/IP/ONVIF/PELCO/VISCA/VISCAOVERIP/SRT/RTSP/RTMP/NDI®/HTTP

Camera Control

Protocols VISCA over Serial (RS-232, RS-422, or RS-485), VISCA over IP (LAN), NDI PTZ control

Physical

Operation Temperature 32°F – 104°F (0°C – 40°C)
Dimensions 266.7mm x 228mm x 305mm
10.5” x 9” x 12” (when module is straight up)
Weight  4.59 kg / 10.12lb
Power 12VDC (+9 – +15VDC)
PoE++ Standard (802.3bt)
Package Contents Remote controller, Camera mounting bracket, Power adapter and cable, Safety harness
Additional information
Weight 15 lbs
Dimensions 17 × 17 × 17 in
Manufacturer Part Number PTZ4K12G-FNDI-X30B
Brand

Brand

AIDA Imaging
