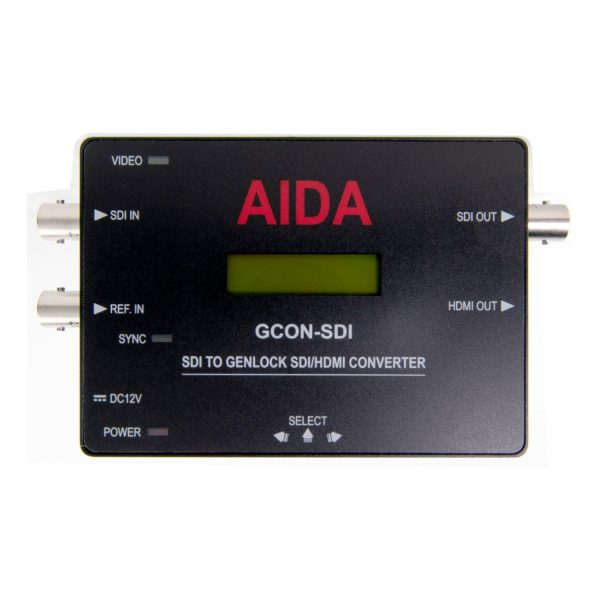

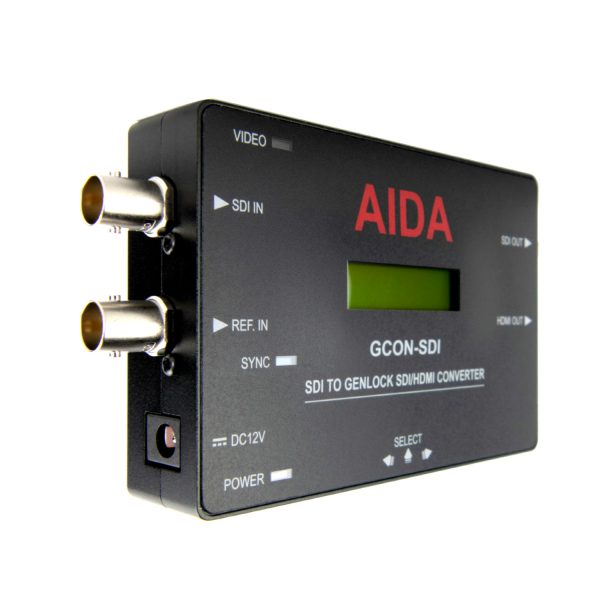

The Perfect Camera Sidekick – Professional SDI Genlock Converter
Aida’s GCON-SDI converts SDI sources to Genlock SDI/3G-SDI and HDMI with zero latency, keeping the integrity of the original source feed intact. GCON-SDI supports 1080p resolutions up to 60 fps. The Tri-Level Sync Genlock featured in the GCON-HDMI syncs with other system components for seamless vertical interval switching between sources. GCON-SDI supports ancillary data in both SMPTE 352 payload ID and audio and relays it through its SDI output. Its rugged and portable design makes GCON-HDMI a perfect camera sidekick to where it’s needed most.
Features:
- SDI up to 1080p60 full HD Resolution Input

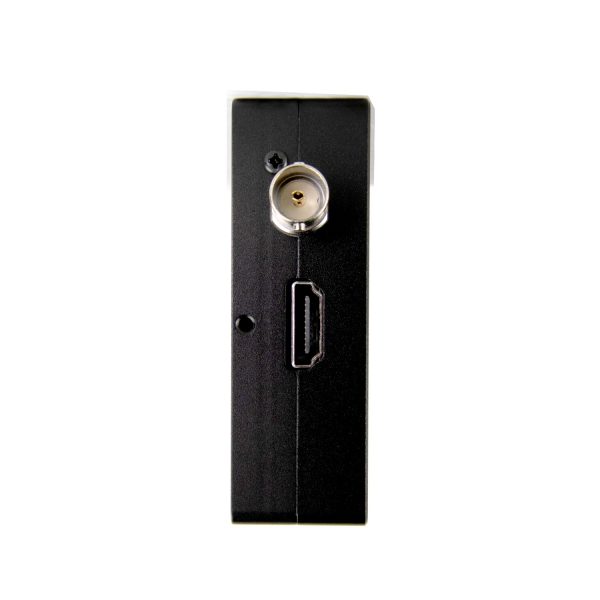

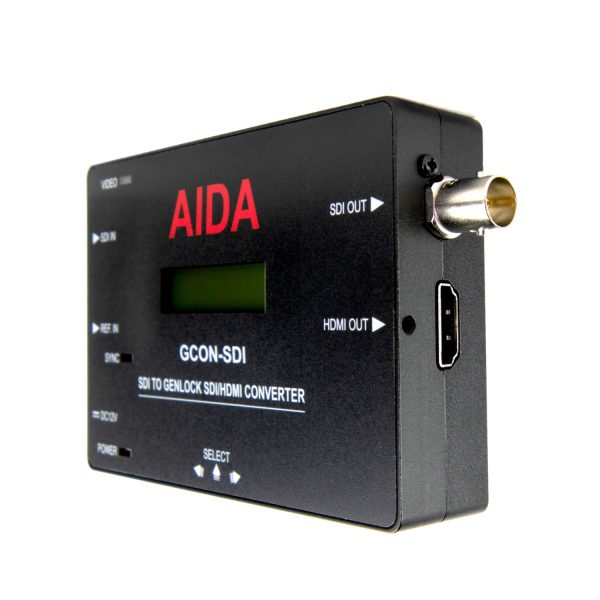

- Simultaneous HDMI and SDI Loop Output
- Highly compatible with Tri Level reference input SMPTE 292M & 424M Compliant and multi-video format including 59.94Hz
- SMPTE 352M Ancillary Data supported
- Embedded audio pass through via SDI & HDMI
- Adjustable V-sync & H-sync phases
- Divisional picture comparison
- Built in Pattern Generator
- Built in LCD menu screen
- Built in menu control button
- Versatile, compact, and rugged design
Specifications:
- Video Input: 3G-SDI / HD-SDI
- Resolution/Rate: 1080 60p/59.94p/50p/30p/29.97p/ 25p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p/30p/25p
- Color Space: 4:2:2 (YCbCr) 10bit
- Video Output: Genlocked HD-SDI/3G-SDI; Genlocked HDMI 1.3a
- Genlock Control: ON/OFF H Sync & V Sync Adjustment
- Audio Control: Audio Bits (16, 20, 24 Bits)
- Payload ID: ON/OFF
- Pattern Generate: Thirteen Patterns
- Audio Input: 8 Channels Embedded HDMI Audio
- SMPTE: SMPTE 292M, SMPTE 424M

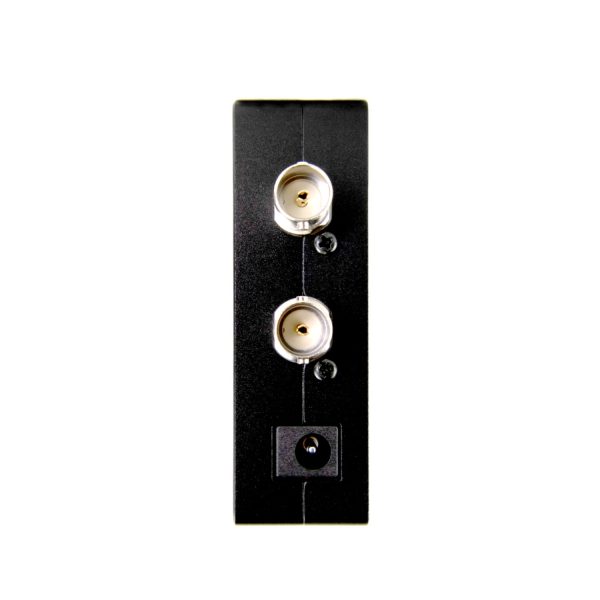

- Genlock: External Tri-Level Input
- Control: OSD Button & Text LCD
- Operation Temp: 32° F – 104° F
- Dimension: 5.11 in x 2.95 in x 0.94 in(130mm x 75m x 24mm)
- Weight: 0.38 lbs (173 g) (With default 3.6mm Lens)
- Power: 6W at 12VDC (+9 – +15VDC)
