AIDA Imaging UHD 4K/30 6G-SDI POV Camera
$1,000.00
BUY NOWComfortability with Conformability
The UHD6G-200 breathes life to any new, or existing SDI infrastructure with versatility, and uniqueness. With its rugged design, you may just forget it’s even there in the studio.

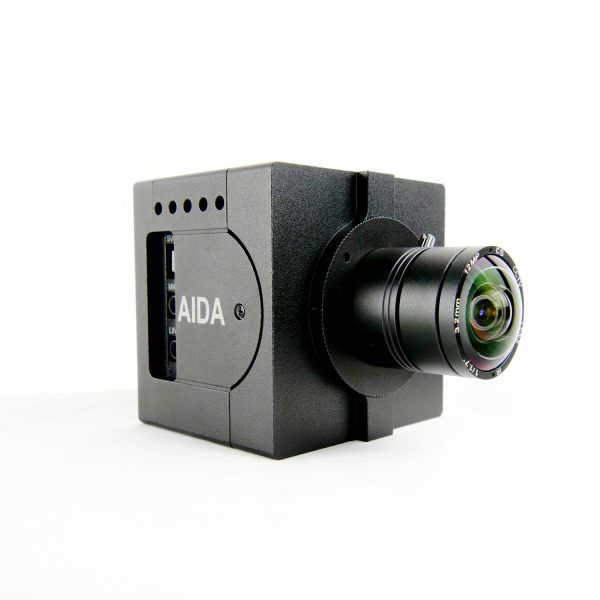

The UHD6G-200 POV Professional EFP Camera from AIDA Imaging has a 1/2.5″ progressive-scan CMOS image sensor and supports a resolution of up to 4096 x 2160 at 20/24p fps. It features a preinstalled 3.2mm 12MP 4K lens and a 6G-SDI output and is designed for industrial and broadcast applications.
This camera features a user-interchangeable C to CS mount lens as well as digital imaging processor that provides vivid and detailed images by utilizing dynamic range, white balance, and noise reduction.
The on-screen display can be remotely controlled by a PTZ camera controller or by CCS-USB and software. A breakout cable with on-screen display control, audio input and RS-485 for remote communication as well as a 12 VDC power supply and socket adapter are included.
Learn more in our helpful demonstration video!
Video
| Image Sensor | 1/2.5″ progressive CMOS |
| Sensor Size | 8.365 X 6.615 mm (16:9) |
| Effective Pixels | Horizontal: 3840 Vertical: 2160 |
| Pixel Size | Horizontal: 1.62 μm Vertical: 1.62 μm |
| Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Resolution / Frame Rate | 4K (4096 X 2160) at 20/24p 2160p at 30/29.97/25/24 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50/30/25 |
| Output | 1 x HD/3G/6G-SDI BNC port |
| Color Space | 4:2:2 (YCbCr) 10-bit |
Function
| White Balance | AWB / AE / AF |
| Exposure | Full auto, bright, shutter priority, iris priority, manual |
Lens
| Lens | C/CS mount |
Audio
| Input | 3.5 mm analog audio jack over input/output cable |
| Sample Rate | 16/24/32 bits |
Standard
| SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
Physical
| Camera Control | RS-485 OSD Button |
| Power | 12 VDC (9 to 15 VDC) |
| Operation Temperature | 15 to 120°F / -9.4 to 48.9°C |
| Dimensions | 2.20 x 2.20 x 2.83″ / 56 x 56 x 72 mm |
| Weight | 0.37 lb / 170 g |
| Weight | 2 lbs |
|---|---|
| Dimensions | 12 × 8 × 3 in |
