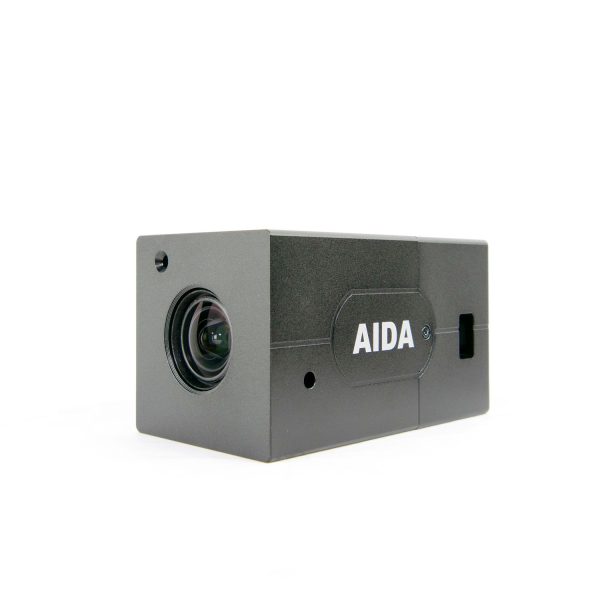

The UHD-X3L Micro 4K 3X Zoom HDMI EFP Camera from AIDA Imaging is an ultra-compact field production camera suitable for web-conferencing, sports, auto racing, surveillance, medical, broadcasting, live production, education, house of worship, and other applications. Measuring approximately 2 x 3″, it can be mounted, for example, as a dashcam in a race car, or discretely in the corner of a surgical room.
The camera captures up to UHD 4K resolution video at 30 fps and offers 3X optical zoom with the built-in lens, allowing you to zoom in from a 78° wide angle to 25° telephoto field of view. It also provides focus and iris control. Applying a motion-compensated temporal noise reduction filter, Wide Dynamic Range, auto white balance, and digital image stabilization, the UHD-X3L captures vivid images without blurring even in low light conditions.

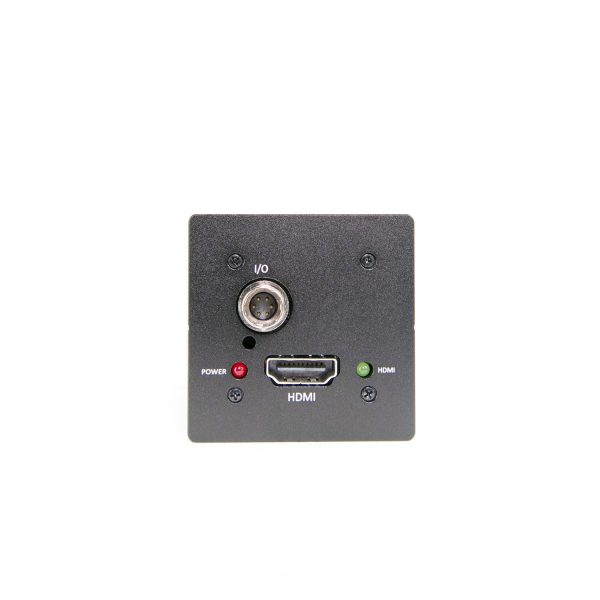

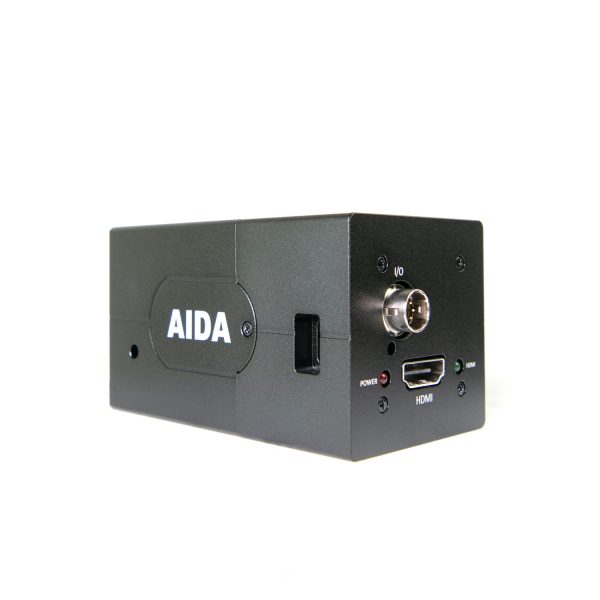

The UHD-X3L has an HDMI output that allows you to connect to switchers, monitors, recorders, and other devices for viewing and/or recording the image. An optional wireless transmitter can be incorporated to enhance your workflow in some cases. An included breakout cable provides inputs for power and RS-485 control (VISCA protocol). The cable also has an integrated OSD controller on it. A power cord is supplied and a remote controller is also included. For mounting the camera, there’s a 1/4″-20 threaded mounting hole on the bottom of the rugged body.
Specifications
| Image Sensor | 1/2.5″ CMOS, 7.2 mm Diagonal |
| Effective Pixels | H x V: 3840 x 2202 |
| Pixel Size | 1.62 μm |
| Resolution | 3840 x 2160 at 30/29.97/25/24 1080p60/59.94/50/30/29.97/25/24 1080i60/59.94/50 720p60/59.94/50 |
| Connections | HDMI 1.4 Type A Output I/O Port for Breakout CableBreakout Cable: Power Input RS-485 Input |
| Color Space | 4:2:2 (YCbCr) 10-Bit |
| Lens | 3X Optical Zoom, 3.85mm/78° (Wide) to 13.4mm/25° (Telephoto) |
| SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
| Mount Type | 1/4″-20 Threaded Hole |
| Power | 12 VDC (9 to 15 VDC) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 1.9 x 1.9 x 3.3″ / 4.8 x 4.8 x 8.3 cm |
| Weight | 0.3 lb / 140 g |
