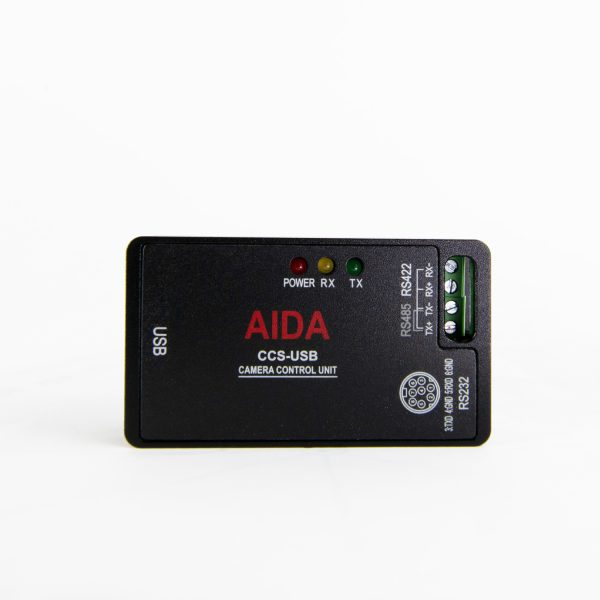

AIDA Imaging VISCA Camera Control Unit & Software
$195.00
BUY NOWThe go-to software for all your camera control needs
Automatically set up your COM ports through connection to computer via USB. Control up to 7 primary cameras utilizing advanced SONY VISCA™ protocol and up to 255 cameras utilizing PELCO™ protocol. Compatible with Windows and Mac OSX™ operating systems.
Description
Automatically set up your COM ports through connection to computer via USB.
Control up to 7 primary cameras utilizing advanced SONY VISCA protocol and up to 255 cameras utilizing PELCO™ protocol.
Compatible with Windows and Mac OSX operating systems.
Control
| Camera Interface | RS-232C RS-485/RS-422: Terminal Block Connector |
| Protocol | VISCA for Camera Settng up to 7 Cameras PELCO for Pan/Tilt/Zoom Control up to 255 Cameras |
| User Interface | Graphic User interface |
| PC Interface | USB |
| Compatibility | All VISCA Protocol Camera All PELCO Protocol Camera |
Function
| Image | Contrast, Saturation, Sharpness, Gamma |
| Exposure | Auto, Shutter Priority, Iris Priority, Manual, Flickerless |
| White Balance | Auto, Manual, ATW |
| Backlight | WDR, BLC |
| Motion | Pan, Tilt, Zoom Camera Control |
Physical

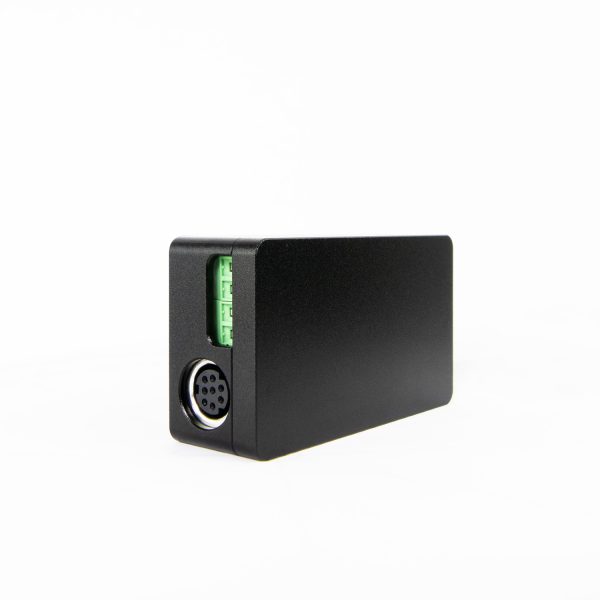

| Camera Control | RS-232C: 8 Pin Mini Din Connector RS-485/RS-422: Terminal Block Connector |
| Accessory | CBL-RJ45 (RS232 to Cross-RJ45 converter cable) |
| Operation Temp | 32°F – 104°F |
| Dimension | 62m x 35m x 19mm / 2.44″ x 1.37″ x 0.74″ |
| Weight | 50g / 0.11lbs |
| Power | USB Powered |
Diagram
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 6 × 3 in |
