Oxygen 2000 is a fully digital broadcast console designed for on-air production in any radio station. It is a compact unit with 12 faders, 5 microphone inputs with Automix, with powerful internal audio routing and a wide range of controls and I/O in a rugged and classy steel chassis.
Oxygen 2000 DSP based audio processing delivers high-end quality and guarantees latest features and flexibility. Reliable and easy to use as an analog mixing console, Oxygen 2000 offers top-class features: Low Latency, Users Preset, Smart Keys, EQ, Compressors, Telephone Hybrid, HDMI Output, Analogue and Digital I/O, USB, Bluetooth, Dante AoIP, Telco, Presenter Talk Box. Oxygen 2000 can also be remotely controlled through a dedicated application.
Input & Output
- 5 microphone inputs with Automix
- 3 stereo analog inputs (4 if the console is configured for 3 Mic)
- 4 stereo analog outputs
- 1 built-in telephone hybrid
- 1+4 telco interface with GPIO
- Bluetooth audio interface (optional)
- 1 digital Out (AES/EBU)
- 2 USB audio interfaces (disabled with Dante option installed)
- 8 stereo inputs + 8 stereo outputs via Dante (optional)
General
- Fully Digital Broadcast Console for Radio Broadcasting with 12 faders
- A/B Fast source switch buttons for each fader
- 4+1 busses (PGM, SUB, Aux1, Aux2, PFL)
- Near 0 latency (< 0,7 ms I/O)
- Digital Signals Routing via the 32×32 internal matrix

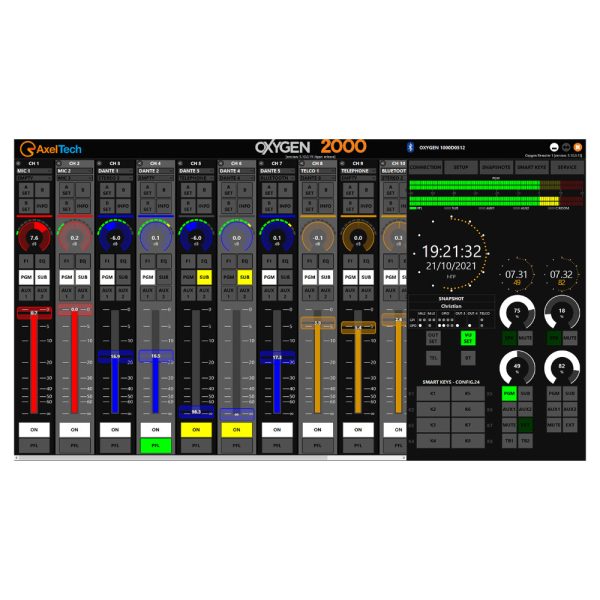

- Complete Remote Control by means of an application replicating the surface
- Remote configuration and maintenance via Web Interface
- User-definable Presets & Snapshot
- 5 bands fully parametric Equalizer on every input
- Dynamic Processor with expander and compressor section on each microphone inputs
- Advanced and configurable Monitor Facilities for Control Room and Studio
- Customizable RGB colored buttons
- High Resolution (120 leds) meter bars for outputs

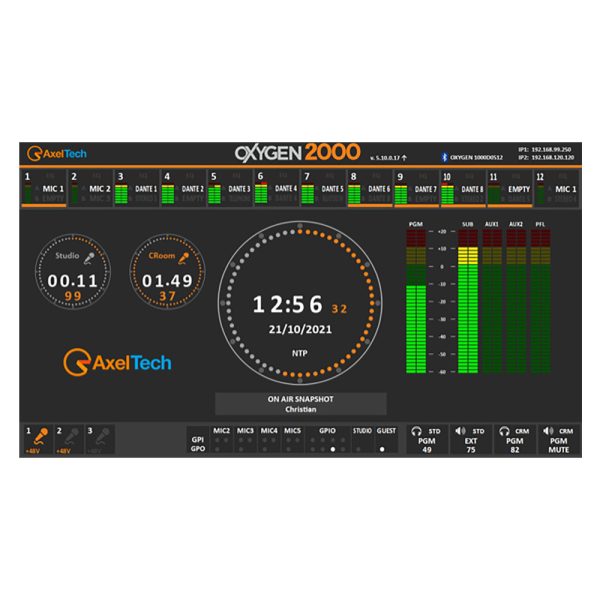

- HDMI Out for console status display
- 2 Timers (Ctrl-Room and Studio microphones timers on HDMI Monitor)
- Optional TalkBox for guest and presenter
Options
- Talk Box
- RJ45 adapters for:
o Mic with GPIO
o Line In
o Line Out with GPIO
o Telco with GPIO
