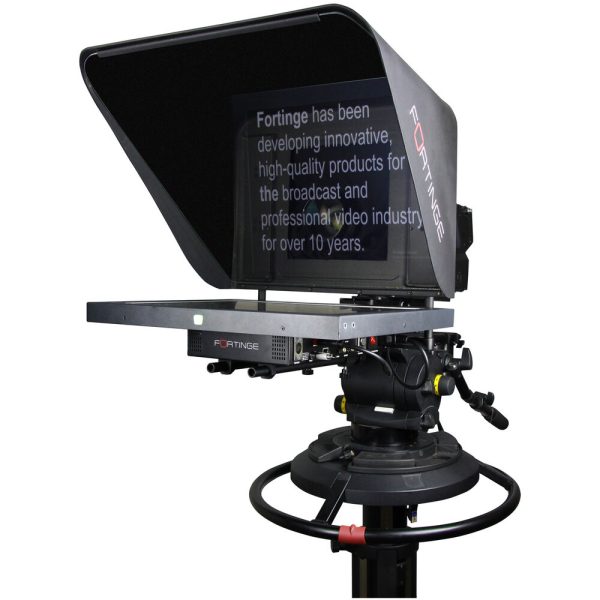

The ERA IP 17 is a high-end teleprompter system, lightweight and robust, with an operational lifetime of 50,000 hours, designed for broadcast and news studios.
With its 17-inch screen, this teleprompter is compatible with almost every studio and provides all necessary video inputs and outputs that might be required in the studio environment.
Built in AC and DC power supply offers the option to power the unit either externally, or from the camera body, without need of external adapters.
Tally input provides an external cue to the talent. Furthermore, the unit also has NDI® input via ethernet, and can be part of a video-over-IP setup.
Built from HIGH QUALITY Heavy Duty Reliable Materials with Toolless Assembly and Easy Setup Features.
* The FORPROMPT STUDIO IP Teleprompter software is optional
* Available In Both High-Brightness & Regular Brightness versions
Technical Specifications
| Panel Brand | ERA IP-17 | ERA IP-19 | ERA IP-21 | |||
|---|---|---|---|---|---|---|
| ERA IP | ERA IP HB | ERA IP | ERA IP HB | ERA IP | ERA IP HB | |
| Panel Size | 17″ | 19″ | 21″ | |||
| Panel Dimensions | 15.82″ × 12.83″ × 3.07″ 40.2cm × 32.6cm × 7.8cm |
17.4″ × 14.72″ × 3.07″ 44.2cm × 37.4cm × 7.8cm |
23.15″ × 13.74″ × 3.07″ 55.8cm × 34.9cm × 7.8cm |
|||
| Resolution | 1280 × 1024 | 1920 × 1080 | ||||
| Brightness | 250 cd/m2 | 1000 cd/m2 | 250 cd/m2 | 1000 cd/m2 | 300 cd/m2 | 1000 cd/m2 |
| High Brightness (Optional) | 1000 cd/m2 | |||||
| Weight | 18.793 lbs (8.5 kg) | 20.944 lbs (9.5 kg) | 23.15 lbs (10.5 kg) | |||
| Reading Range | 20 ft (6m) | 23 ft (7m) | 26 ft (8m) | |||
| Aspect Ratio | 4:3 | 16:09 | ||||
| Contrast Ratio | 1000:1 | |||||
| Viewing Angle | 170/160 | 178/178 | ||||
| Video Input | NDI, SDI, HDMI, Composite (BNC), VGA | |||||
| Video Output | SDI, Composite (BNC) | |||||
| Tally Input | 3 pin mini XLR | |||||
| Rated Input Power | 45W | |||||
| Rated Input Voltage | 110V-230V AC (50-60Hz)/12 V DC | |||||
| Rated Output Voltage | 12 V DC | |||||
