High-Speed Capture and Slow-Motion Replay Server
High-speed video capture solutions are used extensively in sports broadcasting, sports training, and industrial applications. However, these solutions are often expensive and complex to implement. US Broadcast Distribution has simplified and lowered the cost barrier to add high-speed video capture by partnering with vMix, MediaEdge, and Switchblade Systems. The result is a comprehensive system designed for ease-of-use at a price-point well below the competition.

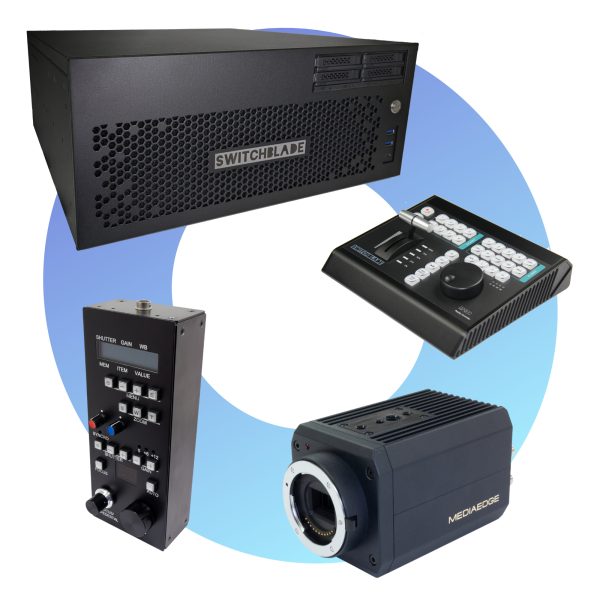

This turnkey system includes:
- 1x MediaEdge QDCAM 240FPS Slow Motion Camera

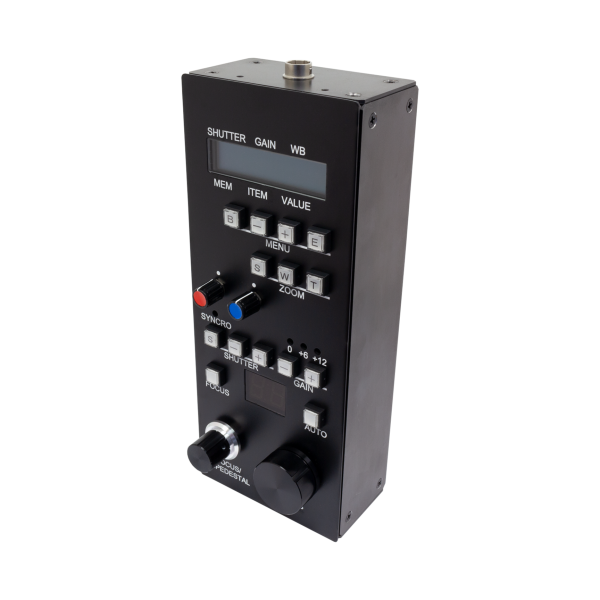

- 1x MediaEdge RC10 Remote Control Panel (RCP) for QDCAM camera
- Switchblade LPU4 Elite-R – High-performance video server vMix Replay (included in vMix Pro) and 240FPS 3G-SDI capture interface
- Switchblade RP400 replay controller

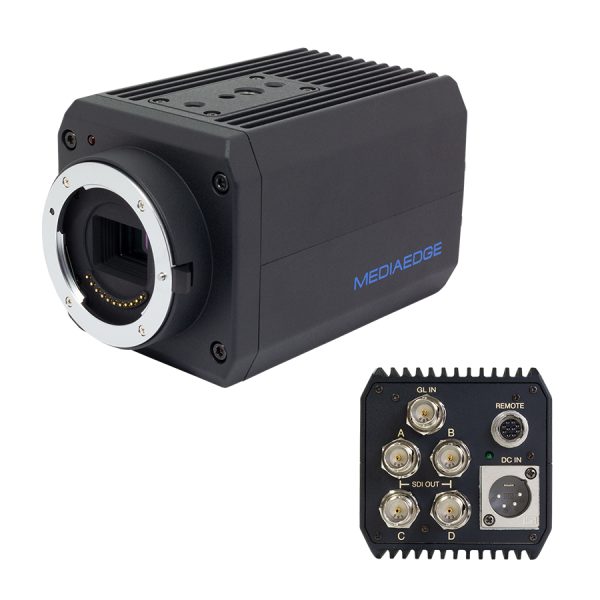

MediaEdge QDCAM Specifications
- High-Speed shooting: 1920×1080/239.8p, 200p
- High-resolution shooting: 4096×2160/24p, 3840×2160/60p,50p
- Global shutter CMOS sensor
- Micro four-thirds lens compatible
- Quad-link 3G-SDI output
- Option optical fiber transmission
- Multi-camera synchronization system
- Fanless operation
Video Server Specifications
- Quad-Link 3G-SDI video capture interface
- vMix Replay software (included with vMix Pro license)
- Intel Core i9-14900KF 24-core processor
- NVIDIA RTX A4000
- 1x 1TB SSD system drive
- 1x 2TB SSD replay recording drive
- 4x hot-swap 2.5″ SSD bays
- 32GB RAM
- Windows 11 Pro
- 2x 2.5Gbps Ethernet RJ-45 ports
- Dimensions: 16.89″ W x 7″ H x 17″ D
