HTC Vive Mars CamTrack – Virtual Production Tracking System with Five Virtual Sets and Tri-Level Sync Generator
$6,795.00
BUY NOW
Description
VIVE Mars CamTrack is a solution that integrates VIVE Tracker (3.0), SteamVR Base Station 2.0, and a suite of other devices and tools to help you incorporate VR tracking technology into your virtual production projects.

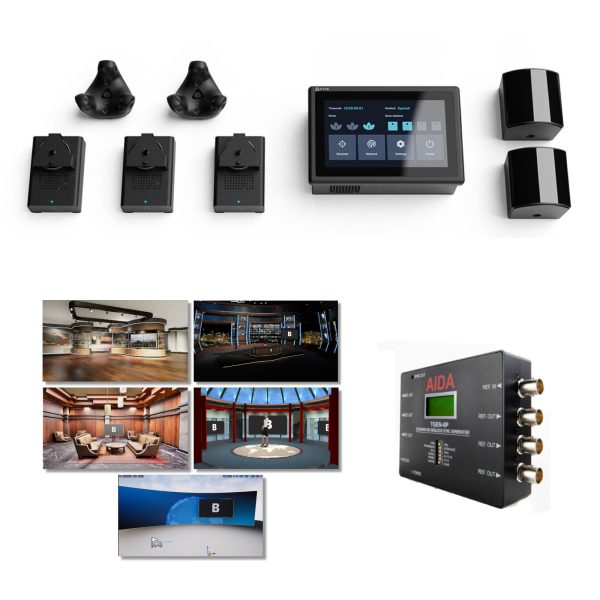

This bundle includes:
- (5) 3D virtual sets by VirtualSetWorks for Unreal Engine and UE compatible software applications such Aximmetry
- VIVE Mars touch screen processing unit
- (2) SteamVR Base Station (2.0) room tracking devices
- (2) VIVE Tracker (3.0) object position trackers
- (3) Mars Rover camera data acquisition devices
- AIDA Imaging TGEN-6P tri-level sync generator for synchronizing cameras and displays
- Calibration kit
- Power and data cables
Mars CamTrack Solution Highlights
- Plug-and-Play, fast setup, no installation required.
- One-click to reset origin.
- Robust wiring to minimize latency.
- Friendly camera calibration kit.
- Multi-cam tracking, support up to 3 Rovers.
- Genlock / timecode (LTC) sync support.
Mars CamTrack Technical Specifications
Dimension
196 x 134 x 65 mm
Weight
1.4 KG
Display
7” LCD touch screen
Connections
- BNC for Genlock
- 3.5mm audio jack for Timecode
- 3x RJ45 PoE port for Rovers (up to 3 Rovers supported)
Protocol
Unreal Live Link / FreeD
Encoder Support
- Mars FIZTrack
- LOLED Indiemark 2
AIDA Imaging TGEN-6P Specifications
Reference Output
| Signal | 3G/HD Tri-Level |
| Supported Formats | 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p |
| Reference Output | 6 Channels |
Reference Input
| Signal | 3G/HD Tri-Level |
| Supported Format | 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p |
| Reference Input | 1 Channel |
Operational
| SMPTE Standards Supported | SMPTE 274, 296M, 424M |
| Synchronization | Genlock: Tri-Level (Bi-Level SD Sync Not Supported) |
Physical
| Control | Dip Switches and Text LCD |
| Power Source | 9 to 15 VDC |
| Power Consumption | 6 W at 12 VDC |
| Operation Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 5.11 x 2.95 x 1.10″ / 130 x 75 x 28 mm |
| Weight | 0.4 lb / 185 g |
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 20 × 20 × 12 in |
