HTC Vive Mars CamTrack – Virtual Production Tracking System with Mars FIZTrack, Five Virtual Sets, and Tri-Level Sync Generator

$7,195.00

BUY NOW
Compare
Add to wishlist
SKU: USBD-VIVEMARS-5VS-SG-FT Category:
Description

VIVE Mars CamTrack is a solution that integrates VIVE Tracker (3.0), SteamVR Base Station 2.0, and a suite of other devices and tools to help you incorporate VR tracking technology into your virtual production projects.

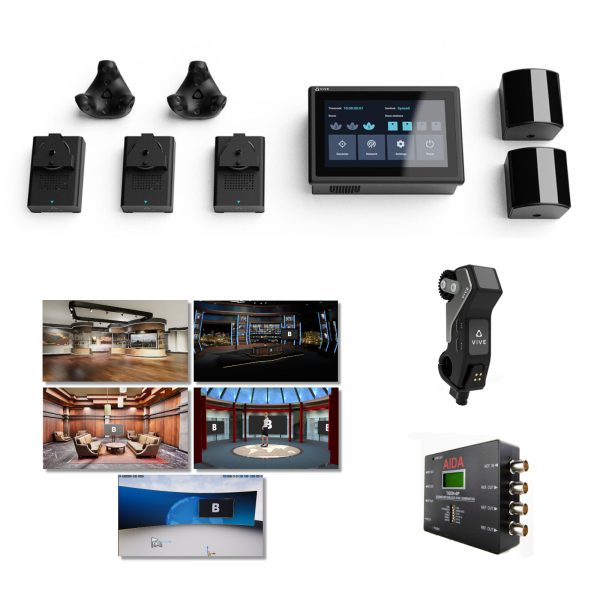

This bundle includes:

  • (5) 3D virtual sets by VirtualSetWorks for Unreal Engine and UE compatible software applications such Aximmetry
  • VIVE Mars touch screen processing unit
  • (2) SteamVR Base Station (2.0) room tracking devices
  • (2) VIVE Tracker (3.0) object position trackers
  • (3) Mars Rover camera data acquisition devices
  • Mars FIZtrack camera encoder for Focus/Iris/Zoom data integration
  • AIDA Imaging TGEN-6P tri-level sync generator for synchronizing cameras and displays
  • Calibration kit
  • Power and data cables

Mars CamTrack Solution Highlights

  • Plug-and-Play, fast setup, no installation required.
  • One-click to reset origin.
  • Robust wiring to minimize latency.
  • Friendly camera calibration kit.
  • Multi-cam tracking, support up to 3 Rovers.
  • Genlock / timecode (LTC) sync support.

Mars CamTrack Technical Specifications

Dimension

196 x 134 x 65 mm

Weight

1.4 KG

Display

7” LCD touch screen

Connections

  • BNC for Genlock
  • 3.5mm audio jack for Timecode
  • 3x RJ45 PoE port for Rovers (up to 3 Rovers supported)

Protocol

Unreal Live Link / FreeD

Encoder Support

  • Mars FIZTrack
  • LOLED Indiemark 2

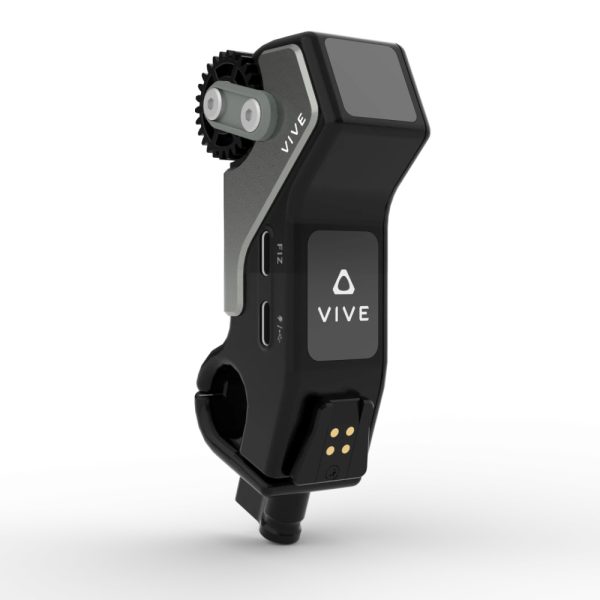

Mars FIZtrack Technical Specifications

  • Screen size:  OLED 0.52″
  • Input voltage: 5V ~ 168V
  • Communication frequency: 2.4000 ~ 2.4835 GHz
  • Input voltage of external battery: 7.4V ~ 8.2 V

AIDA Imaging TGEN-6P Specifications

Reference Output
Signal 3G/HD Tri-Level
Supported Formats 1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Output 6 Channels
Reference Input
Signal 3G/HD Tri-Level
Supported Format 1080 60p/59.94p/50p/30p/29.97p/25p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Reference Input 1 Channel
Operational
SMPTE Standards Supported SMPTE 274, 296M, 424M
Synchronization Genlock: Tri-Level (Bi-Level SD Sync Not Supported)
Physical
Control Dip Switches and Text LCD
Power Source 9 to 15 VDC
Power Consumption 6 W at 12 VDC
Operation Temperature 32 to 104°F / 0 to 40°C
Dimensions 5.11 x 2.95 x 1.10″ / 130 x 75 x 28 mm
Weight 0.4 lb / 185 g
Additional information
Weight 12 lbs
Dimensions 20 × 20 × 12 in
Manufacturer Part Number USBD-VIVEMARS-5VS-SG-FT
Brand

Brand

AIDA Imaging

HTC

Virtualsetworks
