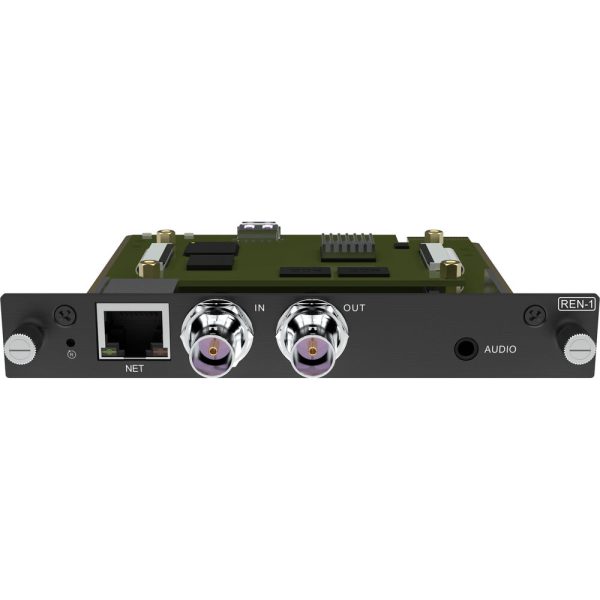

Part of the Kiloview cradle series of encoders and decoders, this SDI to NDI|HX Encoder Card (Version 2) mounts in your cradle and takes up to a 1080p60 input video signal. The card fully supports NDI|HX and encodes your streaming video in a variety of protocols, while being suitable for video conferencing, remote learning, network programming, and multimedia uses. A loop-through BNC output allows you to view the output on a local monitor and a USB Type-A port provides an option for PTZ control, intercom, or recording externally.
Your cradle supplies power and the encoding card just slides into the cradle and is secured with two captive screws. The card supports audio encoding of the embedded signal, and it includes a 3.5mm port for a separate audio input. The cradle ecosystem supports H.264 video encoding as well as text overlay and other features controllable via its WEB interface.
Cradle Series Encoders
The Cradle Series supports 3.5mm audio input, H.264 encoding, image and text overlay, video cropping, NAS network storage, and other professional functions.
Applications
TV programming, lecture capture, online courses, distance learning, course recording, broadcast meetings, and web training.
Protocols
All codec modules support SRT, RTMP, RTSP, UDP, HTTP, HLS, and other protocols.
Specifications
| Video Inputs | 1 x BNC (3G-SDI) |
| Audio Inputs | 1 x 1/8″ / 3.5 mm TRS Analog Female |
| Video Outputs | 1 x BNC (3G-SDI) (Loop Output) |
| Audio Outputs | None |
| Other I/O | 1 x USB-A PTZ Input/Output (Shared Intercom, Recording) |
| Expansion Slots | None |
| Input Video Format | SDI: 1080p at 60 fps |
| Input Audio Format | Analog |
| Output Video Format | SDI: 1080p at 60 fps |
| Embedded Audio | SDI/LAN (RJ-45) |
| Video Encoding | HLS, NDI, RTMP, RTP, RTSP, SRT, TS, UDP |
| Audio Encoding | AAC, G.711 |
