Description

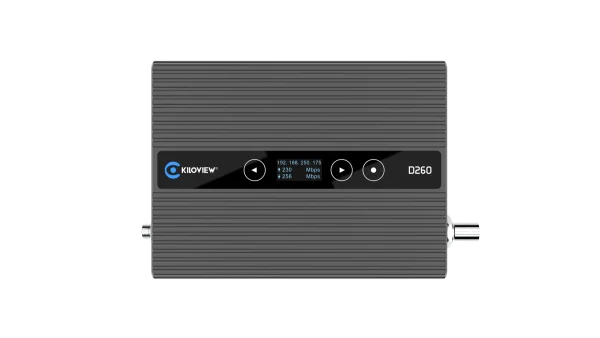

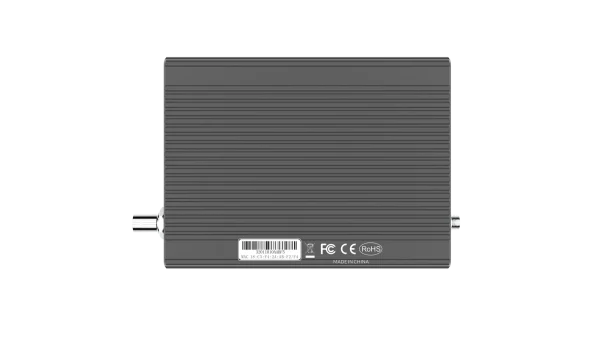

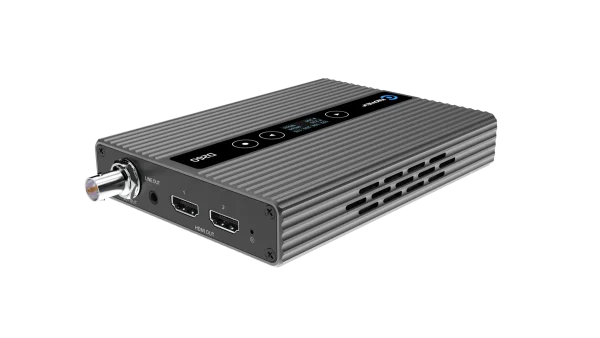

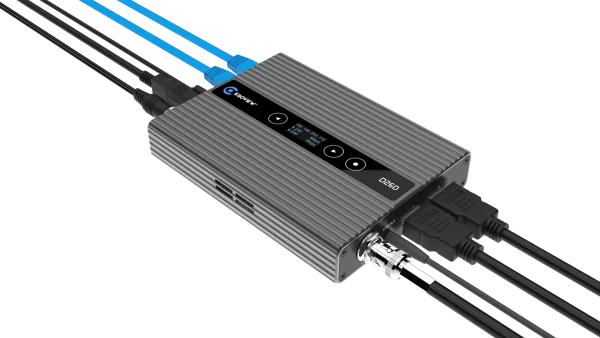

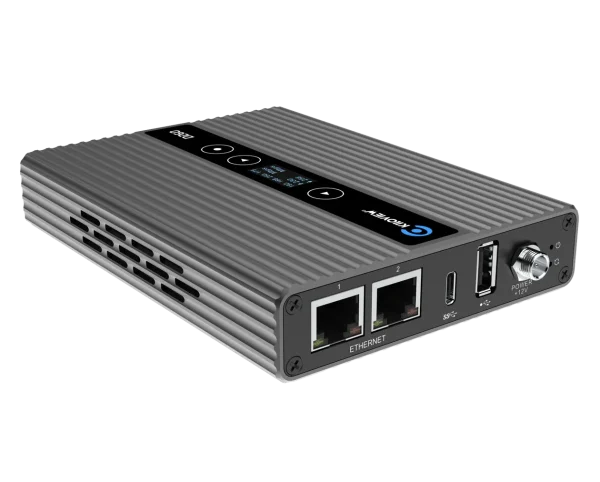

D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything your need about decoding is packaged in this single unit with low cost.
Technical Specifications
| Model | D260 |
|---|---|
| Video Output | 2*HDMI 1*3G-SDI |
| Audio Output | HDMI、SDI and 1*3.5mm Line out |
| Video Formats | H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2； H.265(HEVC)Compatible with Main Profile, up to Level 5.1 |
| Video Decoding | 4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60 |
| Audio Formats | AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM |
| Streaming protocols | NDI|HX2.0/NDI|HX3.0*/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP |
| Display | 0.96”LCD Display and Touch Button |
| Layouts | Custom 1/2/3/4 layouts |
| Intercom | Yes |
| OSD | Yes |
| Tally | Yes |
| Network Connections | Ethernet Ports: 2*10/100M/1000M |
| USB Ports | 1*USB 2.0 Type-C 1*USB 2.0 Type-A |
| Power Supply | DC 12V/1A |
| Management | WebUI/KiloLink Server |
| Power Consumption | 7W(MAX) |
| Size | 162.85mm x 104.00mm x 25.00mm |
| Weight | 328.18g |
| Operating Temperature | -20℃~60℃ |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
