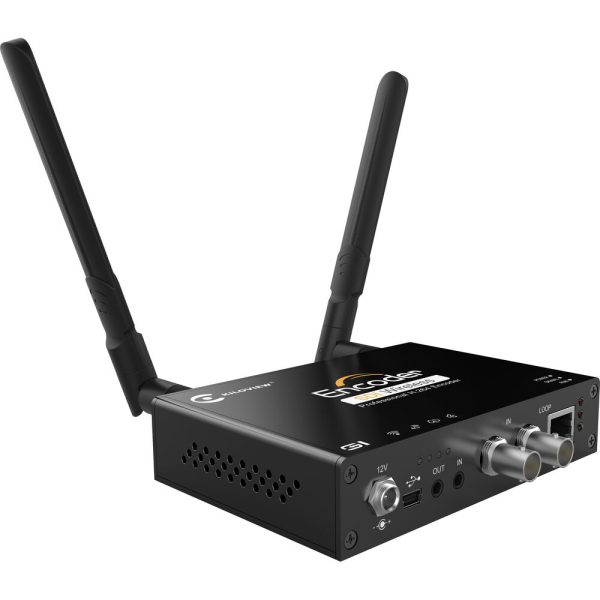

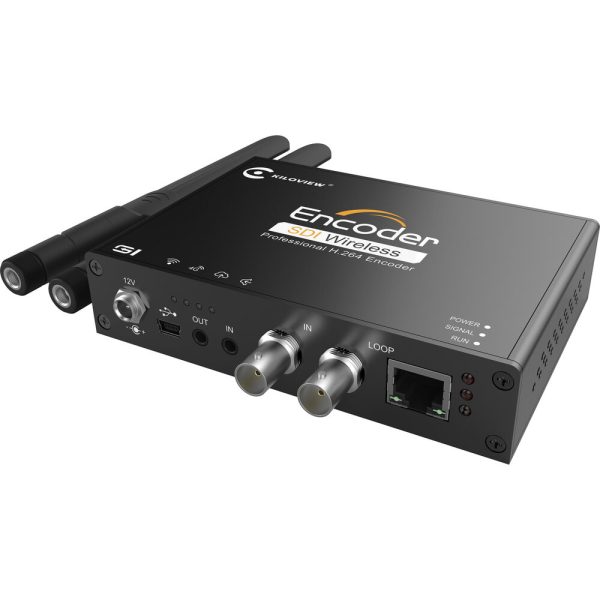

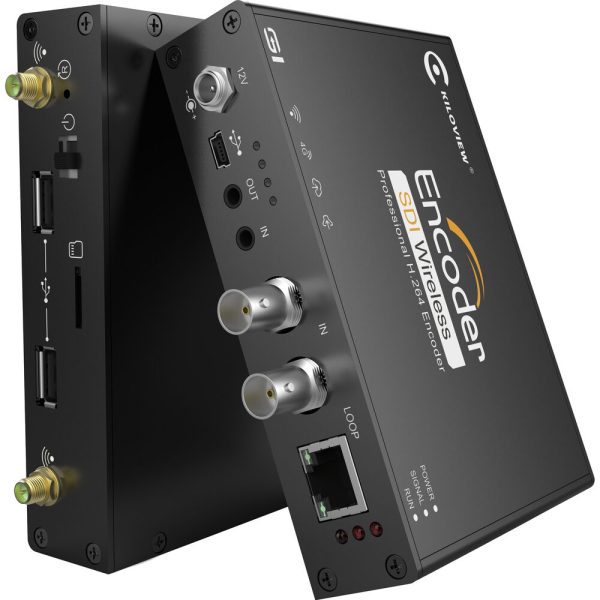

Convert your 3G-SDI signal to H.264 on the go and send it wirelessly with the G1-s 3G-SDI to H.264 Wireless Video Encoder from Kiloview. This portable encoder provides a low-latency, dual-stream output with resolutions up to 1080p60. Send encoded video via Ethernet or use the integrated dual-band Wi-Fi to achieve stable wireless transmission while supporting an optional 4G-LTE USB dongle for mobile applications. The main and sub stream outputs simultaneously send your encoded content to a full range of streaming protocols.
An integrated microSD card slot gives you program recording flexibility, and redundant acquisition support can also be achieved externally with optional USB/NAS solutions. The 3G-SDI input allows for embedded digital audio while analog audio is handled via the 3.5mm input and output ports which, when paired with an optional voice intercom software from Kiloview, can perform real-time voice calls. A web-based interface supports a comprehensive and intuitive set of control options.
Multiple Protocols All at the Same Time
RTSP/RTMP/RTMPS/SRT/HLS/TS-UDP/ONVIF all supported simultaneously
Multiple File Formats for Recording
Record onto microSD cards or externally in MP4, MOV, MKV, and AVI
Analog and intercom supported – More than video
Specifications
Video input | G1:1*BNC SDI; G2: 1*HDMI |
Analog video input | 2*3.5mm |
USB | 2*USB 2.0 Type-A |
Micro SD | 1*Micro SD/TF Card storage interface |
Network support | WIFI (2.4G/5G Hz)/Ethernet/Satellite |
Video loop | 1*BNC SDI or 1*HDMI |
Video resolution | Up to 1080P60Hz: SDI model:1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P23.98/24/25/29.97/30Hz; 720P50/59.94/60Hz HDMI model: 1080P23.98/24/25/29.97/30Hz; 1080P50/59.94/60Hz; 1080i50/59.94/60Hz; 720P/30/50/59.94/60Hz; below 1920×1200 |
Video encoding | H264/AVC, Motion-JPEG |
Audio encoding | AAC/G.711 |
Encoding latency | <67ms |
Media transmission protocols | SRT/RTMP/RTP/RTMPS/HLS/TS over UDP/RTSP /Onvif, customize for SIP |
Image and text overlay | Support custom text and picture overlay function, which can be superimposed to any position on the screen |
Record storage | Micro SD/TF card local recording, and NAS network storage |
Management | APP/ Web |
Power supply/Consumption | DC 12V 1A / 4W |
Operating temperature | -20℃~60℃ |
Size | 125*89*28mm (4.92”*3.50”*1.10”) |
Weight | 380g(13.4oz) |
