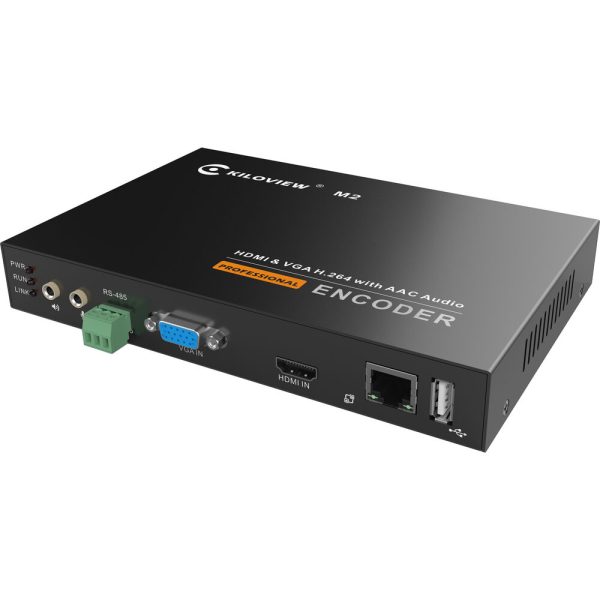

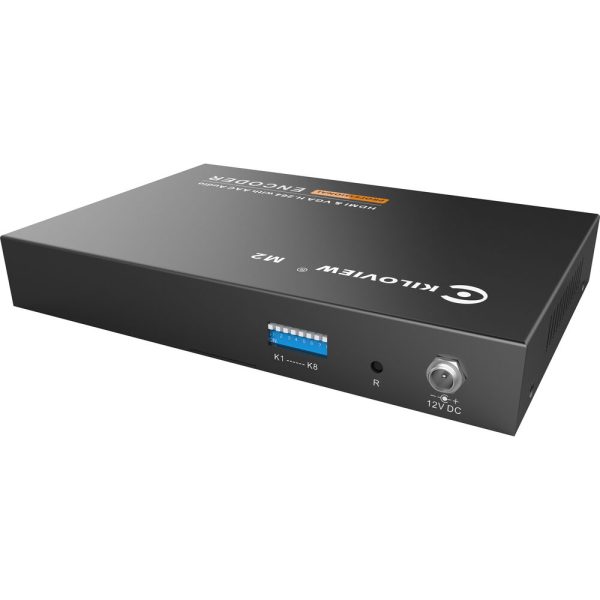

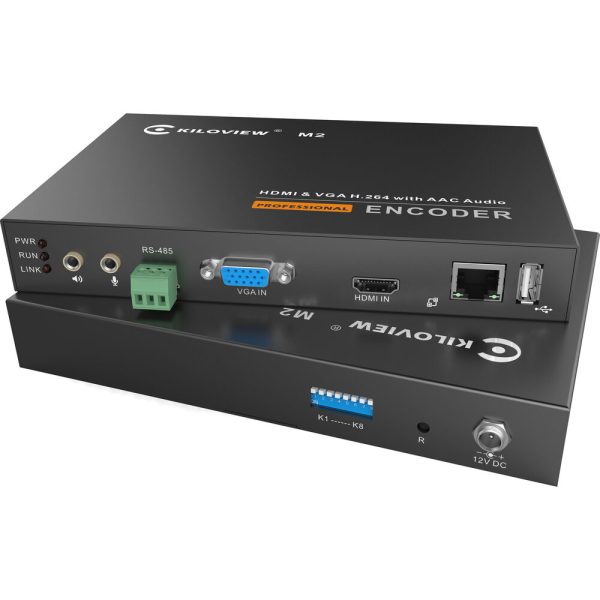

The Kiloview M2 is a professional dual interface HDMI+VGA video encoder, which encodes a VGA or HDMI video source into IP streams for video transmission over the Internet WAN or LAN through a wired network. The M2 uses the low-bitrate H.264 codec to ensure a high quality image at low bandwidth.
Wide Range of Protocols
M2 supports full range of protocols including RTSP/ RTMP/ RTMPS/ SRT/ HLS/ TS-UDP. This means a live stream with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time. It also supports ONVIF 1.1/2.0 for easy access to security NVR systems.
Multi-Platform Live
The M2 can output two simultaneous encoded videos at different resolutions, each with up to 8 streaming destinations.
LOGO/ Image/ Text Overlay
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.
Voice Intercom
The M2 supports embedded and 3.5mm analog audio encoding, so you can use Kiloview Intercom Software (KIS) for real-time communications between devices.
RS-485 Ready for PTZ
The M2 comes with the RS-485 interface and supports PTZ control, making your PTZ live broadcast more convenient and controllable.
Specifications
| Video interface | 1*VGA+1*HDMI |
| Analog audio interface | 2*3.5mm audio |
| USB interface | 1*USB 2.0 Type-A |
| Network support | Wired/Satellite |
| Video resolution | Up to 1080p60Hz, details as below: 1080P/1080i/720P/480P/576P/480i/576i (up to 60Hz) Compatible with VESA display resolution, up to 1920*1200@60Hz |
| Video encoding | H264/AVC, Motion-JPEG |
| Audio encoding | AAC/G.711 |
| Encoding latency | <67ms |
| Media transmission protocols | SRT/RTMP/RTP/HLS/TS over UDP/RTSP /Onvif |
| Management | APP/ Web |
| Power supply | DC 12V 1A |
| Power Consumption | 4w |
| Operating temperature | -20℃~60℃ |
| Size | 182*122*36 mm (7.16”*4.80”*1.42”) |
| Weight | 600g (21.2oz) |
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
