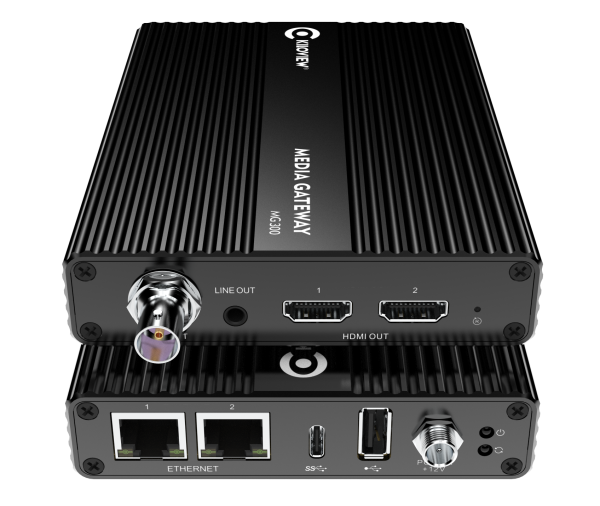

Kiloview MG300 V2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.
Streaming Protocol Conversion
The MG300 is compatible with NDI|HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP, and HLS. It supports decoding with all those different protocols and at the same time supports cross conversion of up to nine protocols.
Powerful IP Stream Function
Multi-channel video streams can be republished as a multiview video source with free layout and up to nine channels of IP streaming distribution (including the multiview video source) and each stream can be pushed to up to four same or different targets simultaneously.
Decoding Multiple Signals
The MG300 supports decoding up to UHD 4K H.264 and H.265 IP streams and it decodes the streams to output via 3G-SDI and HDMI. It supports decoding up to nine channels of videos simultaneously.
Low Latency and High Quality
Intelligent delay control technology achieves a less than 200ms decoding delay in a network environment. Image enhancement and fault-tolerant technology provides low code-encoded video, 10% of network packet loss video, and clear, distortion-free decoding output.
Display Customization
The output display can be either in grids or a free layout with customized design, PIP, PBP, and POP. The output resolution and frame rate are adjustable.
Video Previewing Functions
You can preview up to 16 streams of real-time video or images on its web page, from which you can choose nine of the streams for output.
Embedded Digital Audio
Digital audio is embedded on HDMI and 3G-SDI outputs, while a 3.5mm port provides an analog audio output.
Specifications
Inputs / Outputs
| Inputs/Outputs | 2 x RJ45 |
| Audio Inputs | 1 x 1/8″ / 3.5 mm TRS Female |
| Video Outputs | 1 x BNC (3G-SDI) Female 1 x HDMI |
| Audio Outputs | 1 x 1/8″ / 3.5 mm TRS Female |
| Other I/O | 1 x USB-A Control, 3.0 / 3.1/3.2 Gen 1 |
| Expansion Slots | None |
| Latency | HDMI Output: ≤ 200 ms SDI Output: ≤ 200 ms |
Format Support
| Output Video Format | HDMI UHD 4K at 30/60 fps 1080p at 24/25/30/50/60 fps 1080i at 50/60 fps 720p at 50/60 fps SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 60 fps |
| Embedded Audio | HDMI/SDI |
IP Streaming
| Video IP Encoding | NDI|HX2, RTMP, RTSP, SRT, TS, UDP |
| Video IP Decoding | H.264, H.265 |
| Audio IP Decoding | AAC, G.711: 8.0 to 320.00 Kb/s |
Power
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Power Supply: 12 VDC at 1 A (6 W) |
Environmental
| Operating Temperature | -13 to 140°F / -25 to 60°C |
General
| Dimensions | 5.5 x 4.1 x 1.1″ / 140 x 105 x 28 mm |
| Weight | 13.4 oz / 380 g |
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
