The Kiloview N50 is a bi-directional 4KP60 12G-SDI encoder and decoder that can convert 12G-SDI signals to NDI or NDI|HX, as well as decode NDI and NDI|HX out to 12G-SDI. In encoding mode the SDI output also functions as a loop-through output for monitoring your input signal.
Key Features
Better color performance: Up to YCbCr 4:2:2 and 10bits color depth
The N50 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available). N50 promises higher color and image quality, particularly to fulfill the needs in the broadcasting and medical imaging industries that bear no color fringing.
High quality ultra-low latency of end-to-end transmission
With ultra-low end-to-end latency, KILOVIEW N50 is a powerful bi-directional converter that supports every second of your 4K video transmission over IP.
- Encoding 4K 12G-SDI video signal into NDI and NDI|HX stream.
- Decoding NDI and NDI|HX streams into 12G-SDI.
- Loop-out for view on a monitor or projector.

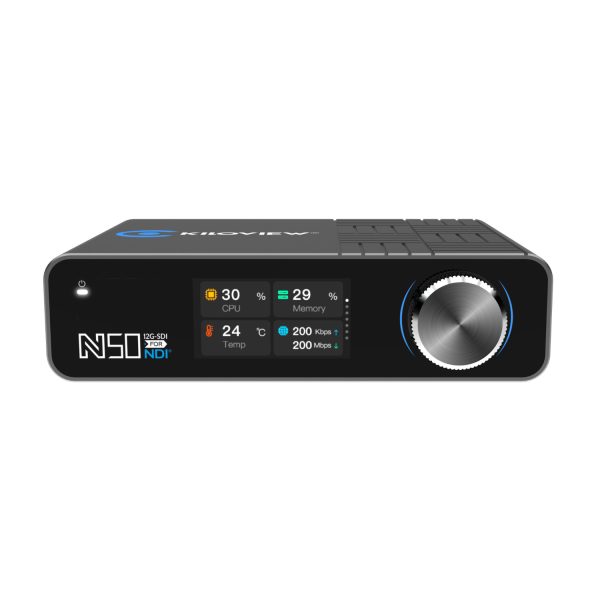

Large-sized Color LCD Screen and Scroll Wheel
The N50 is equipped with a big color LCD screen for users to check the unit parameters anytime, anywhere. It can also be used as a big tally and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real-time.
The scroll wheel enables users to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.
Audio and Intercom
N50 supports 12G-SDI embedded audio and 3.5mm analog audio encoding/decoding.
It supports an extended USB audio interface (e.g., USB headset), to realize an end-to-end real-time intercom among the Kiloview devices operators and the associated Kiloview Intercom System (KIS) group.
PTZ Control
Kiloview N50 supports PTZ control through USB to serial RS-232/RS-485/RS-422. N50 also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.
Internal Recording
The N50 provides a TF storage extension that eases your recording of encoded NDI video directly into a TF card in .MOV format. TF storage guards your recording and prevents you from losing video frames caused by network delay, interruption, or bandwidth fluctuation.
Specifications
| Video input | 1*4Kp60 12G-SDI 2.0 |
| Video output | 1*4Kp60 12G-SDI 2.0（Loop or decoding output） |
| Audio port | 1*3.5mm Line in 1*3.5mm Line out |
| Network | 2*RJ45 1000Mbps Ethernet port Ethernet 1 with PoE (IEEE 802.3AT, 24W Max) |
| Video resolution | Input: up to 3840×2160 60fps (4Kp60), lowest 720p50 Output (decoding or loop out): up to 3840×2160 60fps (4Kp60), lowest 720p50 |
| NDI® codec capacity | 1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding |
| NDI®CODEC feature | SpeedHQ (NDI CODEC): SHQ0, SHQ2 ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier |
| Audio encoding and decoding | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion |
| USB | 1*USB3.0 (type A) 1*USB3.0 (type C) |
| Human-computer interaction | 1.96〞LCD screen, KILOVIEW Magic Rotor |
| TF storage | Support TF card for recording, capacity up to 2TB |
| Tally | Built-in OLED panel available as front/rear Tally |
| Power | DC 12V （5.5/2.5）or PoE |
| NDI | Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future) |
| Typical Bitrates | SpeedHQ (NDI CODEC): 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps 480i60: 62.5MbpsAVC (H.264): Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60).HEVC (H.265): Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60). |
| Recording | TF card available for local storage to .mov filles. Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required). |
| Voice intercom | Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server. |
| PTZ | Support PTZ control through USB to serial RS232/485/422; or PTZ control over IP with different protocols, no extra cable required |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Firmware update | Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server |
| Mounting | Support cold-shoe mounting and V-mounting |
| Power Consumption | 16W Max |
| Certificates | CE/ FCC/ROHS |
| Dimension | 135.00*123.60*35.00mm |
