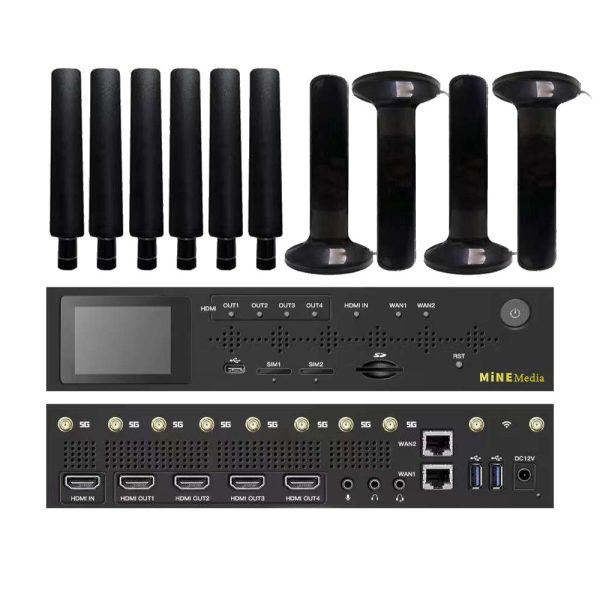

The A320H from MiNE Media is a multi-stream video decoder with 5G bonding and network aggregation capability. This compact and versatile device enables frame-synchronized decoding of multiple IP video signals which can be output to HDMI and IP formats, including SRT/RTMP/RTSP.
Using the four (4) HDMI outputs, the A320H can output up to three (3) 4Kp60 signals over HDMI2.0 and an additional 1080p60 signal over HDMI1.4. If using only a single channel the A320H has the unique capability to output 8Kp60 (7680×4320) over one HDMI2.1 connection.
With its multiple network interfaces, the A320H can aggregate video streams from bonding servers and direct RTMP/SRT stream inputs using its two built-in 5G network SIM slots (SIM cards and data plans not included), dual (2) Gigabit Ethernet ports, dual-band 2.4/5.8GHz WiFi 6, as well as up to two more 4G or wireless adapters using the 2x USB ports. There is also an SD card slot for recording videos in MP4 format.
The A320H can be controlled using the integrated 2-inch screen for basic parameters, while a browser interface and/or the MLive app for Android or iOS devices provide access to the full feature set.
