Description

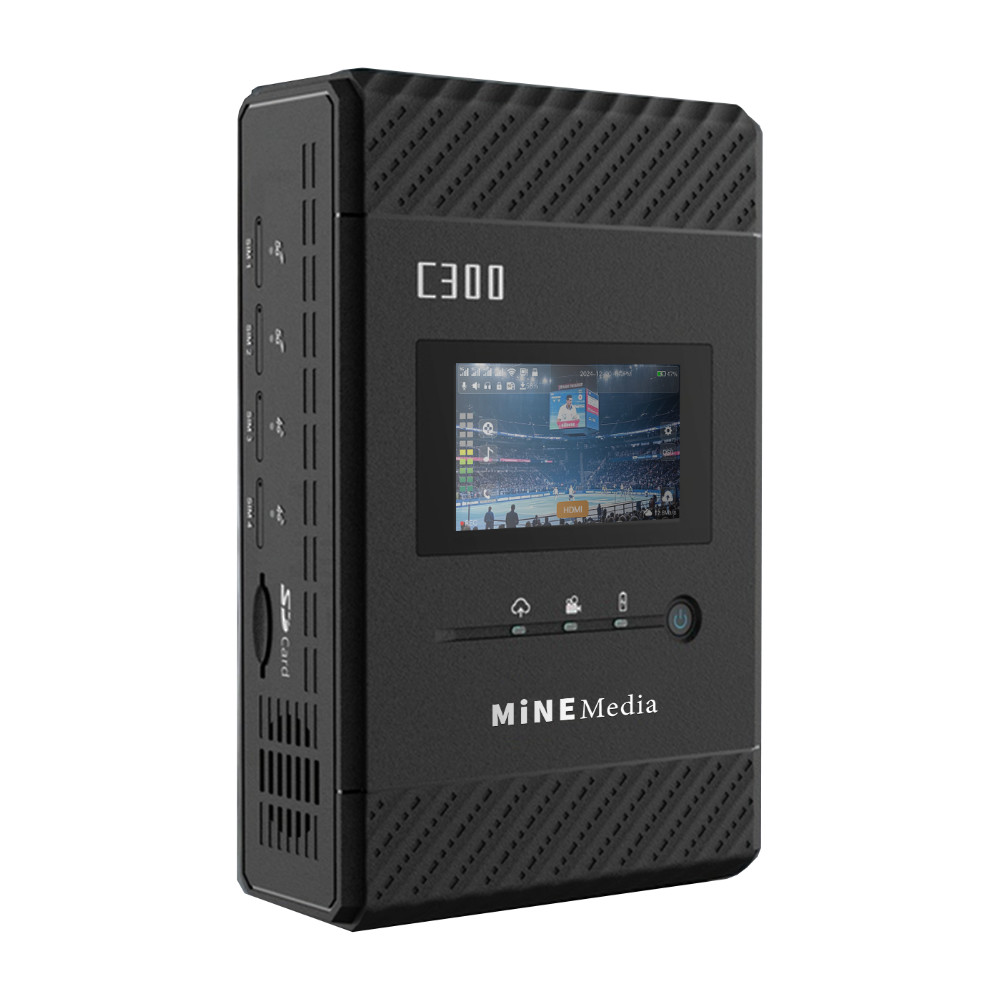

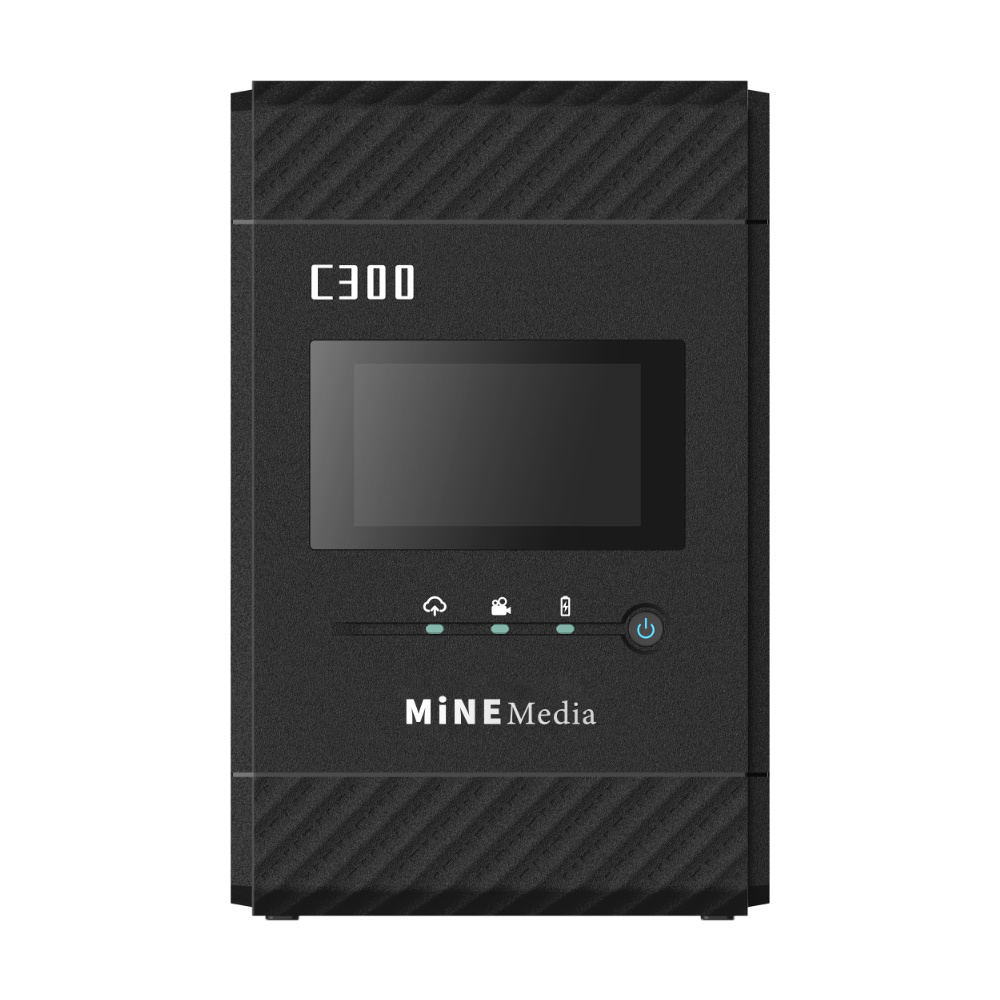

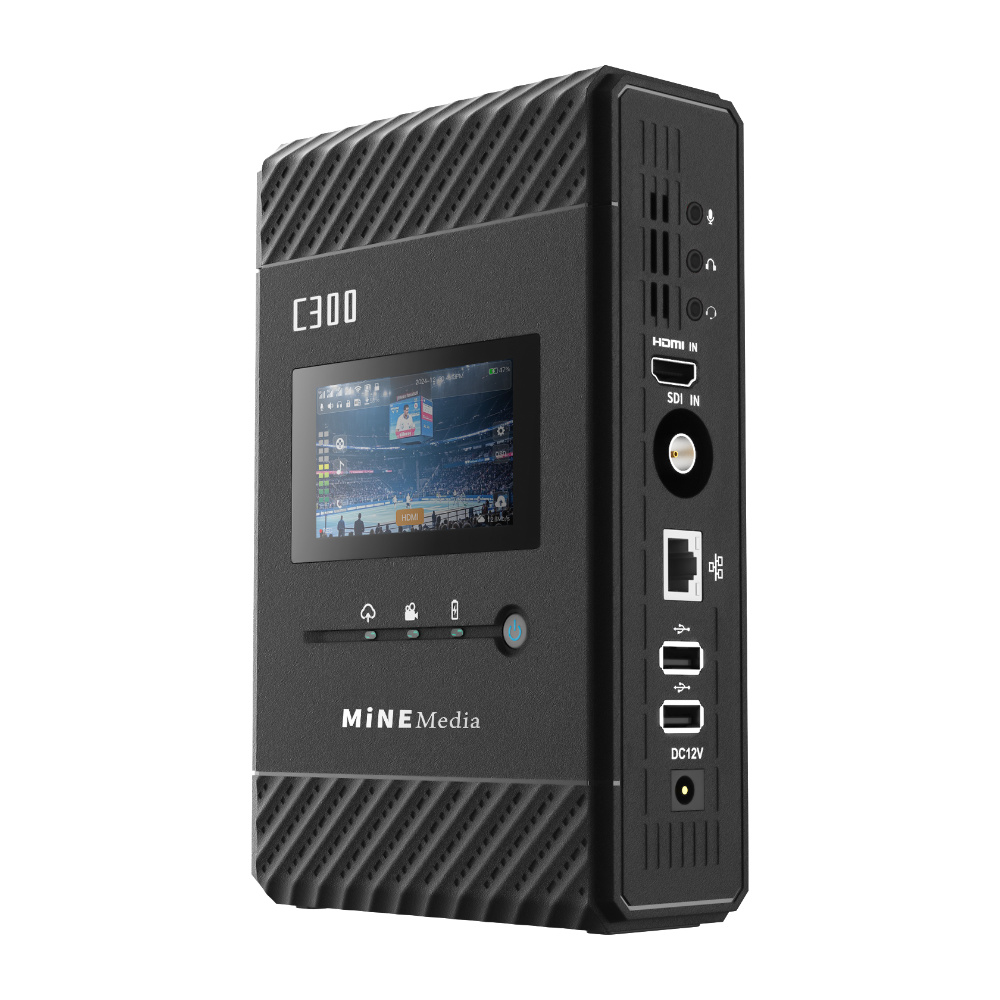

Mine Media C300 Bonding Encoder

High-speed and low-latency streaming over multiple 5G mobile networks

A solid and consistent internet connection is crucial for any live streaming event, but reliable network connectivity can be difficult to find in some locations. By combining bandwidth from 4G and 5G mobile networks, cellular bonding solutions can serve as a primary or secondary internet connection for live video streaming.

The C300 from Mine Media is an excellent way to achieve reliable uplink across cellular networks. The C300 can utilize up to two 5G SIM cards, two 4G SIM cards, two additional USB modems, built-in WiFi 6, and hardwired Gigabit Ethernet to achieve a solid, high-bandwidth signal.

In addition, where multiple camera sources are needed, such as a multi-camera sporting event, multiple C300 encoders can be frame-synchronized using Mine Media’s video decoder systems, such as the A321S and A319S.

For portable convenience in the field, the C300 comes with a small backpack. An optional larger backpack is also available to fit extra equipment and provide additional protection.

Key Features

  • 5G Multi network aggregation encoder, simultaneously bond up to 8 network links including support for 2x 5G LTE, 2* 4G LTE cellular, WiFi 6, Gigabit Ethernet, and 2x USB dongles.
  • Full HD H.265/H.264 Support – High-efficiency encoding for superior video quality at lower bitrates
  • Wide Connectivity – HDMI, 3G-SDI, and UVC inputs for multiple input options
  • Ultra-Low Latency – Ideal for live sports, gaming, and interactive streaming
  • Advanced AGC & Noise Reduction – Ensures optimal audio clarity in dynamic environments
  • Multi-Protocol Streaming – Supports RTMP, RTSP, SRT, HLS, and more for flexible delivery.
  • User-Friendly MLive App – Easy setup and remote management
  • Internal rechargeable battery provides up to 4 hours of continuous streaming

Technical Specifications

Video
Input 1x HDMI & 1x SDI
Resolution 480i: 720×480@59.94i
576i: 720×576@50i
1280×720@25p/30p/50p/60p/120p
1080p: 1920×1080@50i/60i
1080p: 1920×1080@25p/30p/50p/60p
Encoding Levels H.265 Main profile, H.264/AVC High / Main / Baseline Profile
Stream Resolution 480×270, 640×360, 848×480, 960×540, 1280×720, 1920×1080, 3840×2160
Encoding Video FPS 15-60FPS
Encoding Video Bitrate adjustable
Bitrate control VBR / CBR
Recording resolution Max 2160p30
TS Protocols RTMP(S) / SRT / RTSP
Audio
Input HDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio
Output 1*3.5mm dual-channel audio monitoring
Built-in Loudspeaker
Sample Rates 44.1kHz, 48.0 kHz
Encoding AAC
Network
4 SIM Slots Built-in 5G module (2) & 4G module (2)
WiFi 2.4G/5.8G dual-band WIFI access
RJ-45 Gigabit Ethernet network port
USB External 4G dongle, USB network card can be used
Storage SD card (Max 2TB)
Power
Power supply DC12 3A
Battery Capacity 7.4V/12000mAh
Maximum consumption 38W
System
Control Panel iOS / Android APP
Firmware Update supports
Remote management supports
Working Environment
Operating temperature -20 to 80 deg C
Storage temperature -40 to 90 deg C
Relative Humidity 5% to 90% non-condensing
Dimension & Accessories
Dimension 4.84″ x 7.48″ x 1.97″ [123mm x 190mm x 50mm]
Weight 1.72 lbs [780g]
Additional information
Weight 4 lbs
Dimensions 12 × 12 × 7 in
