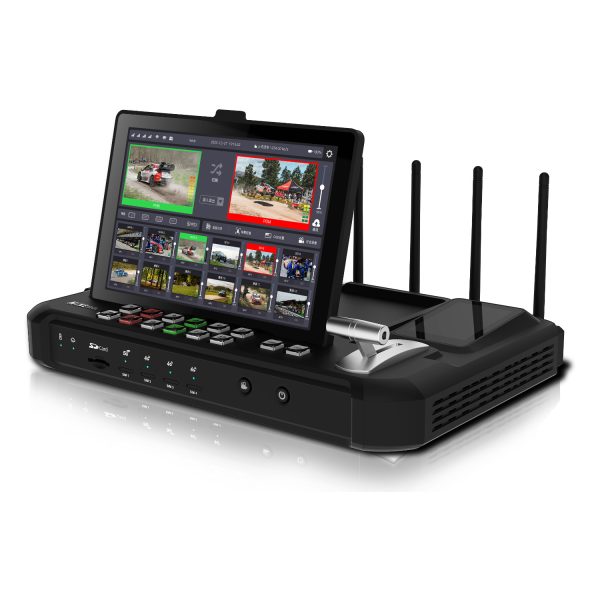

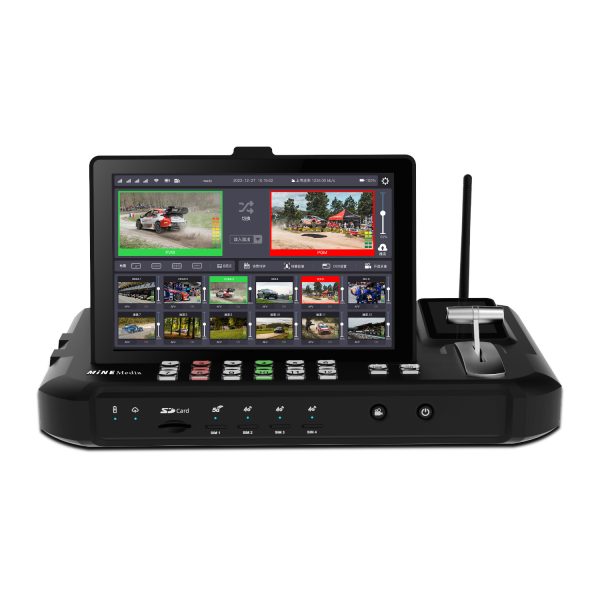

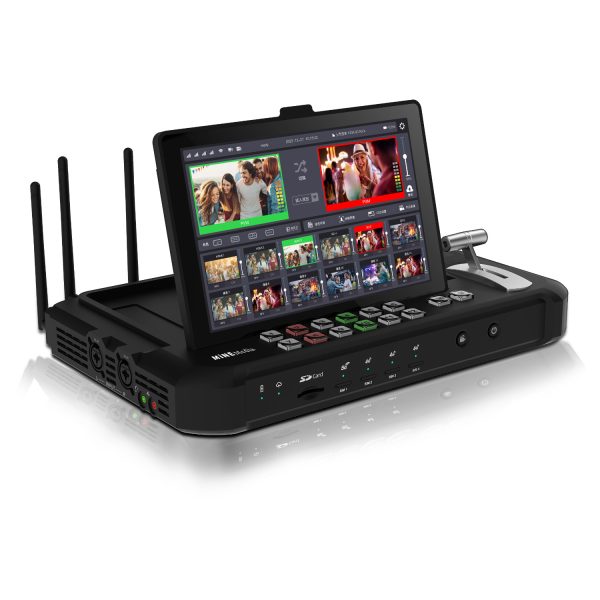

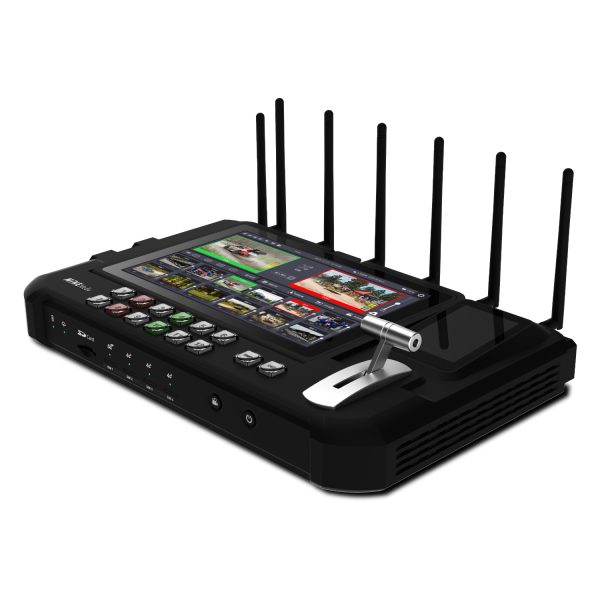

Mine Media R10 – All-In-One Portable Video Switcher with Network Bonding

The R10 portable streaming video switcher offers seamless integration of frame-synchronized video switching and 5G/4G cellular network live streaming within a compact and durable production system. Unlike many portable switchers that are restricted to a single video source type, the R10 adeptly manages HDMI, SDI, and network video inputs. Additionally, it features a variety of network uplink options, such as hard-wired Gigabit Ethernet, WiFi, and several mobile network choices through its four 5G and 4G LTE SIM card slots.

Key Features

• Multi-source switching of HDMI, SDI, and IP video inputs
• 12 total inputs – 3x SDI, 3x HDMI, 6x Network Streams (RTMP)

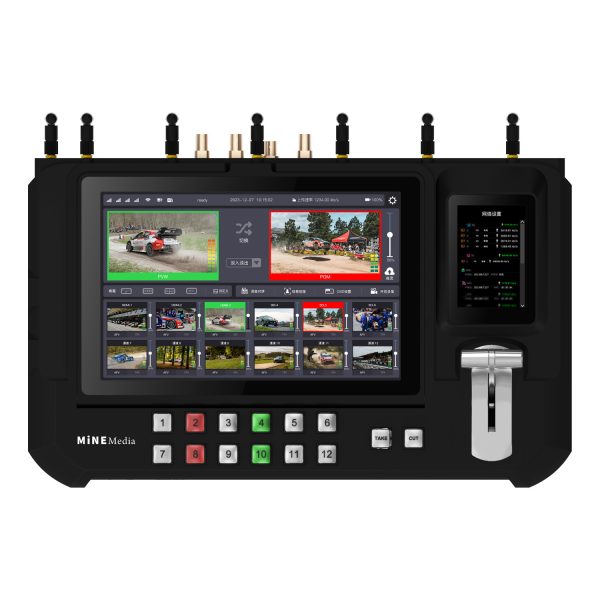

• 10.1-inch HD touch screen and 3.5-inch secondary screen
• Brightly lit red/green LED backlit keys for Preview/Program, Cut, and Take
• High-quality metal T-bar with built-in transitions
• Chroma key feature for green-screen keying of talent over backgrounds
• Multiple video input layouts, such as Picture-in-Picture (PiP) Picture-outside-Picture (PoP), 2×2 grid, and custom layouts
• Customizable image and text overlays
• Stream out over Ethernet (2x RJ-45), WiFi, or cellular network (Bonding requires additional subscription to MLive bonding server)
• 1x 5G and 3x 4G LTE SIM slots
• Frame-synchronization of network inputs
• SD card slot for recording and loading files
• 2x USB Type-A ports for additional network dongles
• USB Type-A port for UVC video streaming to computer
• Horizontal or vertical video input and streaming modes

Technical Specifications

Video

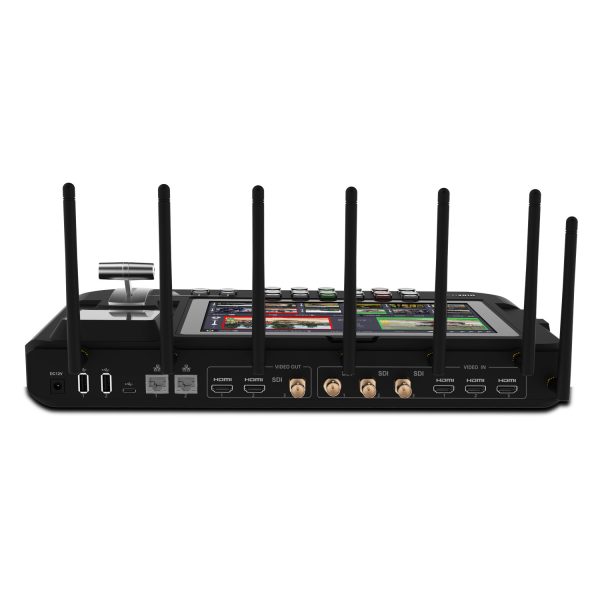

• Inputs: 3x 3G-SDI, 3x HDMI, 6x Network Streams
• Outputs: 2x HDMI, 1x SDI
• Input Formats: 1080p60/50, 1080i60/50, 720p60/50
• Live Streaming Formats: Up to 1920×1080 at 60 fps, with adjustable framerate and bitrate
• Streaming Protocols: RTMP, RTMPS, RTSP, SRT

Audio

• Inputs: 2x Balanced XLR inputs, 3.5mm intercom microphone input
• Outputs: 3.5mm stereo audio headphone output
• Format: MP3
• Compression: AAC

Display

• Primary Screen: 10.1-inch 1920×1080, touch enabled
• Secondary Screen: 3.5-inch, non-touch

Network

• Ethernet: 2x RJ-45 Gigabit Ethernet ports
• Wireless: Dual-band 2.4/5.8GHz WiFi 6
• Cellular: 1x 5G, 3x 4G LTE SIM card slots (cards and mobile data plans not included)
• USB: 2x USB Type-A ports for additional 4G dongles or USB network adapters

Recording

• Recording Resolution: Up to 1920×1080 at 60 fps, with adjustable framerate and bitrate
• Storage Interface: SD card, up to 512GB
• File System: FAT32; exFAT
• File Format: MP4 H.264/H.265 with AAC audio

Power

• Input: 12V DC ~5A
• Max Power Consumption: 25W
• Battery Capacity: 12,000mAh, 7.4V
• Battery Life: ~2 hours

Physical

• Dimensions: 15.55″ x 9.45″ x 1.97″ / 395mm x 240mm x 50mm
• Operating Temperature: 0°C – 40°C
• Operating Humidity: Less than 95% (non-condensing)
• Storage Temperature: 5°C – 40°C
