Description

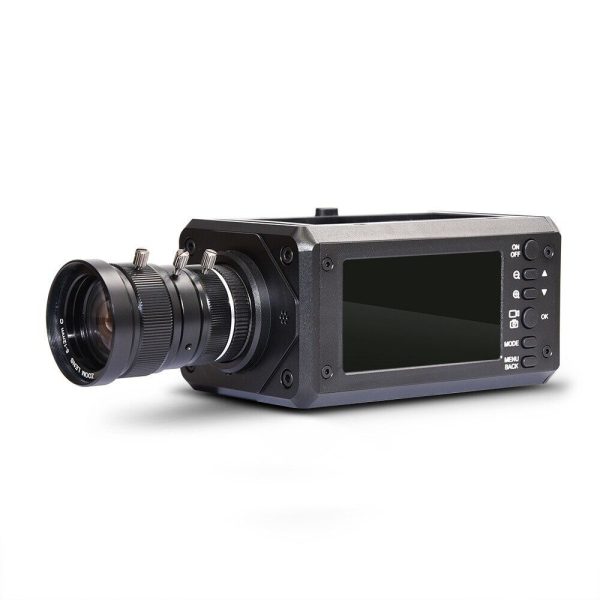

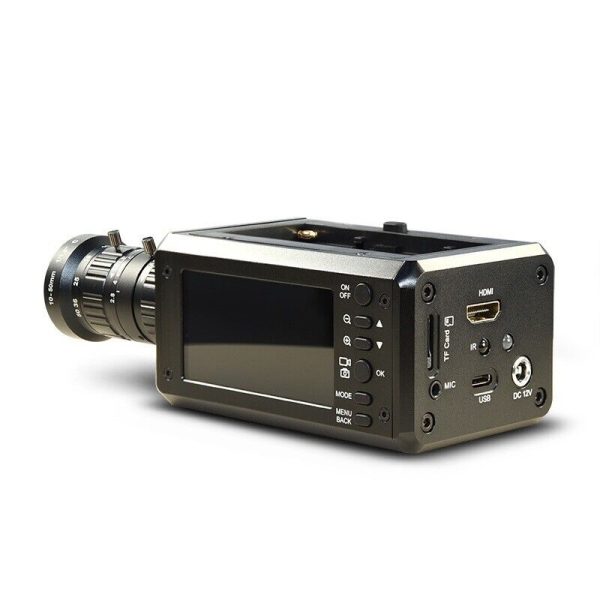

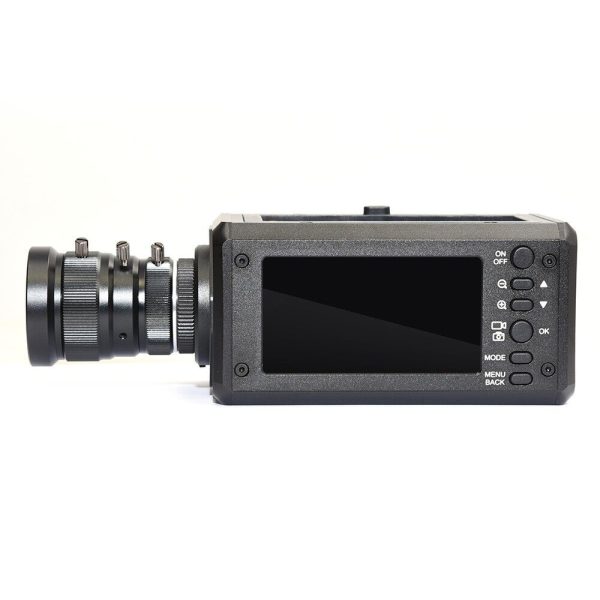

The POV 4K View from PTZCam Solutions is a rugged, compact POV (point-of-view) camera designed for streaming video applications such as podcasting, worship broadcasting, and sports streaming. Its small size, high-resolution 4K video output, and convenient 3-inch LCD screen make it easy to set up and integrate with most production equipment like switchers, encoders, and monitors.
Key Features
- Full-sized HDMI 1.4 output, up to 3840×2160 at 30 fps (2160p30) or 1080p60
- USB Type-C port for webcam UVC/UAC video to computers, up to 1080p30
- 3-inch LCD screen on the side works as a viewfinder and access to the settings menus.
- NPF/DV format battery mount works with most standard NPF camera batteries
- CS lens mount works with hundreds of readily available lenses – 5-12mm zoom lens is included.
- Capture audio using the built-in condenser microphone or plug in an external microphone via the 3.5mm input port.
- 1/4″-20 thread mount on the base works with most standard tripods and other supports.
Specifications
| Sensor | Sony IMX577 Exmor R CMOS 1/2.3” |
| Resolution | 12MP |
| Video recording resolution/FPS | 3840 x 2160@30FPS / 2560 x 1440@30FPS / 1920 x 1080@60FPS / 1920 x 1080@30FPS / 1280 x 720@60FPS / 1280 x 720@30FPS |
| Video Format | MP4 |
| HDMI output | 2160P/30/25/24fps, 1080P60/50/30/25fps, 1080i60/50fps, 720P60/50fps |
| Battery types supported | NP-F980, F970, F960, F770, F750, F550 |
| External microphone | 3.5mm / 1/8″ input |
| USB output | 1920 x 1080@30FPS / 1280 x 720@30fps / 640 x 480@30fps |
| USB standard | UVC / UAC |
| Support system | Windows / OS X / Linux |
| Audio formats | Record video / Video Playback / USB Mode with Audio HDMI output without Audio |
| Time Lapse Recording | 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2 minutes, 5 minutes, 30 minutes, 1 hour |
| Burst Recording | 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2 minutes, 5 minutes, 30 minutes, 1 hour |
| Digital Zoom | HDMI output mode or screen output only |
| Power | Long press camera “ON / OFF” button power off |
| Lens Mount | C/CS |
| Exposure | Auto / Manual |
| ISO | Auto / Manual (100~1600) |
| Electronic shutter | Auto / Manual (1/10~1/2000S) |
| EV | 12 level manual Settings |
| White Balance | Auto / Manual |
| Storage | Supports 256GB (Max) TF card, Fat32 or Exfat only |
| Power Mode (HDMI Output） | DC 12V 1A / 2A, 5V 2A thru USB interface (such as power bank） |
| Power Mode (USB Output） | USB Type-C power input |
| Loop Recording | 3 / 5 / 10 mins each document Loop recording and OFF (15 mins recording for each file at 4K) |
| Screen Orientation | Supports screen rotation 180 degrees and mirroring |
| Housing | Aluminum |
| Camera Size (Without lens） | 4.52″ (L) x 2.75″ (H) x 2.16″ (W) / 115 x 70 x 55mm |
| Product Weight (Without lens) | 0.67 lbs / 306g |
