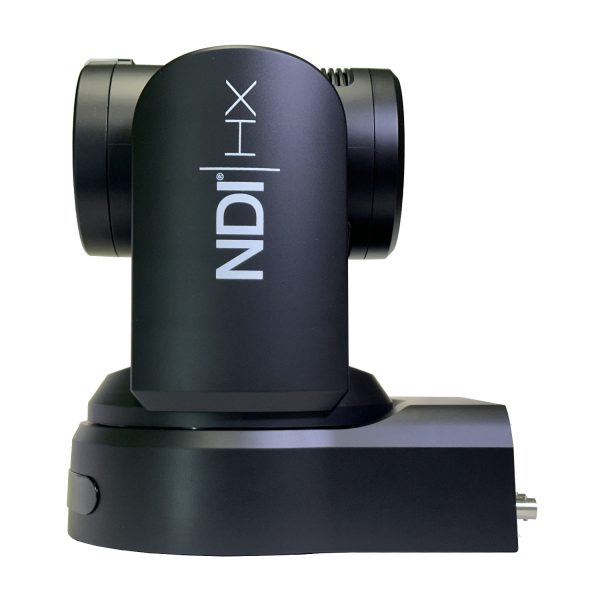

The RAPTOR X30 from PTZCam Solutions delivers pristine 4K UHD video and abundant connectivity in an affordable and compact PTZ camera. With features surpassing cameras from many well-known brands, the RAPTOR X30 shines in almost any live production environment- from boardrooms to classrooms, and studios to stages.
The cost to produce 4K video has decreased significantly in recent years. Even if you’re not planning to distribute content in 4K right now, it’s still cost-effective to invest in 4K cameras and other infrastructure today to be ready for the future. The RAPTOR X30 lets you future-proof your production without breaking the bank.
Key Features
- 3840 x 2160 (UHD) resolution up to 60 fps – Meets standard 4K television and streaming requirements
- 30X optical zoom allows for close-up image capture in large spaces
- Dual simultaneous 12G-SDI outputs and HDMI 2.0 output allow for integration with professional broadcast gear
- NDI|HX3 – High quality, low-bitrate encoding and integration with the vast NDI ecosystem
- IP streaming – Built-in H.265 encoding and streaming to multiple network video formats, including RTMP, RTSP, SRT, and ONVIF
- FreeD – Send precise camera positioning and lens data to virtual production software such as Aximmetry, Unreal Engine, and others
- Flexible control – Support for most common PTZ protocols, such as VISCA, PELCO-P/D, ONVIF, and NDI
- Tally light – Stay in control of your on-air talent with the two-color tally.
Technical Specifications
| Optical Specifications | CMOS Sensor | 1/1.8” CMOS |
| Zoom | 30X | |
| Effective Pixels | 8.3 Megapixels | |
| Video Format | 2160P60/59.94 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50 | |
| Optical Zoom | 30x Optical Zoom 12X Digital Zoom |
|
| Focus Length | { =7.1 ~211.95mm | |
| HFOV | 2.5°(T) ~59.2°(W) | |
| Iris | F1.61 ~ F 5.19 | |
| Min Illumination | 0.05 lux (F1.61) | |
| Digital Noise Reduction | 2D&3D Noise Reduction | |
| White Balance | Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW | |
| Focus mode | Manual/Auto/Z- Trigger | |
| Iris mode | Manual/Auto | |
| BLC | 1-8/OFF | |
| Picture adjustment | Brightness, Hue, Saturation, Contrast, Sharpness | |

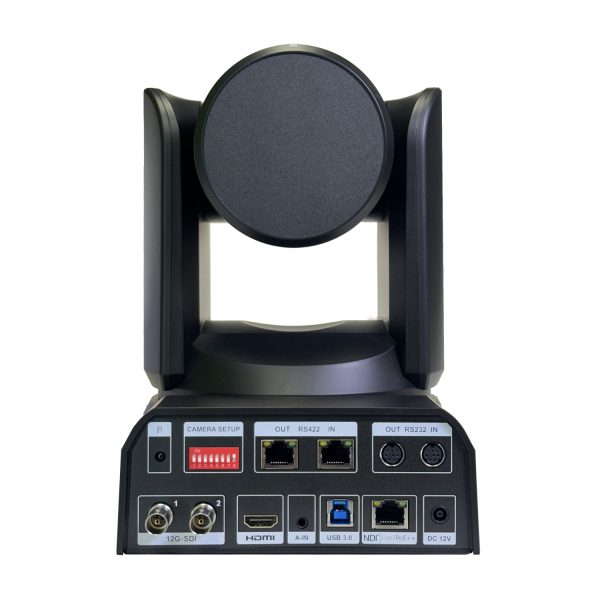

| Inputs & Outputs | Video Output Interface | HDMI2.0、3G-SDI*2 or 12G-SDI*2、RJ45、USB3.0 |
| Video Compression Format | H.264、H.265、MJPEG | |
| Control interface | 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out, 1X RJ45 | |
| Control Protocol | VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC (only for USB interface） | |
| Baud Rate | 2400/4800/9600/19200/38400bps | |
| Audio Input | Dual channel 3.5mm line input | |
| Audio Compression | ACC、G711A、G711U | |
| Network Interface | 1000M Internet Access(10/100BASE-TX) | |
| Network Protocol | RTSP、RTMP、ONVIF、NDI|HX3、SRT、GB28181、VPN | |
| Power Interface | DC-038 Outlet (DC12V) | |
| Pan/Tilt Mechanical Parameters | Pan Rotation Anglee | -173°~+173° |
| Tilt Rotation Angle | -30° ~+90° | |
| Horizontal rotation speed range | 0.1 ~100°/s | |
| Vertical rotation speed range | 0.1-80°/s | |
| Presets | Max Support for 255 Presets | |
| General Parameters | Power Adapter | AC100V~AC240V Input, DC12V/2A Output |
| Input Voltage | DV12V | |
| Power Consumption | 15W(MAX) | |
| Storage Environment | -10°C ~ +60°C / 20% ~ 95% | |
| Working Environment | -10°C ~ +50°C / 20% ~ 80% |
