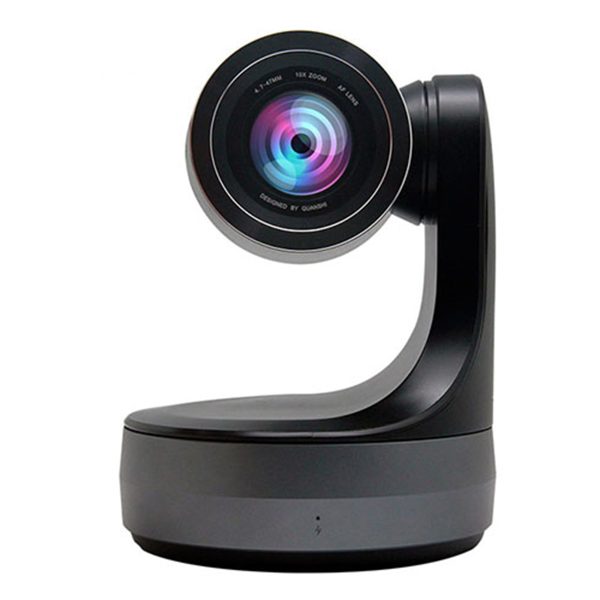

The PTZ Cam USB Elite 12 is a simple and affordable Full HD PTZ Camera featuring a 12X optical zoom lens with USB and HDMI outputs. This compact and elegant camera makes a great option for conference rooms, classrooms, churches, or any live streaming setup.
With the USB interface attached to any computer it appears as a webcam, yet the pan/tilt/zoom functions can be controlled using software such as vMix.
Technical Specifications
| Image Sensor | SONY 1/2.8 Progressive CMOS | |
| Effective Pixels | 3.1 Megapixels | |
| Video Output | HDMI: 1080P60/50, 1080P30/25, 1080i60/50, 720P60/50 | |
| USB 2.0: MJPG/H.264:320*240,640*480, 800*600,1280*720,1920*1080 | ||
| Video Format | PAL/NTSC | |
| Lens | 12X optical zoom f=3.9mm(w)~46.8mm(f) F1.8~F2.8 | |
| Viewing Angle | 72.5°(W)~7.4°(T) | |
| Focus System | Auto/Manual | |
| Minimum Illumination | 0.1 Lux | |
| Exposure Control | Auto/Manual | |
| Shutter Speed | 1/1～1/10,000s | |
| Gain | Auto/Manual | |
| White Balance | Auto/Manual | |
| Image Effect | Full color/black and white/Electronic flip | |
| S/N Ratio | ≥50db | |
| Pan | 355°(max. speed:80°/s) | |
| Tilt | ﹣30° to +30° (max. speed: 60°/s) | |
| Preset Position | 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller | |
| Video Output HD | HDMI, USB 2.0 | |
| Control Protocol | SONY VISCA, PELCO D | |
| Control Mode | USB | |
| Power | 12V DC (10.8～13.0V DC) | |
| Operating Temperature | 0~40℃ | |
| Storage Temperature | -20-60℃ | |
| Weight | 2.08 lbs (0.945 kg) | |
| Color | Black | |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, HDMI Cable, USB cable, Ceiling bracket | |
