Capture your meetings, conferences, concerts and more with incredible clarity using the PTZCam UV401 4K PTZ camera.
Watch our helpful video overview

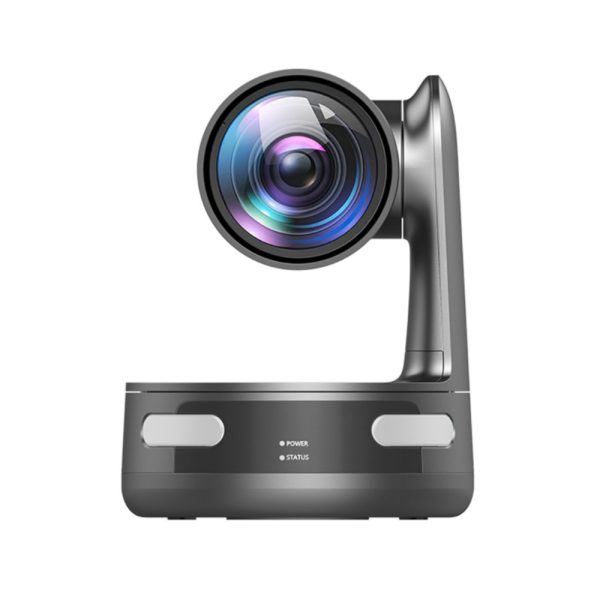

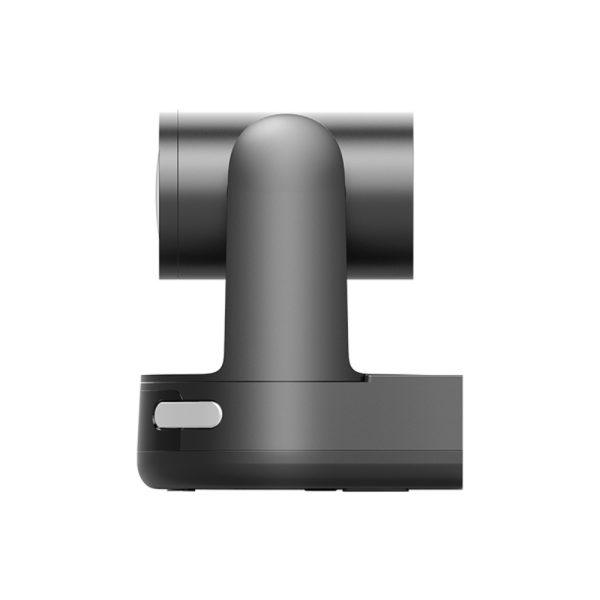

This compact camera has an elegant design that fits into any environment, while boasting a 1/2.5-inch SONY CMOS Sensor which can output up to 4K 3840 x 2160 resolution video at 60 fps (frames-per-second).
Connectivity includes an HDMI 2.0 port, USB 3.0 port, and RJ-45 network (LAN) port. Not only can the UV401 deliver 4K video locally using the HDMI output, but it can simultaneously stream 4K video over your network through the LAN port in multiple formats including ONVIF, RTMP, RTSP, RTP, and NDI|HX. This makes the UV401 very useful as both a local broadcasting camera, streaming camera, or both at the same time.
Technical Specifications
| Model | UV401A |
| Optical Zoom | 12X |
| Focus | f=3.85 mm～43.06 mm ±5% |
| FOV | Horizontal：7.59˚（tele）～ 80.4˚（wide）
vertical：4.6˚（tele）～ 50.0˚（wide） |
| Aperture | F1.8～F3.56 ± 5% |
| Image Sensor | 1/2.5 Inch SONY CMOS Sensor |
| Effective pixels | 8.51M; 16:9 ratio |
| Video Format | HDMIVideo Output Format:
4KP60, 4KP50, 4KP30, 4KP25, 1080P60, 1080P50, 1080i 60, 1080i 50, 1080P30, 1080P25, 720P60, 720P50 USB3.0 Video Output Format: YUY2/NV12: 1920×1080P30, 1280×720P30,1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30,1920×1080P30,1280×720P30,1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 USB3.0 compatible with USB2.0: YUY2/NV12: 640×360P30, 640×480P30, 320×176P30 MJPEG/H.264: 3840×2160P30, 1920×1080P30, 1280×720P30, 1024×576P30, 960×540P30, 800×448P30, 640×360P30, 640×480P30, 320×176P30 |
| Minimum Illumination | 0.05Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto / Manual/ One Push/ Specified Color Temperature |
| Focus | Auto / Manual/ One Push |
| exposure mode | Auto/ Manual / Shutter Priority / Aperture Priority / Brightness priority |
| Aperture | F1.8～F11, CLOSE |
| shutter speed | 1/25～1/10000 |
| BLC | OFF/ON |
| Dynamic range | OFF/ Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | ≥50dB |
| Input/Output Interface | |
| Interfaces | HDMI, LAN (POE), USB 3.0（Type B, compatible with USB 2.0), A-IN, RS232-in & out
RS-422 (Compatible with RS-485), Dial switch, 12V DC input, Power Switch |
| Video Compression
Format |
LAN: H.264, H.265
USB 3.0: MJPG, H264, YUY2, NV12 |
| Audio Input Interface | Double track 3.5mm linear Input |
| Audio out | HDMI, LAN, USB3.0 |
| Audio Compression | AAC, MP3, G.711A |
| Network Interface | 10M/100M/1000M adaptive Ethernet port, support POE and audio/video output |
| Network Protocol | RTSP, RTMP, ONVIF, NDI|HX, GB/T28181, Network VISCA Control Protocols Supports remote upgrade, reboot and reset |
| Control Interface | RS232-IN, RS232-OUT, RS422 (Compatible with RS485) |
| Serial Communication Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 |
| USB Communication Protocol | UVC (video), UAC (audio) |
| Power | HEC3800 outlet (DC12V) |
| Power Adapter | Input: AC110V-AC220V ; Output: DC12V/2.5A |
| Input Voltage | DC12V±10% |
| Input Current | <1A |
| Power Consumption | <12W |
| PTZ Parameter | |
| Pan Rotation | -170°～+170° |
| Tilt Rotation | -30°～+90° |
| Pan Control Speed | 0.1°/s～120°/s |
| Tilt Control Speed | 0.1°/s～80°/s |
| Preset Speed | Pan: 120°/s, Tilt: 80°/s |
| Preset Number | 255 Presets (10 presets by remote control) |
| Other Parameter | |
| Stored Temperature | -10℃～+60℃ |
| Stored Humidity | 20%～95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%～80% |
| Dimension | 6.2 in (157.5mm) L × 7.44 in (189mm) W × 7.913 (201mm) H |
| Weight(around) | 5.732 lbs (2.60 kg) |
| Application | Indoor |
| Accessory | |
| Package | Power supply, RS232 control cable, USB3.0 connection cable, Remote Controller, User Manual |
| Optional Accessories | Ceiling / Wall Mount (Extra Cost) |
