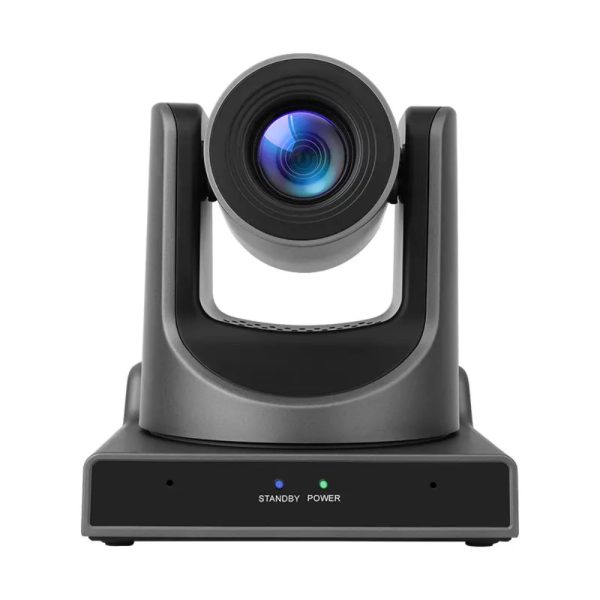

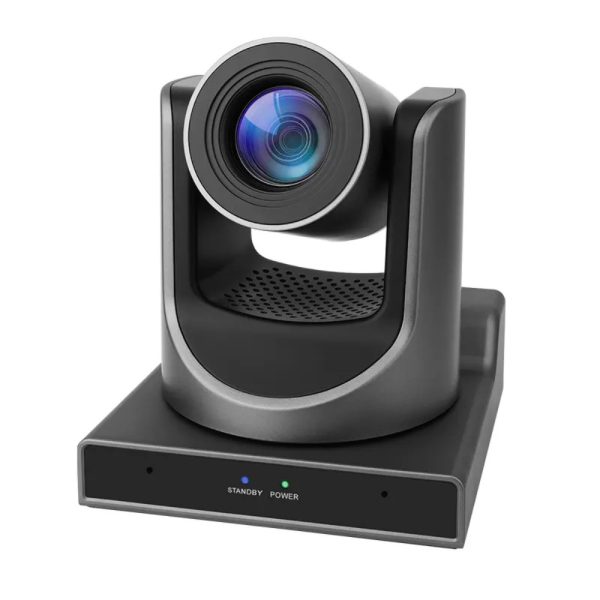

PTZCam V30HB High-Bandwidth NDI/SDI/HDMI PTZ Camera with 30x Optical Zoom

The V30HB PTZ camera from PTZCam Solutions is a high-definition, robotic pan/tilt/zoom camera with a wide range of features that make it useful for any live streaming situation.

Key Features

• HDMI, 3G-SDI, USB, and IP video output
• AI-enabled presenter auto-tracking
• High-bandwidth DNI (aka, “HB NDI” or “Full NDI”) network video output
• NDI|HX2 out for lower bandwidth installations
• Compact and light-weight
• 30X optical zoom lens
• Remote control using serial (RS-232 and RS-485) or USB

Specifications

Optical & Motion

• Sensor: 1/2.8-inch CMOS, 2.07 megapixels, progressive scan
• Focal Length: 30x optical, 4.42mm ~ 132.6mm, F1.8 ~ F2.8
• Shutter Speed: 1/30s ~ 1/10000s
• Minimum Illumination: 0.5 Lux @ (F2.0, AGC ON)
• White Balance Modes: Auto, Indoor, Outdoor, One Push, Manual
• Noise Reduction: 2D&3D Digital Noise Reduction
• Signal-to-Noise Ratio: ≥ 55dB
• Horizontal FOV: 60.7° to 2.28°
• Vertical FOV: 34.1° to 1.28°
• Panning Range: ±170° from center
• Panning Speed: 1.7° to 100°/s
• Tilting Range: -30° (down) to +90° (up)
• Tilting Speed: 1.7° to 69.9°/s
• Image Modes: Flip, Freeze Frame

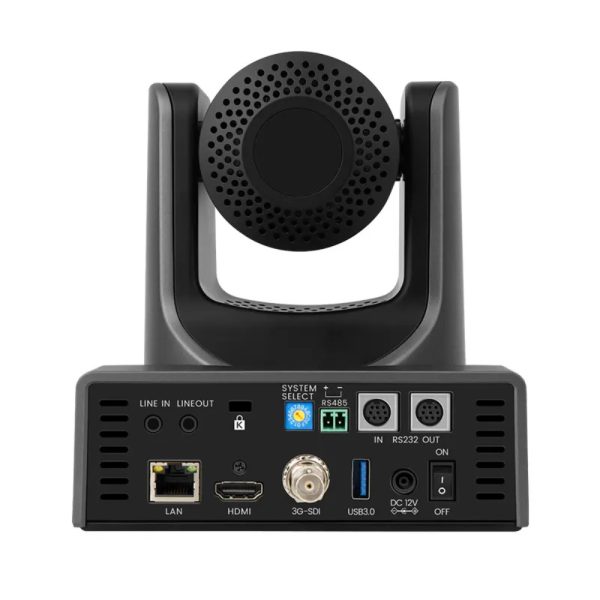

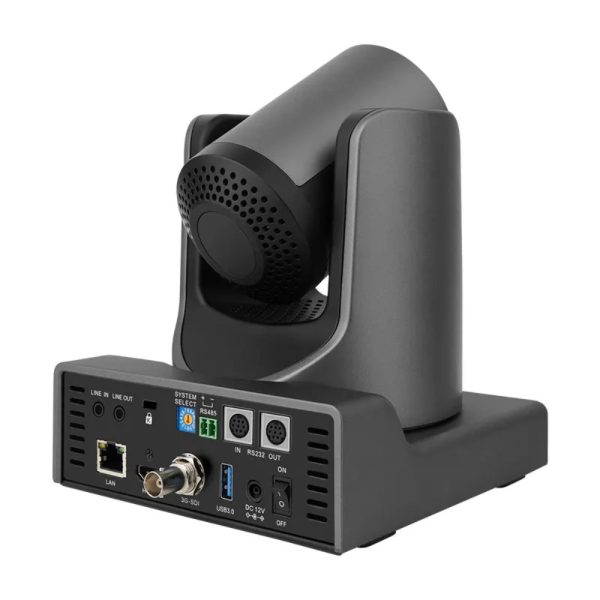

Interfaces

• Uncompressed Video Outputs: 1 x HDMI: Version 1.3; 1 x 3G-SDI: BNC, 800mVp-p, 75Ω, as SMPTE 424M standard
• Network Interface: 1 x RJ-45: 10M/100M/1000M adaptive Ethernet with POE support
• Audio Interfaces:
  • Built-in dual microphones,  100Hz to 16KHz frequency response
  • 1 x Line In, 3.5mm Jack
  • 1 x Line Out, 3.5mm Jack
  • Embedded digital audio (HDMI, USB, LAN, SDI)
• Control Interfaces:
  • 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;
  • 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P;
  • 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
• Power: 12V DC input, POE

Network

• Network Video Protocols: NDI®|HB, NDI®|HX, NDI®|HX2, TCP/ IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, SRT
• Video Compression: H.265 / H.264
• Video Streams: First Stream (max 1920×1080), Second Stream (max 1280×720)
• Video Bitrate:
  • Bandwidth: 32Kbps to 102.4Mbps
  • Modes: Constant Bitrate (CBR), Variable Bitrate (VBR)
• Frame Rate: 1fps to 60fps
• Audio Compression: AAC
• Autio Bitrate: 96Kbps, 128Kbps, 256Kbps

USB Features

• Operating Systems Supported: Windows® 10/11 or higher, macOS™ 10.10 or higher, Google ™ Chromebook ™ Version 29.0.1547.70 or higher, Linux (support UVC)
• Color Profile: YUY2 H.264
• Video Compression Format: MJPEG
• Communication Protocol: UVC1.1 and UVC1.5
• Audio: UAC2.0, 32K Sampling Rate

General Specifications

• Input Voltage: DC 12V / PoE (802.3af)
• Input Current: 1.0A (Max.)
• Operating Temperature: -10° C ~ 40° C
• Storage Temperature: -40° C ~ 60℃
• Power Consumption: 12W (Max.)
• Dimensions: 6.65″ x 5.59″ x 6.45″ (169mm x 142mm x 164mm)
• Net Weight: 2.97 lbs (1.35Kg)
