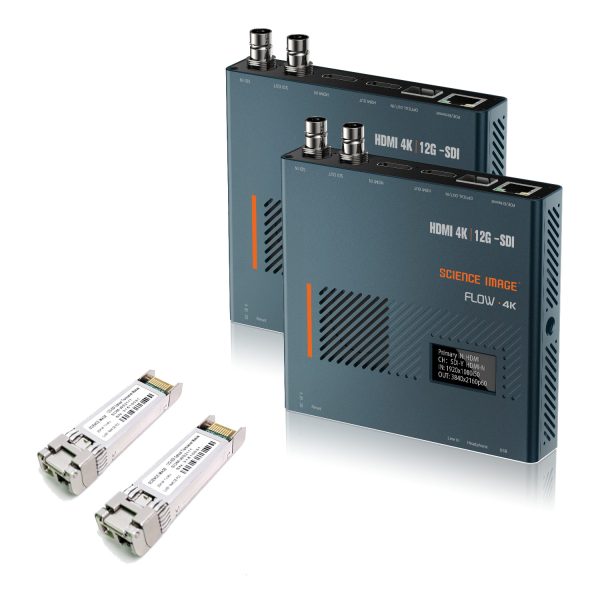

4K 12G-SDI Conversion Over Fiber Bundle – Buy two Science Image FLOW 4K converters and get two FREE 12G-SDI fiber SFP modules and a 5% discount
Science Image FLOW 4K Key Features:
- 12G-SDI Input / Output, HDMI 2.0 Input / Output
- Convert to and from any HD/4K video format from 720p50 to 2160p60
- 1.3-inch OLED screen with status, video format, IP address, etc.
- Audio Embed/De-Embed, Tally, Intercom, USB PTZ control
- RJ-45 Gigabit Ethernet network interface
- PoE or 12VDC power input
Technical Specifications
SDI Video Format
| SDI video format | |
| 1.5G/3G-SDI HD video format | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60 |
| 6G/12G-SDI/Ultra HD /4K video format | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI specification | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
HDMI Video Format
| HD video format | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60 |
| 4K video format | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI video sampling | 4:2:2 and 4:4:4 |
| SDI audio sampling rate | TV standard 48kHz |
| SDI color accuracy | 4:2:2 and 4:4:4 |
| SDI color space | REC 709 BT2020 |
| HDMI color space | REC 709 BT2020 |
| HDMI color accuracy | YUV 4:2:2 and RGB 4:4:4 |
Format Conversions
| Interface | |
| SDI video input | 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching |
| SDI video output | 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching |
| HDMI video input | 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible |
| HDMI video output | 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible |
| Optical fiber input and output (Optical transceiver function temporarily closed) | 1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical fiber modules |
| RJ45 Gigabit Ethernet port | 1 x RJ45 Gigabit Ethernet interface |
| LINE IN audio input port | 1 x LINE IN 3.5mm audio input port for external analog audio embedding |
| MIC input and output port | 1 x Mic 3.5mm audio input and output port |
| Display | |
| 1.3 inch OLED screen | 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate. |
| Physical | |
| size | 125mm x 115mm x 24mm |
| weight | 360g |
| material | all aviation aluminum milling |
| Power supply | |
| Two power supply modes | 5-18V DC power input and POE |
| Power consumption | 10W |
| Environmental | |
| Operating temperature | 5°C to 40°C |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative humidity | 0% to 90% non-condensing |
| Packing List | FLOW 4K
quick start manual 12V universal power supply (includes four sets of international conversion plugs) |
| Warranty | 1 year limited manufacturer’s warranty |
