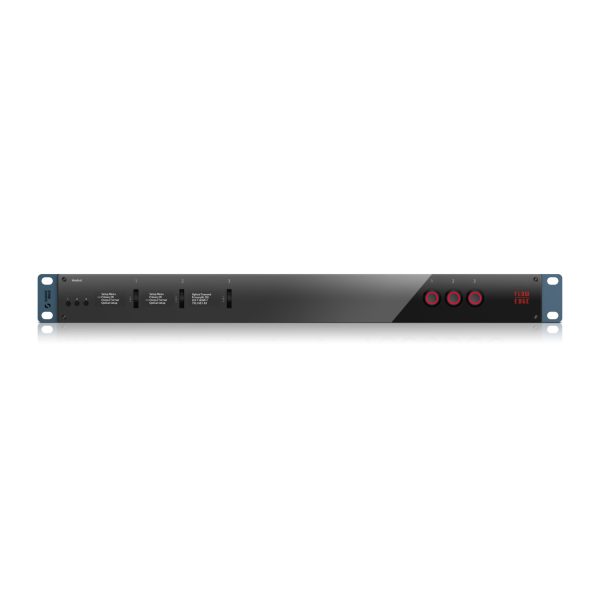

The Flow Edge 3CH by Science Image is a three-channel, 1U rack-mount video format converter that supports up to 35 formats. It features a powerful combination of connectivity and flexibility, making it ideal for a wide range of studio broadcast and event production purposes.
Capture, convert, and transmit virtually any SMPTE-compatible format up to 3840×2160 at 60fps over 12G-SDI, HDMI 2.0, and fiber. The Flow Edge 3CH can be controlled remotely over a network using the built-in Gigabit Ethernet connection or the front-panel scroll wheel and LED display.
Key Features
- 3-Channel Rack-mount Up/Down/Cross Converter with Fiber TX/RX and Analog Audio In/Out
- Up/Down/Cross Conversion of 35 formats
- Video I/O: 3x 12G-SDI Input & Outputs, 3x HDMI 2.0 Input & Outputs, up to 2160p60
- Audio I/O: 3x 3.5mm stereo headphone outputs, 3x 3.5mm stereo line-in inputs
- Display: 3x 1.3-inch OLED screens with status, video format, IP address, etc.
- Control: Scroll wheel buttons for direct menu operation, Web UI control
- Audio function: Audio Embed/De-Embed from stream, 2-way Intercom per channel
- Network: 3x RJ-45 Gigabit Ethernet, 3x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
- Power: AC power input, 3x LED illuminated power buttons
