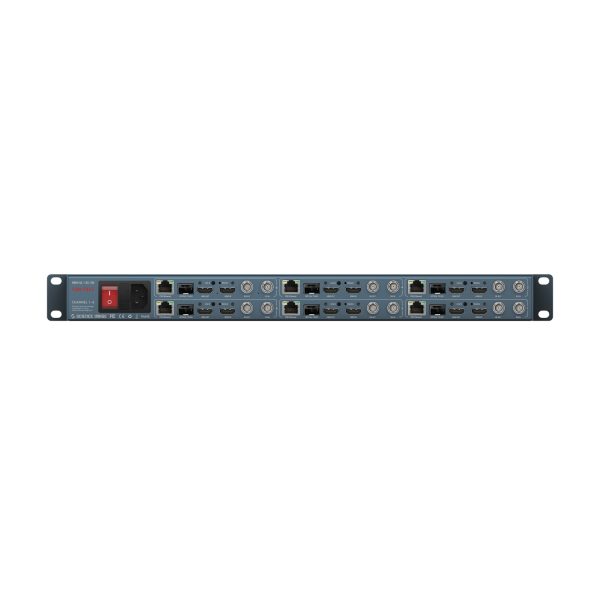

The Flow Edge series from Science Image takes the versatility of the popular FLOW 4K and FLOW 2 converters and fits it into a single rack unit with centralized power. This makes building a multi-source, multi-destination rack kit that much easier. The Flow Edge design allows up to 6 channels of up/down and cross conversion of virtual any video format up to 4K at 60 fps, using both HDMI 2.0 and 12G-SDI connections.
Each channel of the Flow Edge has its own dedicated LED screen, menu control wheel, network port, video input/output, audio input/output, and power button. Choose from one to six channels in the same 1U, short-depth chassis.
Key Features
- 6-Channel Rack-mount 4K 12G-SDI/HDMI Up/Down/Cross converter with Fiber TX/RX and Analog Audio In/Out; Up/Down/Cross Conversion of 35+ formats
- Video I/O: 6x 12G-SDI Inputs & Outputs, 6x HDMI 2.0 Inputs & Outputs, up to 2160p60
- Audio I/O: 6x 3.5mm stereo headphone outputs, 5x 3.5mm stereo line-in inputs
- Display: 6x 1.3-inch OLED screen with status, video format, IP address, etc.
- Control: 6x Scroll wheel button for direct menu operation, Web UI control
- Audio function: Audio Embed/De-Embed from stream, 2-way Intercom per channel
- Network: 6x RJ-45 Gigabit Ethernet, 6x optical fiber SFP+ interfaces (for optional 12G-SDI transceiver)
- Power: AC power Inputs, 6x LED illuminated power buttons
