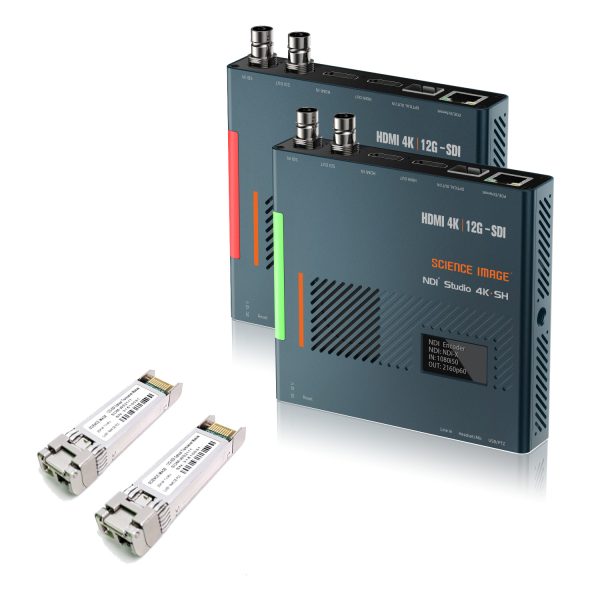

Science Image – Bundle with Two (2) 4K.SH Bi-Directional 4K NDI Converters and Fiber SFP Modules

$1,898.00

BUY NOW

4K NDI Over Fiber Bundle – Buy two Science Image 4K.SH converters and get two FREE 12G-SDI fiber SFP modules and a 5% discount

Compare
Add to wishlist
SKU: USBD-4KSH-SFP-FREE Categories: , , , , , , , , , , , , ,
Description

4K NDI Over Fiber Bundle – Buy two Science Image 4K.SH converters and get two FREE 12G-SDI fiber SFP modules and a 5% discount

Science Image NDI Studio 4K.SH Key Features:

  • Bi-Directional Full NDI Encoder/Decoder
  • 12G-SDI Input / Output, up to 2160p60; HDMI 2.0 Input / Output up to 2160p60
  • 1.3-inch OLED screen with status, video format, IP address, etc.
  • Large, semi-transparent tally light block
  • Audio Embed/De-Embed, Tally, Intercom, USB PTZ control
  • RJ-45 Gigabit Ethernet network interface
  • PoE or 12VDC power input

Technical Specifications

Video Format

SDI video format
1.5G/3G-SDI HD video format 720p50,  720p59.94,  720p60,  1080i50,  1080i59.94, 1080i60, 1080p23.98,  1080p24,  1080p25,  1080p29.97,  1080p30,  1080PsF23.98,  1080PsF24,  1080PsF25,  1080PsF29.97,  1080PsF30,  2K DCI 23.98p,  2K DCI 24p,  2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD /4K video format 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
HDMI video format
HD video format 720p50,  720p59.94,  720p60,  1080i50,  1080i59.94,  1080i60, 1080p23.98, 1080p24,  1080p25,  1080p29.97,  1080p30, 1080PsF23.98,  1080PsF24,  1080PsF25, 1080PsF29.97,  1080PsF30, 2K DCI 23.98p, 2K DCI 24p,  2K DCI 25p, 1080p50,  1080p59.94,  1080p60
4K video format 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI video sampling 4:2:2 and 4:4:4
SDI audio sampling rate TV standard 48kHz
SDI color accuracy 4:2:2 and 4:4:4
SDI color space REC 709     BT2020
HDMI color space REC 709     BT2020
HDMI color accuracy YUV 4:2:2 and RGB 4:4:4

UpDown conversion format supported by NDI Studio 4K•SH

Interfaces
SDI video input 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
SDI video output 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
HDMI video input 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
HDMI video output 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
Optical fiber input and output 1 x SMPTE optical fiber SFP socket, 12G-SDI optical Transceiver modules
RJ45 Gigabit Ethernet port 1 x RJ-45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals
LINE IN audio input port 1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC Intercom input and output port 1 x Mic 3.5mm audio input and output port (De-Embed), used for NDI Intercom (with Laudo software required)
USB 2.0 Type A port 1 x USB 2.0 Type A interface, used to control a third-party PTZ camera
Display
1.3 inch OLED screen 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
Tally Light Large-size semi-transparent matte TALLY light guide block with three TALLY states transmitted through NDI in real time:  Green/Preview, Red/Program

Network and requirements Gigabit Ethernet switch and Gigabit Ethernet card.
Software, operating system, support platform Built-in Linux, application control software Science Image Laudo.

Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher.

Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers.
Physical
size 125mm x 115mm x 24mm
weight 370g
material all aviation aluminum milling

Power supply
power supply requirements Three power supply modes: 9-18V DC, POE (802.11af/at), USB
power consumption 18W
Accessories
Optical Module 12G-SDI /HDMI 4K SFP Optical Module
Environmental
Operating temperature 5°C to 40°C
Storage temperature -20° to 60° C (-4° to 140° F)
Relative humidity 0% to 90% non-condensing
Packing List NDI Studio 4K.SH
Quick start manual
12V universal power supply (includes four sets of international conversion plugs)

Warranty 1 year limited manufacturer’s warranty



Additional information
Weight 6 lbs
Dimensions 12 × 8 × 6 in
Manufacturer Part Number USBD-4KSH-SFP-FREE
Brand

Brand

Science Image
