Large-Scale vMix Production Switcher and Control Panel for Live Events

16 channels of 3G-SDI in a compact, 4U frame with 20-stripe control surface

The Switchblade Systems LPU4 is a powerful and flexible live production platform for multi-camera switching, graphics, replay, recording, and streaming. Designed around vMix live production software, the LPU4 offers high-end processing, storage, and a multitude of video connection options to give you full access to all the features of vMix. And like all Switchblade products, the LPU4 is backed by amazing technical support and know-how to keep your broadcast running.

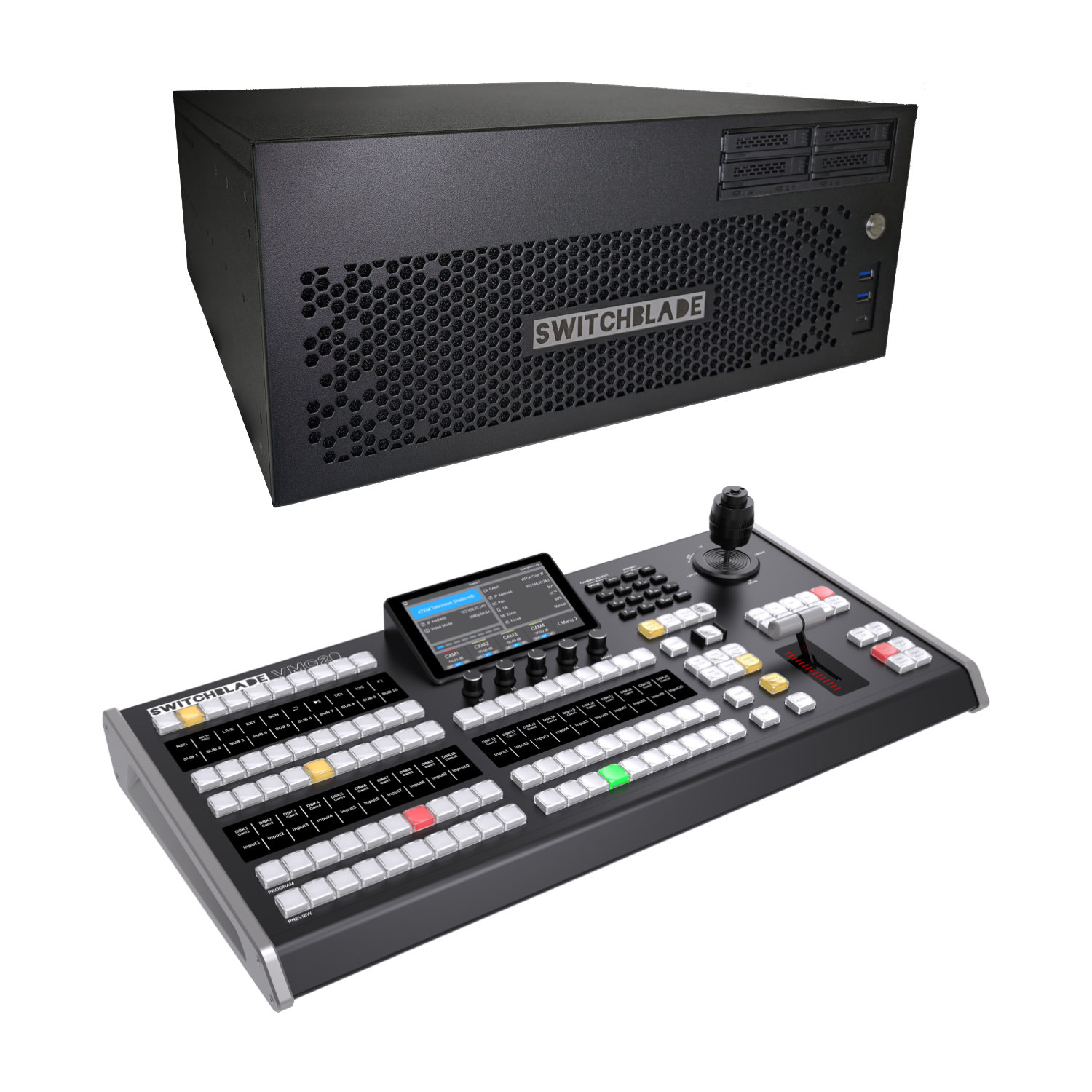

This special bundle comes with the Switchblade VMC20 control surface, forming a turnkey solution for large-scale multi-camera productions

Key Features

• Powered by vMix 4K software – Lifetime license included
• 12x 3G-SDI inputs with full-sized BNC connectors
• 4x Bi-directional 3G-SDI connectors, configurable as inputs or outputs
• 4x DisplayPort outputs for a user interface monitor, plus up to 3 external displays
• Supports both SDI and IP inputs, including NDI, NDI|HX, RTMP, RTSP, and SRT
• 4 SRT outputs
• 4 NDI outputs
• Stream to up to 3 destinations simultaneously
• ISO recording on multiple channels
• Two independent recording channels for program records and backup
• Remote caller input support, including direct integration with Zoom
• Replay and slow-motion
• Titling software for animated text, graphics, scoreboards, and tickers
• PTZ control
• Playlist automation
• Video lists of pre-recorded video files
• Advance scripting for more control

Technical Specifications

• Video Inputs: 8x 3G-SDI (up to 1080p60)
• Video Inputs / Outputs: 4x 3G-SDI (up to 1080p60)
• Sync: 1x Genlock input
• Audio I/O: 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line-out
• Storage: 1TB NVMe Solid State Drive
• Processor: 20-core Intel Core i7-1400KF
• Memory: 32GB DDR5 RAM
• Graphics: NVIDIA RTX A5000 with 24GB GDDR6 RAM
• Operating System: Windows 11 Pro
• Dimensions: 16.89″ x 17.00″ x 6.96″ / 429mm x 432mm x 176.75mm
• Weight: 40 lbs. / 18.1kg

More about the Switchblade VMC20 – Professional Broadcast Control Surface for vMix

The Switchblade VMC20 is a compact, feature-rich video switcher control panel designed to bring professional-grade switching capabilities to any live production environment. Compatible with both Blackmagic Design ATEM switchers and vMix live production software, the VMC20 offers unmatched flexibility for studios, mobile production trucks, and portable flypacks—anywhere space is at a premium.

The VMC20 supports up to 20 direct channels, with an additional 20 channels accessible via a SHIFT key, giving operators control over up to 40 video sources. Each channel features a crisp monochrome OLED display that clearly shows the channel name, making it easy to keep track of multiple inputs in fast-paced production settings.

A built-in 5.5-inch full-color display provides easy access to the system’s settings and configuration menus, while an ergonomic PTZ joystick and dedicated preset buttons give you smooth, precise control over pan-tilt-zoom cameras. Switching between camera shots and presets has never been faster or more fluid.

Crafted from heavy-duty milled aluminum and featuring bright, responsive buttons, the VMC20 is built to withstand the rigors of field production while maintaining a sleek, modern aesthetic. Its compact footprint makes it an ideal choice for mobile production vans, OB trucks, and any situation where space and weight matter.

The Switchblade VMC20 compares favorably with the Blackmagic Design ATEM 1 M/E Advanced Panel 20, offering many of the same high-end features in a smaller, more affordable package—with the added bonus of powerful N-Keys software control for unparalleled versatility.

Key Features

• Compatible with Blackmagic ATEM switchers (Ethernet) and vMix live production software (USB)
• Supports up to 40 video channels (20 direct + 20 via SHIFT)
• OLED displays above each button for clear source labeling
• 5.5-inch full-color settings display (non-touch)
• Built-in PTZ joystick and PTZ preset control buttons
• N-Keys section with:
  • 20 programmable buttons
  • Full-color OLED grid
  • Custom control of vMix, OBS, Wirecast, XSplit, and more
• Five rotary knobs for audio level adjustments
• Powered via POE+ or external power adapter
• Heavy-duty milled aluminum chassis with illuminated buttons
• Compact, space-saving design—ideal for OB vans and portable productions
• More affordable and versatile than traditional ATEM control panels
