Large-Scale vMix Production Switcher and Control Panel for Live Events

24 channels of 3G-SDI or 6 channels of 12G-SDI in a compact, 4U frame with 24-stripe control surface

The Switchblade Systems LPU4 Elite 24 is a powerful and flexible live production platform for multi-camera switching, replay, graphics, recording, and streaming. Designed around vMix live production software, the LPU4 Elite 24 offers high-end processing, storage, and a multitude of video connection options to give you full access to all the features of vMix. And like all Switchblade products, the LPU4 Elite 24 is backed by amazing technical support and know-how to keep your broadcast running.

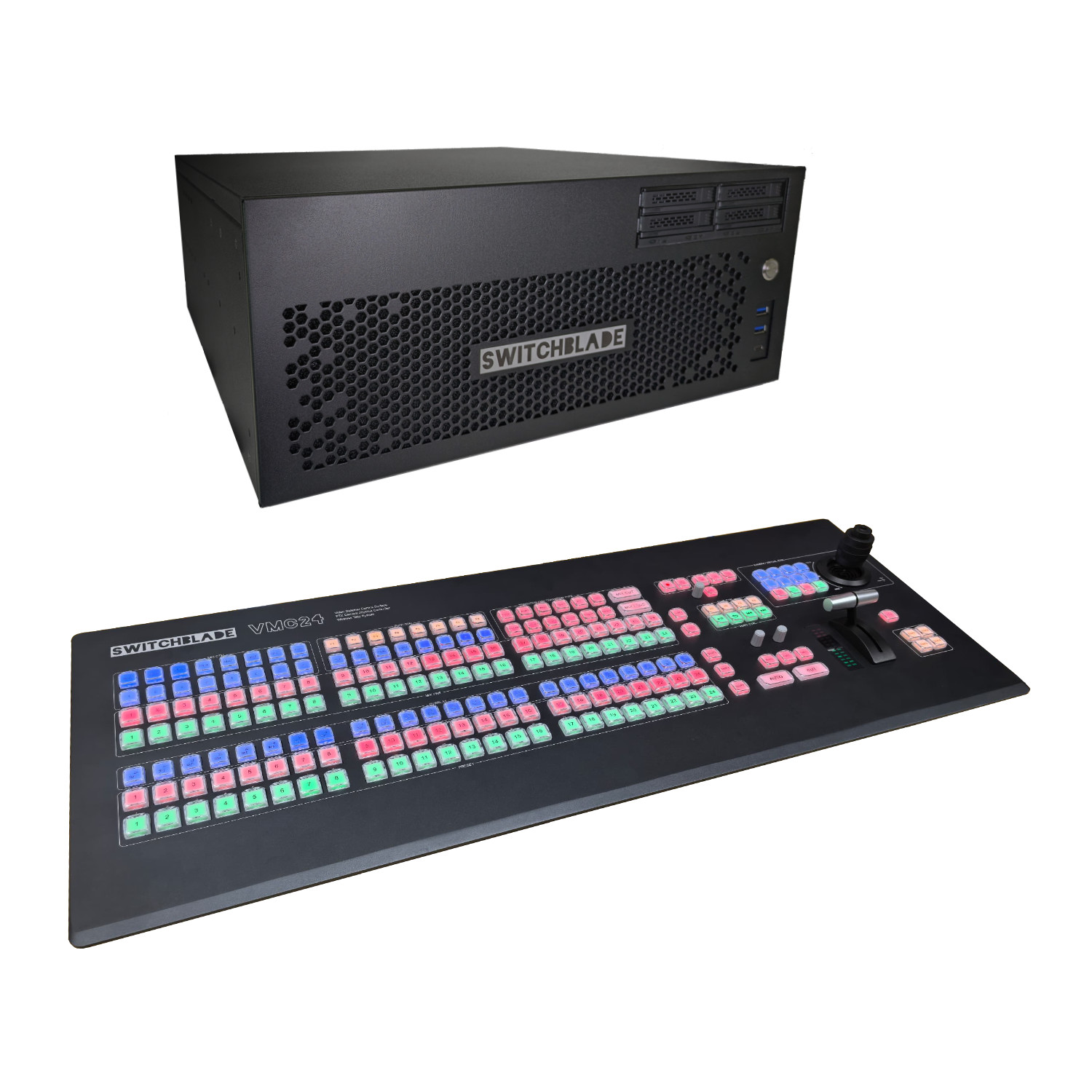

This special bundle comes with the Switchblade VMC24 control surface, forming a turnkey solution for large-scale multi-camera productions

Key Features

• • Powered by vMix Pro software – Lifetime license included
  • 24x 3G-SDI bi-directional channels, up to 1060p60 per channel or 6x 12G-SDI channels, up to 2160p60 per channel
  • 4x DisplayPort outputs for a user interface monitor, plus up to 3 additional displays
  • Supports both SDI and IP inputs, including NDI, NDI|HX, RTMP, RTSP, and SRT
  • 4 SRT outputs
  • 4 NDI outputs
  • Stream to up to 3 destinations simultaneously
  • ISO recording on multiple channels
  • Two independent recording channels for program records and backup
  • 8 remote callers using vMix Call
  • Direct integration with Zoom
  • 8-channel replay and slow-motion
  • Titling software for animated text, graphics, scoreboards, and tickers
  • PTZ control
  • Playlist automation
  • Video lists of pre-recorded video files
  • Advance scripting for more control

Technical Specifications

• • Video I/O: 24x 3G-SDI bi-directional inputs/inputs (Micro-BNC – requires adapters to convert to full-sized BNC)
  • Audio I/O: 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line-out
  • Storage: 1TB NVMe Solid State Drive (system), 2TB NVMe Solid State Drive (recording/playback)
  • Processor: 24-core AMD Ryzen Threadripper 7960X
  • Memory: 64GB DDR5 RAM
  • Graphics: NVIDIA RTX A5000 with 24GB GDDR6 RAM
  • Network: 1x 10Gb/s Ethernet RJ-45 port, 1x 2.5Gb/s Ethernet RJ-45 port
  • Operating System: Windows 11 Pro
  • Dimensions: 16.89″ x 17.00″ x 6.96″ / 429mm x 432mm x 176.75mm
  • Weight: 40 lbs. / 18.1kg

More about the Switchblade VMC24 – Professional Broadcast Control Surface for vMix

Introducing Switchblade VMC24, the ultimate control panel tailored for vMix live production software. Designed to meet the challenges of large-scale events, this solution empowers operators to manage complex productions with multiple cameras and inputs efficiently. In an industry where traditional computer interfaces can slow down critical operations, Switchblade VMC24 offers a tactile, familiar button layout that enhances precision and speed.

Addressing the demands of live broadcasting, Switchblade VMC24 comes loaded with a variety of features to streamline production. It integrates a PTZ joystick with presets for seamless camera control, a T-bar accompanied by Cut and Auto buttons for smooth transitions, and a comprehensive set of channels—24 dedicated preview/program channels with an additional 24 accessible via shift keys. With specialized sections for stream and record control, video playback, and a diverse array of function, mix, and shortcut buttons, it transforms the live production experience by enabling quick, efficient, and intuitive operation.

Engineered with professional production challenges in mind, Switchblade VMC24 minimizes the complexity of managing multiple inputs and overlays. Its robust design, featuring 6 mix control buttons, 16 function buttons, 12 transition shortcuts, and 4 DSK control layers, ensures that every aspect of your broadcast is at your fingertips. Whether connected via USB or powered by USB or 12V DC, this control panel delivers the reliability and performance that modern live productions demand, setting a new standard for operational excellence.

Features

• PTZ joystick and presets
• T-bar, Cut, Auto buttons for transitions
• 24 preview/program channels
• 24 preview/program channels for mixes
• Access an additional 24 channels via shift keys
• 6 mix control buttons
• 16 function buttons
• 12 transition shortcut buttons
• 4 DSK control layers
• stream & record control sections
• video playback control section
• Connection to the host PC by USB
• Powered by USB or 12V DC power input
