Large-Scale vMix Production Switcher for Live Events

24 channels of 3G-SDI or 6 channels of 12G-SDI in a compact, 4U frame

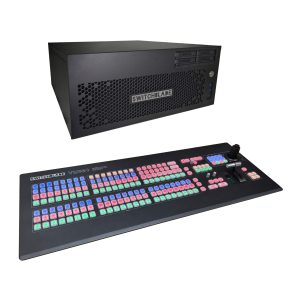

The Switchblade Systems LPU4 Elite 24 is a powerful and flexible live production platform for multi-camera switching, replay, graphics, recording, and streaming. Designed around vMix live production software, the LPU4 Elite 24 offers high-end processing, storage, and a multitude of video connection options to give you full access to all the features of vMix. And like all Switchblade products, the LPU4 Elite 24 is backed by amazing technical support and know-how to keep your broadcast running.

Key Features

• • Powered by vMix Pro software – Lifetime license included
  • 24x 3G-SDI bi-directional channels, up to 1060p60 per channel or 6x 12G-SDI channels, up to 2160p60 per channel
  • 4x DisplayPort outputs for a user interface monitor, plus up to 3 additional displays
  • Supports both SDI and IP inputs, including NDI, NDI|HX, RTMP, RTSP, and SRT
  • 4 SRT outputs
  • 4 NDI outputs
  • Stream to up to 3 destinations simultaneously
  • ISO recording on multiple channels
  • Two independent recording channels for program records and backup
  • 8 remote callers using vMix Call
  • Direct integration with Zoom
  • 8-channel replay and slow-motion
  • Titling software for animated text, graphics, scoreboards, and tickers
  • PTZ control
  • Playlist automation
  • Video lists of pre-recorded video files
  • Advance scripting for more control

Technical Specifications

• • Video I/O: 24x 3G-SDI bi-directional inputs/inputs (Micro-BNC – requires adapters to convert to full-sized BNC)

• • Audio I/O: 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line-out

• • Storage: 1TB NVMe Solid State Drive (system), 2TB NVMe Solid State Drive (recording/playback)

• • Processor: 24-core AMD Ryzen Threadripper 7960X

• • Memory: 64GB DDR5 RAM

• • Graphics: NVIDIA RTX A5000 with 24GB GDDR6 RAM

• • Network: 1x 10Gb/s Ethernet RJ-45 port, 1x 2.5Gb/s Ethernet RJ-45 port

• • Operating System: Windows 11 Pro

• • Dimensions: 16.89″ x 17.00″ x 6.96″ / 429mm x 432mm x 176.75mm

• • Weight: 40 lbs. / 18.1kg
