Switchblade LPU4 6-channel ST 2110 + 2-channel 3G-SDI SDI I/O Production Switcher with Bluefish444 Kronos Optikos ST IP and vMix Pro
$24,995.00
BUY NOWVideo Production Switcher with 6-Channel SMPTE 2110 and 2-Channel 3G-SDI
Support modern IP network video workflows with robust performance and unprecedented flexibility
As the broadcast industry continues its shift from traditional SDI infrastructure to IP-based workflows, the need for standardized, reliable transport of video, audio, and data over IP networks has become critical. While IP video transport has existed for years, it was the Society of Motion Picture and Television Engineers (SMPTE) that addressed the industry’s demand for interoperability by formalizing the SMPTE ST 2110 standard. This suite of standards defines how to transport professional media over IP networks in real time, enabling broadcasters to break free from the limitations of point-to-point SDI cabling and adopt more scalable, flexible, and cost-effective production environments.
At the same time, software-driven production systems have rapidly advanced, displacing traditional hardware-based switchers and processors. Among these, vMix has emerged as one of the most versatile and powerful software applications for live video mixing, graphics, replay, recording, and streaming.

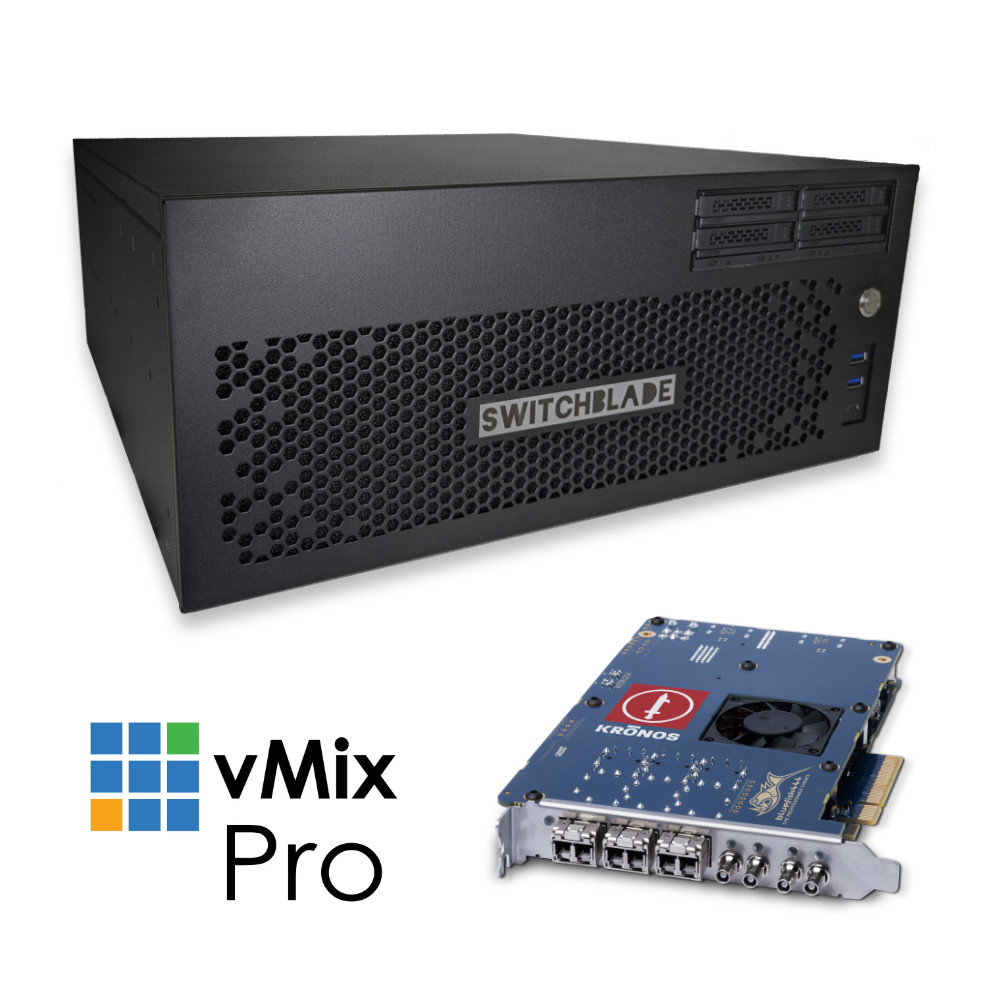

The Switchblade LPU4 for SMPTE 2110 bridges these two transformative trends by bringing the full capabilities of vMix into the IP broadcast domain. The LPU4 is a robust, all-in-one live production platform designed for professional multi-camera switching, real-time graphics, instant replay, ISO recording, and live streaming—all powered by vMix Pro software.
Built around the high-performance Bluefish444 Kronos Optikos ST IP video board, the LPU4 offers full support for SMPTE ST 2110 workflows, providing broadcasters with high-quality, low-latency IP video input and output. With powerful processing, generous storage, and seamless IP integration, the LPU4 empowers broadcasters to take advantage of next-generation IP infrastructure without sacrificing the flexibility and efficiency of software-based production.
Key Features
- Powered by vMix Pro software – Lifetime license included

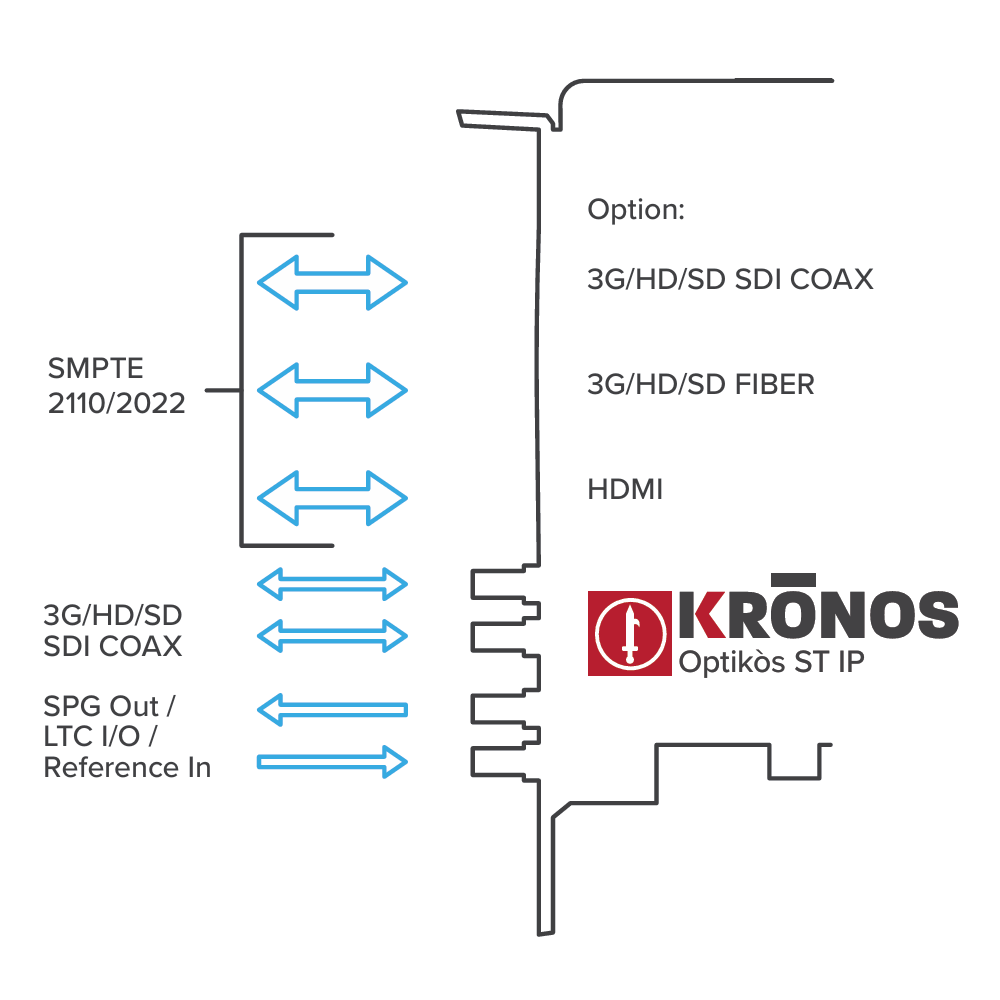

- Bluefish444 Kronos Optikos ST IP featuring 8x bi-directional input/output channels with ultra-low end-to-end latency
- 6 x SFP+ interfaces with support for ST2110-20/30/40 and ST2022-6/7 – 6 total IP video channels
- 2 x bi-directional 3G-SDI input and output channels
- 2 x LTC/ref input and output channels
- 4 x internal low-latency hardware keyers
- 1 x bypass relay
- 4 x DisplayPort outputs for a user interface monitor, plus up to 3 external displays
- Supports both SDI and IP inputs, including NDI, NDI|HX, RTMP, RTSP, and SRT
- 4 x SRT outputs
- 4 x NDI outputs
- Stream to up to 3 destinations simultaneously
- ISO recording on multiple channels
- Two independent recording channels for program records and backup
- 8 x remote callers with direct input support, including direct integration with Zoom
- 8 x replay and slow-motion channels
- Professional titling software for animated text, graphics, scoreboards, and tickers
- PTZ control
- Playlist automation
- Video lists of pre-recorded video files
- Advance scripting for more control
Technical Specifications
- Video Inputs / Outputs: 6 x SMPTE 2110 IP video input/output channels; 2x 3G-SDI input/output channels
- Digital Audio: 16 channels of embedded digital audio per video channel
- Analog Audio I/O: 1x 3.5mm line-in, 1x 3.5mm mic-in, 1x 3.5mm line-out
- Storage: 1TB NVMe Solid State Drive
- Processor: 20-core Intel Core i7-14700KF
- Graphics: NVIDIA RTX A4000 with 6,144 CUDA cores, 16GB GDDR6 RAM
- Network: 2x 2.5Gb/s Ethernet RJ-45 ports
- Operating System: Windows 11 Pro
- Dimensions: 16.89″ x 17.00″ x 6.96″ / 429mm x 432mm x 176.75mm
- Weight: 40 lbs. / 18.1kg
Weight | 42 lbs |
---|---|
Dimensions | 28 × 24 × 13 in |
Manufacturer Part Number | SWBS-LPU4-6ST2110-2SDI-VMP |
