Switchblade M9 Pro 4-channel SDI production platform

Professional-grade desktop for live broadcasting

Creating high-quality live events is now more accessible and cost-effective thanks to popular software-based switching applications. However, despite the lowered entry barrier, these applications still demand powerful hardware for optimal performance. Consumer PCs, unfortunately, are not built for live production.

Switchblade Systems has become the trusted name for broadcast-ready production systems, catering to a wide range of productions from high schools to national broadcasters. The M9 Pro production platform is engineered to deliver the perfect balance of performance, reliability, and flexibility for any broadcasting environment.

The M9 Pro comes out of the box with Windows 11 Pro, ready to support most popular live switching software programs, including:

StudioCoast vMix (meets the vMix “Ruby” Reference System specification)
Telestream Wirecast
Vizrt Viz Vectar
Vimo Livestream Studio
Open Broadcaster Software (OBS)

Technical Specifications

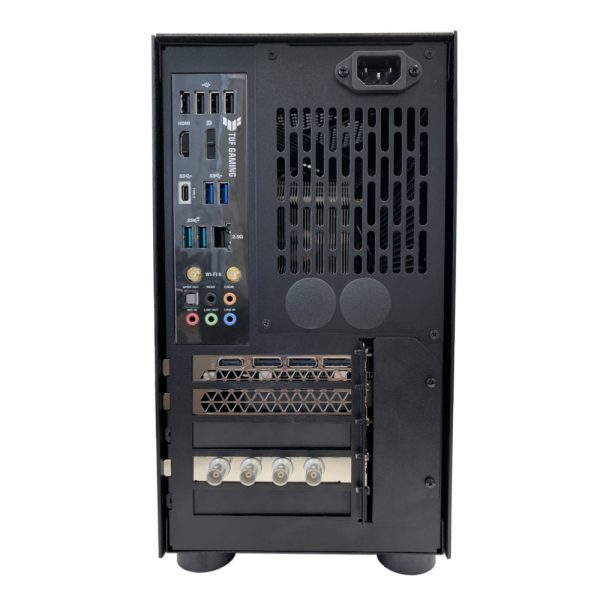

Video Inputs & Outputs: 4x Bi-Directional 3G-SDI inputs/outputs, 1x reference inputs
Processor: 16-core Intel Core i7-13700KF
System drive: 1TB NVMe PCIe Gen4 SSD
Memory: 32GB DDR5 RAM
Graphics: NVIDIA GeForce RTX 4060
Operating System: Windows 11 Pro
Network: 1x 2.5G Ethernet RJ-45 port, WiFi 6
Form-factor: Portable desktop
Dimensions: 12.57″ L x 6.78″ W x 14.09″ H
Weight: 19 lbs.
