Portable, All-In-One Live Production System, Compatible with vMix (“Ruby” Reference System), Telestream Wirecast, OBS, Vimeo Livestream Studio, and Vizrt TriCaster Mini-S/Viz Vectar. Integrated 17.3″ Full HD Monitor, 8x Bi-Directional 3G-SDI inputs/outputs, 2x Reference inputs. System Specs: 12-core Intel Core i7-12700KF processor, 32GB DDR5 RAM, 1TB SSD, NVIDIA GeForce RTX 4060 GPU, Dual 2.5G Ethernet, Windows 11 Pro, 2x removable 2.5″ SATA SSD Bays, USB keyboard/mouse, Padded carrying case

Switchblade Turbo – Portable Production System with Integrated Monitor

All-in-one 8-channel SDI live switching and graphics platform

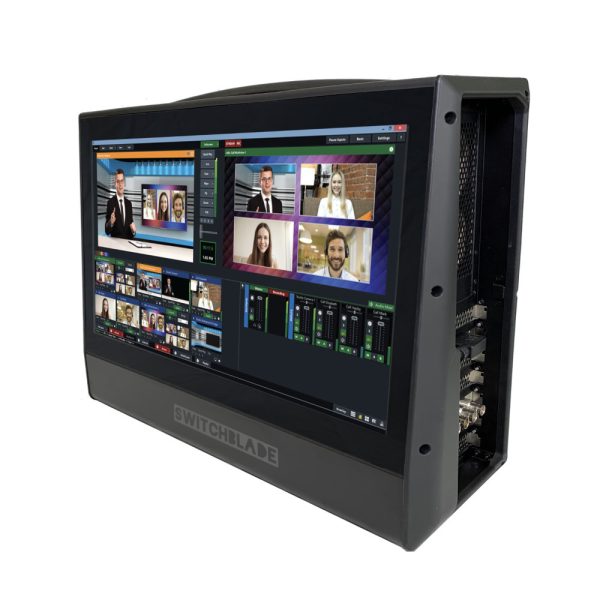

The Switchblade Turbo is the ultimate “grab and go” solution for mobile video production. By elegantly combining a computer-based switching engine with a 17-inch 1080p monitor, the Turbo consolidates two of the bulkiest pieces of production gear into a single, portable device. Simply turn it on, plug in your camera inputs, and fire up your favorite live production software, such as vMix, Wirecast, Livestream Studio, OBS, or Vizrt Viz Vectar.

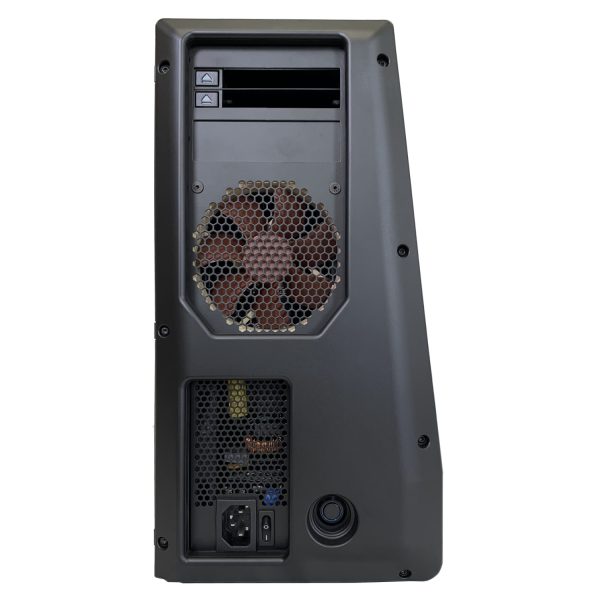

Despite its small size, no corners have been cut in designing the Turbo’s hardware specs. The rugged-yet-lightweight ABS and aluminum chassis encloses a fully-powered workstation, complete with a top-end Intel Core i7 processor, 32GB of DDR5 memory, a speedy 1TB PCI Express SSD, an NVIDIA GeForce RTX 4060 graphics card, dual 2.5G Ethernet connections, and two hot-swappable 2.5″ SSD bays.

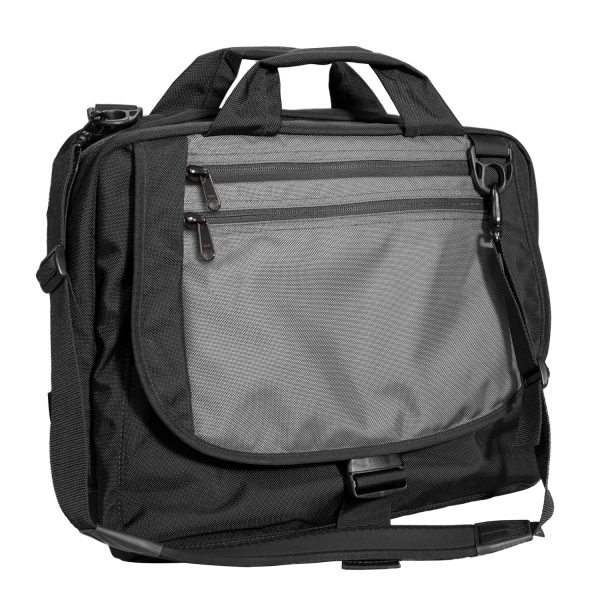

To get you from place to place, the system includes a padded carrying case with plenty of room for the included keyboard, mouse, and your miscellaneous cables and accessories. A weatherproof, IP65 rated rugged hard case is also available for an additional cost.

The Switchblade Turbo comes out of the box with Windows 11 Pro, ready to support most popular live switching software programs, including:

StudioCoast vMix (meets the vMix “Ruby” Reference System specification)
Telestream Wirecast
Vizrt Viz Vectar
Vimo Livestream Studio
Open Broadcaster Software

Technical Specifications

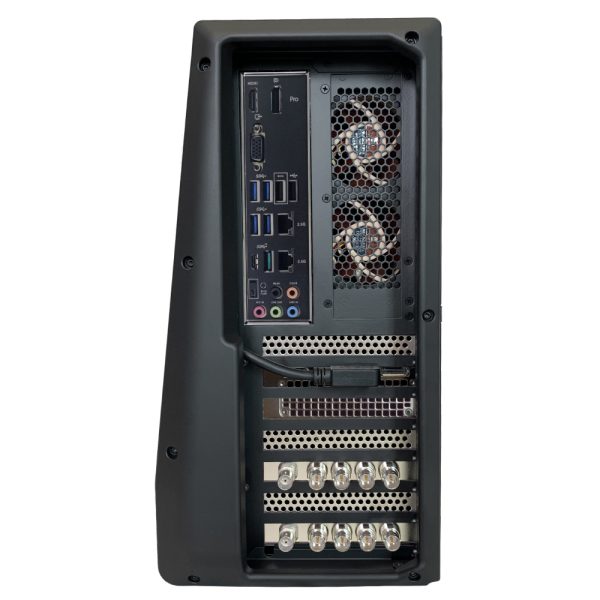

Video Inputs & Outputs: 8x Bi-directional 3G-SDI inputs/outputs, 2x Reference inputs
Processor: 12-core Intel Core i7-12700KF
System drive: 1TB NVMe PCIe Gen4 SSD
Memory: 32GB DDR5 RAM
Graphics: NVIDIA GeForce RTX 4060
Display: Integrated 17-inch 1920×1080, 60Hz with protective plexiglass
Operating System: Windows 11 Pro
Network: 2x 2.5G Ethernet RJ-45 ports
Form-factor: All-in
Dimensions: 6.67” (169.41mm) D x 16.75” (425.45mm) W x 13.69” (347.73mm) H
Weight: 25 lbs. (11.34 kg)
