The MS XL was built to satisfy the need for user configurable curves, and changeable length, with one simple system.
The track segments have an axis distance of 15 centimeters, so you can configure any length on this basis. Tracks can be made either straight or curved, or from straight into any curve, configurable within minutes.
The patented XL system is three times as wide as the MS PRO or MS SWIFT and comes with a strong BLDC motor for a high load capacity, whisper silent, and smooth movements. The XL Motion controller offers IP, DMX and Bluetooth connectivity.
HIGHLY PORTABLE AND QUICK SETUP
The modular system of the MS XL allows an easy transport and quick setup. The track can be divided into small segments that are connected with screws and the rails can be rolled up for transport.
PERFECT STABILITY
Each segment of the MS XL has a 3/8″-16 mounting port on the bottom for tripod mounting to ensure highest stability while the carriage is moving. Mounting port distance is 15 cm.
XL MOTION CONTROLLER
The XL Motion Controller with IP, DMX and Bluetooth connectivity allows integration into any system. Joystick or pedal control in combination with our HMI unit or PHOENIX controller.

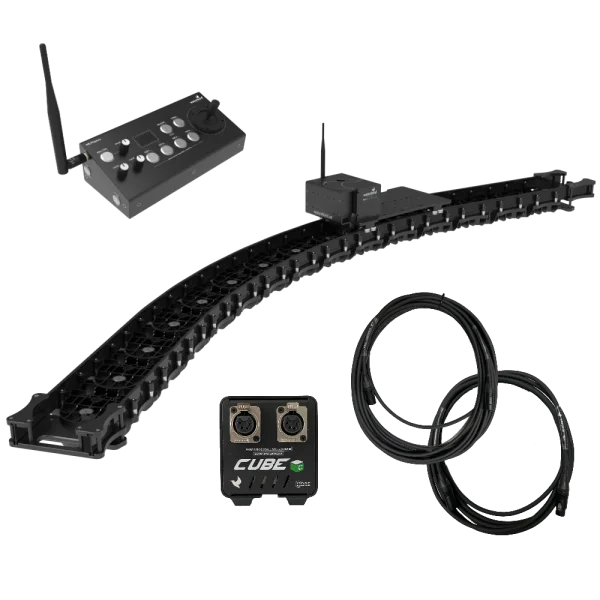

The MS XL 200cm Wired Bundle includes the following components:
- 200xm track and rails (WB-MSXL200)
- PHOENIX RF wireless joystick controller (WB-Phoenix-RF)
- CORE Cube-24 24V 200W power supply (WB-PSU24)

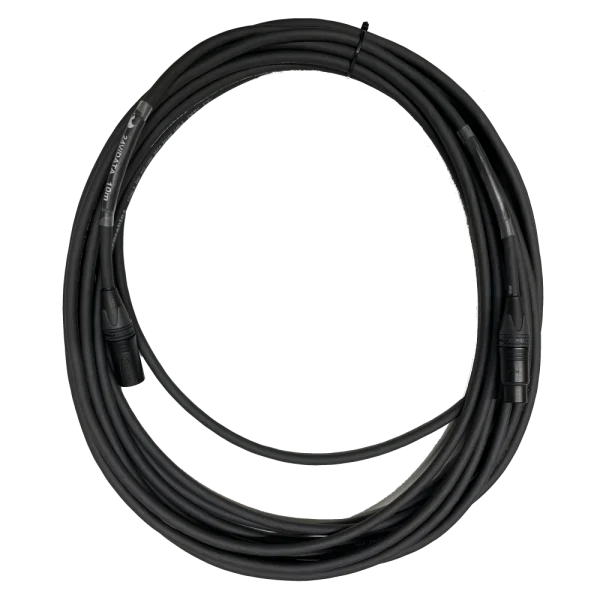

- 10m power/data cable (WB-POW-DATA-C-10)

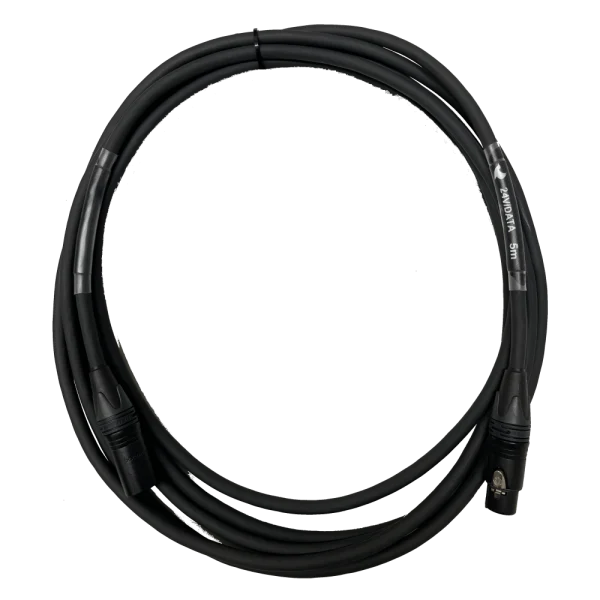

- 5m power/data cable (WB-POW-DATA-C-5)
