Yuan SC710N1 12G-SDI – Multi-format SDI PCI Express video capture card

$650.00

BUY NOW

Single-channel 12G-SDI capture card with multi-channel 6G-SDI and 3G-SDI modes

Compare
Add to wishlist
SKU: SC710N1-12G-SDI Categories: SDI Capture Cards, Video Capture & Playback, YUAN Brand: YUAN High-Tech
Share:
  • Description
  • Additional information
  • Brand
  • Reviews (0)
Description

Flexible Single-Channel 12G-SDI Capture Card with Multi-channel 4x 3G-SDI and 2x 6G-SDI Modes

The SC710N1 12G-SDI is a versatile multi-format video capture card for SDI broadcast sources in a half-length, full-height PCI Express x4 form-factor.

With its four (4) full-sized BNC connectors the SC710N1 12G-SDI can operate in both single-channel mode or multi-channel mode. In single-channel mode the card supports single SDI input using either single-link 12-SDI, dual-link 6G-SDI, or quad-link 3G-SDI in either 2SI or QSD formats.

In multi-channel model the same card can be utilized for capture multiple video sources simultaneously at up to 4 channels of 3G-SDI or 2 channels of 6G-SDI signals

Technical Specifications

Main

Max. Input Resolution 4096×2160p@60/50fps
Video Input 1×12G-SDI, 2×6G-SDI, 4×3G-SDI

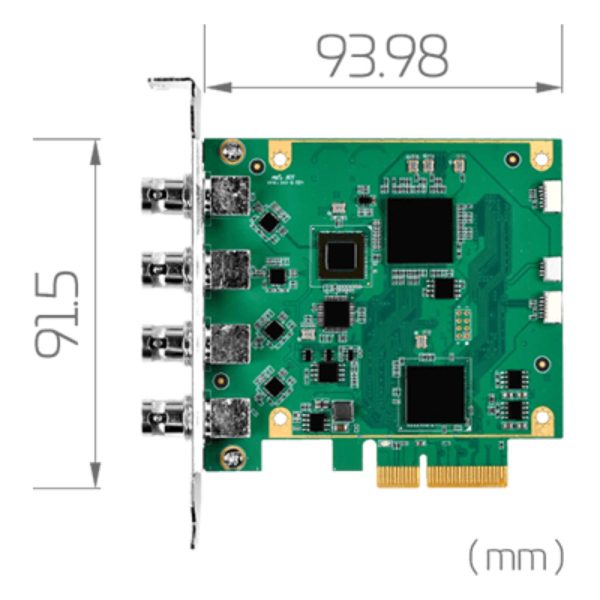

Dimension 93.98×91.5 ( mm )
PCIe Full Height
Interface PCIe×4 ( Gen2 )
Feature 4K60 Dual-Link 6G-SDI
4K60 Quad-Link 3G-SDI
Multi Instances
Multi Devices

Video

Video Input Detail Single-Link 12G-SDI
Dual-Link 6G-SDI
Quad-Link 2SI 3G-SDI
Quad-Link QSD 3G-SDI
Video Output N/A
Color Format Capture/Preview :
4:4:4 8Bit RGB24
4:4:4 8Bit RGB32
4:2:2 8Bit YUY2
4:2:0 8Bit YV12, NV12
4:2:0 10Bit P010
Build-in Hardware Encode N/A
Video Processing Video, Audio and VANC Capture
Video Cropping and Scaling
Auto Signal Detection
Deinterlace Engine
Multi Instances
Video Resolutions Single Channel Mode :
Single Link/Dual Link/Quad Link
12G-SDI :
4096×2160@60/50fps
3840×2160@60/50fps
6G-SDI :
4096×2160@30/25/24fps
3840×2160@30/25/24fps
3G-SDI :
1920×1080p@60/50fps
HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI :
720×480i@60fps
720×576i@50fpsMulti Channel Mode :
Single Link
2×6G-SDI :
4096×2160@30/25/24fps
3840×2160@30/25/24fps
4×3G-SDI :
1920×1080p@60/50fps
4×HD-SDI :
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
4×SD-SDI :
720×480i@60fps
720×576i@50fps

Audio

Audio Input 4×Stereo Embedded Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz

Misc

GPIO 16
WatchDog N/A

Software

Supported Software Applications vMix
OBS
ZOOM
Skype
Teams
Discord
Slack
Cisco Webex
GoToMeeting※DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10
Linux 4.8 or Higher ( 32-bit and 64-bit )
Linux ARM
nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
Additional information
Weight 2 lbs
Dimensions 10 × 7 × 3 in
Manufacturer Part Number SC710N1-12G-SDI
