Description
Flexible 4K Video Capture
Ingest a single channel of 4K 60fps video with either HDMI2.0 or 12G-SDI into you software application of choice

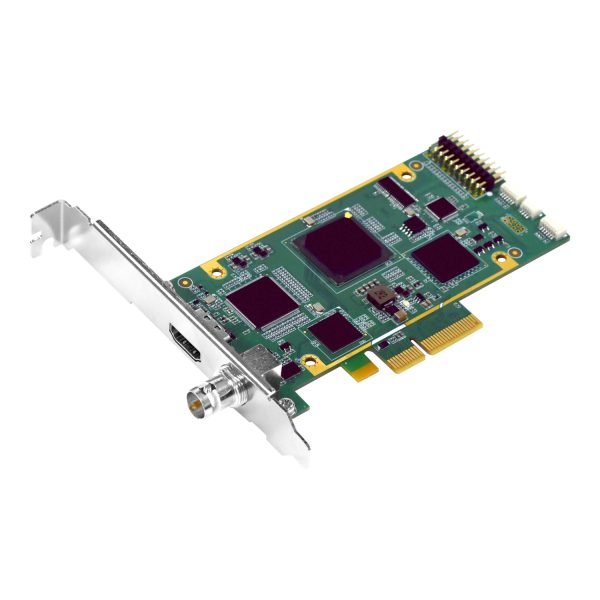

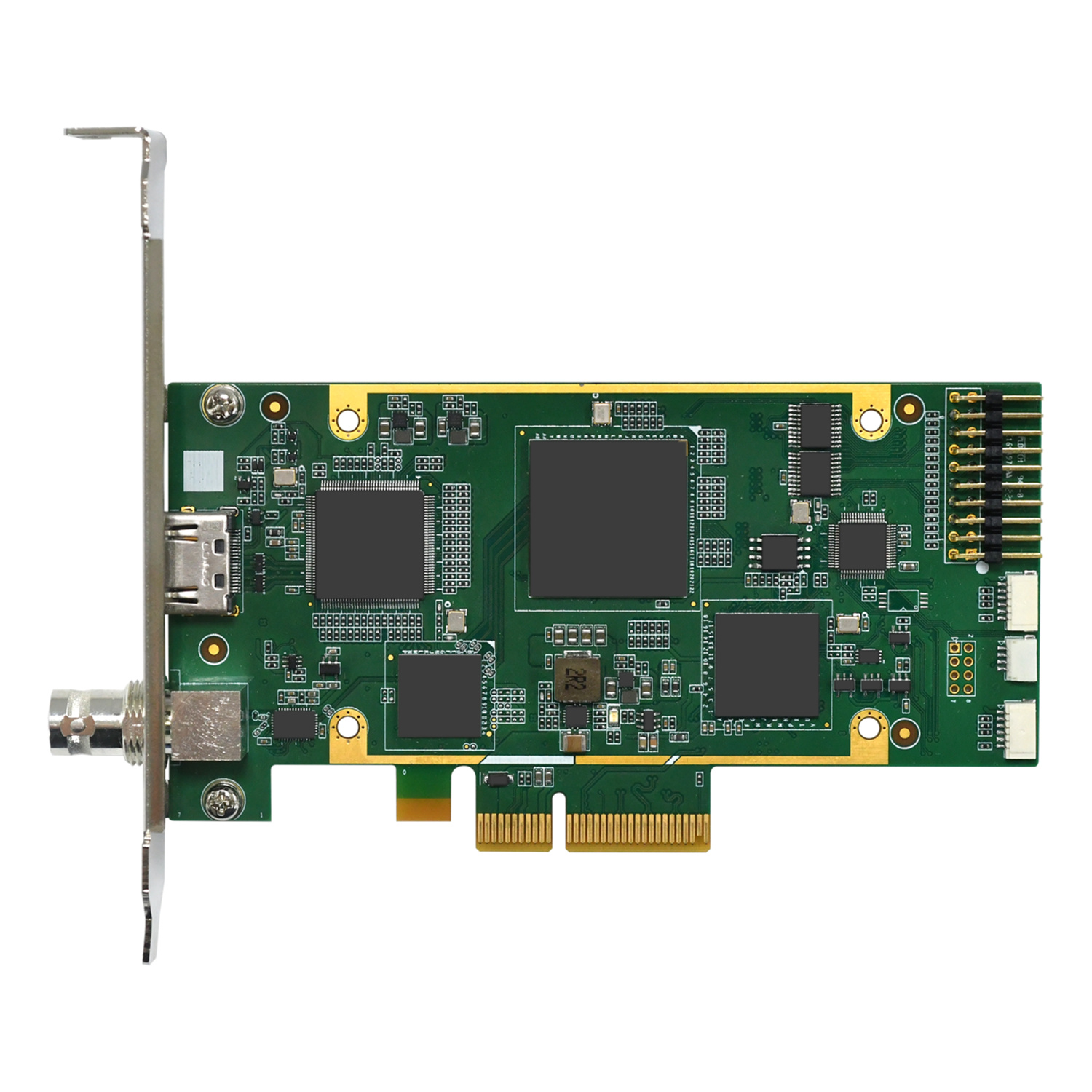

The Yuan SC710N1-L 12G-SDI / HDMI 2.0 makes capturing and recording high-resolution 4K video into software applications easy and painless. This low-profile PCI Express board has both consumer-friendly HDMI 2.0 and professional 12G-SDI connections, which ensures that you’re connecting up to the best possible signal source for your application. It also saves space and money by not having to purchase and install two different types of capture cards in the same system.
Technical Specifications
General
| Max. Input Resolution | 4096×2160p@60/50fps |
| Video Inputs | 1×12G-SDI, 1×HDMI 2.0 |
| Dimensions | 126.96×68.9 ( mm ) PCIe Low Profile |
| Interface | PCIe×4 ( Gen2 ) |
| Features | HDR10/HLG HDR Tone Mapping HDMI 1.4B 3D Multi Instances Multi Devices |
Video Format Support
| Video Input Detail | Single-Link HDMI 2.0 Single-Link 12G-SDI |
| Video Output | N/A |
| Color Format | Capture/Preview : 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Build-in Hardware Encode | N/A |
| Video Processing | Video, Audio and VANC Capture Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Video Resolutions | 12G-SDI : 4096×2160@60/50fps 3840×2160@60/50fps 6G-SDI : 4096×2160@30/25/24fps 3840×2160@30/25/24fps 3G-SDI : 1920×1080p@60/50fps HD-SDI : 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps SD-SDI : 720×480i@60fps 720×576i@50fpsHDMI2.0 : 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps※More resolution supported by SDK |
Audio Specifications
| Audio Input | 2×Stereo Embedded Audio (12G-SDI+HDMI2.0) |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
Other
| GPIO | 16 |
| WatchDog | N/A |
| Supported Software Applications | vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting※DirectShow/V4L2 Compatable Software Supported |
| SDK | Windows and Linux SDK |
| OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 10 × 7 × 3 in |
